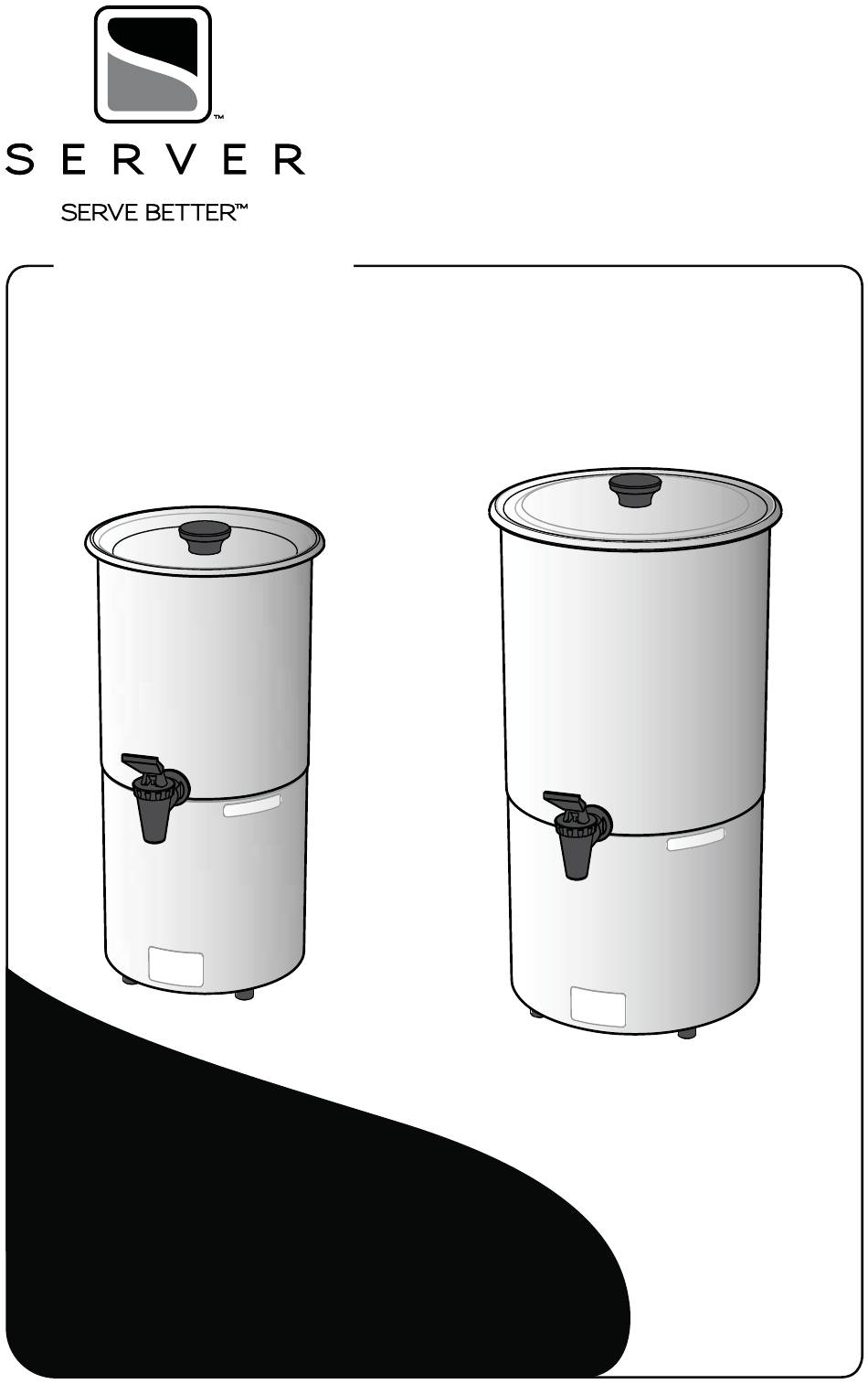

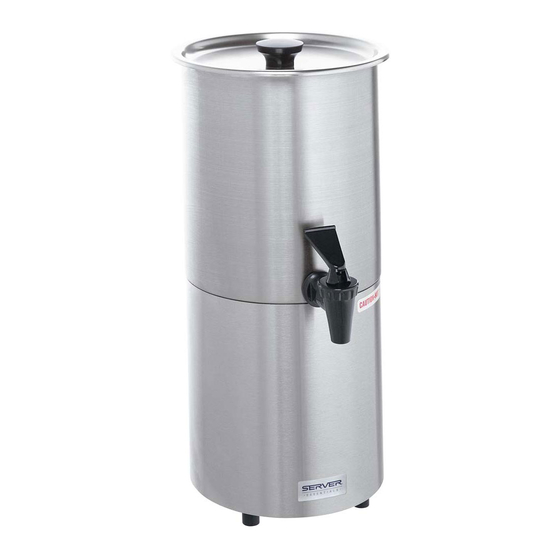

- Page 1 Syrup Server MODEL: SY MODEL: SY 1.5 84190 UNIT 85480 UNIT 3 GALLON SERVER 1½ GALLON SERVER Thank You ...for purchasing this Syrup Server to heat and neatly dispense sticky syrups and sauces. WARM & SERVE SYRUP—SIMPLY!
- Page 2 PARTS LID ASSEMBLY KNOB for 1½ gallon unit: 85473 82023-000 for 3 gallon unit: 84199 85488 RUBBER WASHER HEATING ELEMENT FAUCET KIT 84217 for 1½ gallon unit: 85487 85484 (includes 85488 nut) for 3 gallon unit: 05256 MOUNTING BRACKET 84198 SNAP-IN ROCKER THERMOSTAT...
-
Page 3: Faucet Assembly
WASH ALL PARTS PROPERLY FAUCET ASSEMBLY BEFORE EVERY USE. See page 6. INSERT CUP SEAT into faucet. INSTALL TOP onto faucet. TIP: Lubricate threads with a small amount of clean water. ROTATE TOP CLOCKWISE to secure. INSTALL WASHER onto threaded shank of faucet. IMPORTANT: •... -
Page 4: Unit Setup
WASH ALL PARTS PROPERLY UNIT SETUP BEFORE EVERY USE. See page 6. See page 4 for FAUCET ASSEMBLY INSTALL FAUCET into hole. Attach nut to faucet from inside vessel. • Round side of washer seals inside hole. • Tighten nut until snug. •... - Page 5 UNIT TAKE-DOWN PRESS SWITCH to the “OFF” position. UNPLUG CORD CAUTION- HOT Allow unit to cool before continuing or use proper care with hot surfaces. REMOVE LID EMPTY ANY REMAINING PRODUCT from vessel. REMOVE FAUCET Unscrew nut from inside vessel. DISASSEMBLE FAUCET Take apart all four pieces.
-
Page 6: Care Of Stainless Steel
Be aware of the product you are serving and the temperature the product is required to maintain. Server Products, Inc. can not be responsible for the serving of potentially hazardous product. CLEANING WARNING- ELECTRICAL SHOCK COULD OCCUR •... -
Page 7: Temperature Setting
WIRING UNITS 85480 & 84190 | 120V | USA BLACK WHITE GREEN Cord Assembly Wire Assembly Snap-In Rocker Switch Heating Element Thermal Cut-Out Bushing, Strain Relief Thermostat TEMPERATURE SETTING Thermostat is preset at 140 ºF Temperature setting is adjustable in 20 ºF increments from 80 ºF—180 ºF.* To change setting: ADJUST THERMOSTAT LOCK... -
Page 8: Troubleshooting
SERVER PRODUCTS GENERAL SERVICE, LIMITED WARRANTY REPAIR OR RETURNS Before sending any item to Server Products for service, repair, or return, contact Server Products customer service to request a Return Authorization Number. Merchandise must be sent to Server Products with this number.
