1.6 URP TP808 Printer Door Assembly Instructions
1.

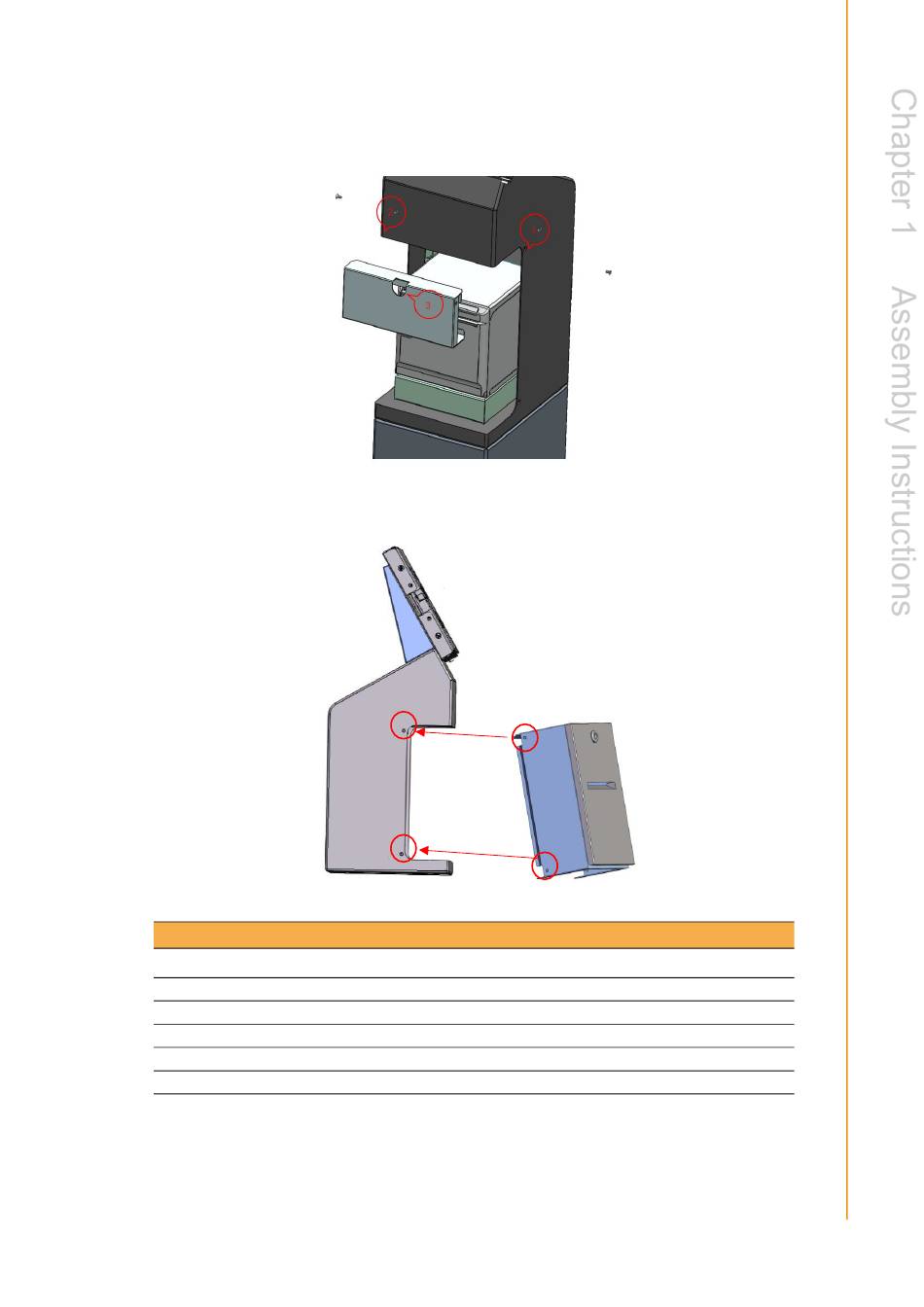

Remove 2 screws (M3*6L), then remove the top cover.
2.
Attach TP808 Printer Door to desktop using 4 screws (M3*6L).
Table 1.6: URP TP808 Printer Door Assembly Instructions
Item
Part Number
1
19Z0002911N001
2
19Z0002914N001
3
1960114990N000
4
19Z0002915N001
5
1931030620
Description
bottom Plate U for UTK-7000 Powder
Printer Case U for UTK-7000 Powder
wire saddle Bracket for UTK-7000
Printer door Cover U for UTK-7000 Powder
Screw M3*6L S/S D=6 H=1.5 + ST BLK
11
Qty
1
1
1
1
4
