2.

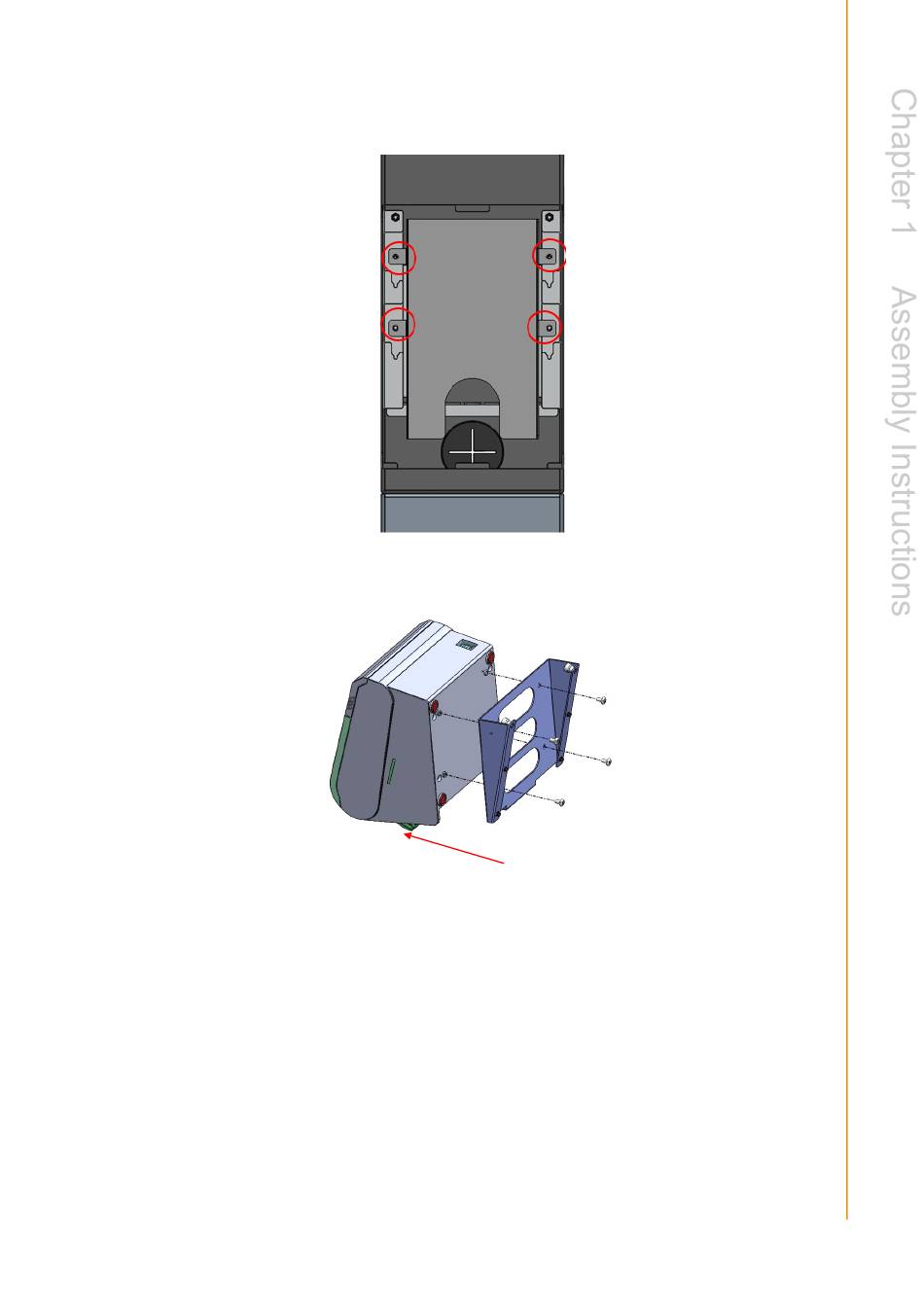

First, Route needed cables from USC\UTC Series through desktop. (Refer to
page 13), and then the wire-saddle is locked with 4 screws (M3*6L)
3.
Attach TP805 printer to TP805 bracket using 4 screws (T3*8L).
7
UTK-7000 Quick Start Guide
