- Page 1 SDS-(G)3010/SDS-(G)3016 Series Quick Installation Guide Moxa’s Industrial Smart Ethernet Switch Version 2.0, September 2024 Technical Support Contact Information www.moxa.com/support 2024 Moxa Inc. All rights reserved. P/N: 1802030160012 *1802030160012*...
-
Page 2: Package Checklist

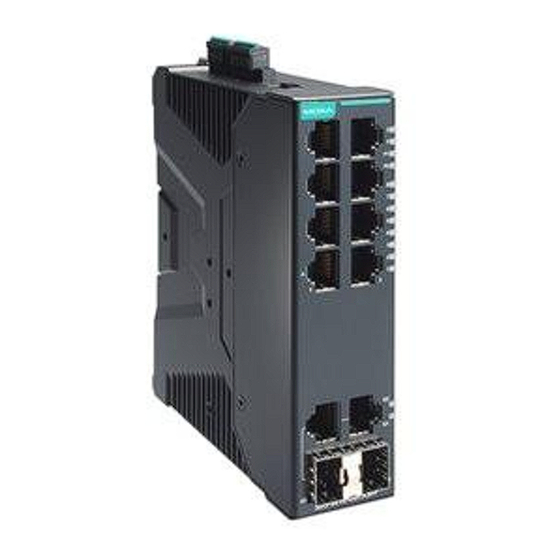

Overview The SDS-(G)3000 industrial smart Ethernet switch is the ideal device for IA engineers and automation machine builders to make their networks compatible with the vision of Industry 4.0. By breathing life into machines and control cabinets, the smart switch simplifies daily tasks with its easy configuration and installation. - Page 3 SDS-(G)3010/(G)3016 Panel Layout Front Panel 1. 10/100/1000BaseT(X) ports 2. 10/100BaseT(X) ports 3. 100/1000BaseSFP ports 4. 10/100/1000BaseT(X) or 10/100BaseSFP combo ports 5. System LEDs: STATE (S), FAULT (F), PWR1 (P1), PWR2 (P2) 6. Port LEDs 7. Model name - 3 -...
- Page 4 1. 10/100/1000BaseT(X) ports 2. 10/100BaseT(X) ports 3. System LEDs: STATE (S), FAULT (F), PWR1 (P1), PWR2 (P2) 4. Port LEDs 5. Model name Top Panel 1. Ground connector screw 2. Terminal blocks for power input, digital input, and relay output 3.
- Page 5 Side Panel 1. DIN-rail mounting kit 2. Screw hole (used for sideways DIN-rail mounting options) Bottom Panel 1. Rotary DIP switch for EtherNet/IP, PROFINET, Modbus/TCP, and DHCP Client configurations - 5 -...
-
Page 6: Mounting Dimensions
Mounting Dimensions SDS-(G)3010-2GTXSFP Models - 6 -... - Page 7 SDS-(G)3016/SDS-3016-2GTX Models - 7 -...
-
Page 8: Din Rail Mounting
SDS-(G)3016-2GSFP Models DIN-rail Mounting The SDS-(G)3000 Series supports two options for DIN-rail mounting. ATTENTION In order to ensure reliable operations, please make sure the operating temperature of the environment does not exceed the specification. When mounting the SDS-(G)3000 Series with other operating units in a cabinet without forced ventilation, a minimum spacing of 5 cm on both sides and above/below the switch is recommended. -
Page 9: Installation
Installation STEP 1—Insert the DIN rail into the upper lip of the DIN- rail kit. STEP 2—Press the SDS- (G)3000 towards the DIN rail until it snaps into place. Removal STEP 1—Pull down the latch on the DIN-rail mounting kit with a screwdriver. -
Page 10: Wall Mounting (Optional)
STEP 2—Insert DIN-rail into the upper lip of the DIN-rail kit. STEP 3—Press the SDS-(G)3000 towards the DIN rail until it snaps into place. Removal STEP 1—Pull down the latch on the DIN-rail mounting kit with a screwdriver. STEPS 2—Slightly pull the SDS- (G)3000 backwards. - Page 11 ATTENTION In order to ensure reliable operations, please make sure the operating temperature of the environment does not exceed the specification. When mounting the SDS-(G)3000 Series with other operating units in a cabinet without forced ventilation, a minimum spacing of 5 cm on both sides and above/below the switch is recommended.
-
Page 12: Wiring Requirements
Removal STEP 1—Pull down the latch on the DIN-rail mounting kit with a screwdriver. STEP 2—Slightly pull the SDS-(G)3000 backwards. STEP 3—Lift the device up to remove it from the wall-mounting kit. Wiring Requirements ATTENTION Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa Industrial Smart Ethernet Switch. -
Page 13: Wiring The Relay Contact
Suggested Wire Type for Wiring Relay Contact (R), Digital Input (DI), and Power Inputs (P1/P2) The switch includes two 4-pin 3.5 mm pin-pitch terminal blocks. When wiring the relay contact (R), digital input (DI) and power inputs (P1/P2) for the SDS-(G)3000 Series, we suggest using the cable type AWG (American Wire Gauge) 18 to 24 and the corresponding pin type cable terminals. - Page 14 Refer to the instructions and diagram below on how to connect the wires to the terminal block connector, and how to attach the terminal block connector to the terminal block receptor. STEP 1—Insert two wires into the relay position (see the diagram below showing the top view) on the terminal.
-
Page 15: Wiring The Redundant Power Inputs
Refer to the instructions and diagram (top view) below on how to connect the wires to the terminal block connector, and how to attach the terminal block connector to the terminal block receptor. STEP 1: Insert the negative (ground)/positive DI wires into the respective ┴/I terminals. -
Page 16: Communication Connections
ATTENTION Only use a certified power supply with SELV output or a certified power supply that provides double insulation in accordance with one of the following standards: • UL 60950-1 • UL 62368-1 • UL 61010-1 and UL 61010-2-201 The assembler of the system is responsible for the safety of the system incorporating the SDS-3000/G3000 Series. - Page 17 NOTE ABC-02-USB Installation Plug the ABC-02-USB into the USB storage port of the SDS-(G)3000 Series. We suggest securing the ABC-02-USB on the wall with an M4 screw. 10/100BaseT(X) Ethernet Port Connections The 10/100BaseT(X) ports located on the front panel of the switch are used to connect to Ethernet-enabled devices.
- Page 18 10/100/1000BaseT(X) Ethernet Port Connections 1000BaseT(X) data is transmitted on differential TRD+/- signal pairs over copper wires. MDI Port Pinouts 8-pin RJ45 Signal TRD(0)+ TRD(0)- TRD(1)+ TRD(2)+ TRD(2)- TRD(1)- TRD(3)+ TRD(3)- RJ45 (8-pin) to RJ45 (8-pin) Straight-through Cable Wiring RJ45 (8-pin) to RJ45 (8-pin) Cross-over Cable Wiring 100/1000BaseSFP Port Connections The fiber ports on the switch are 100/1000BaseSFP fiber ports, which require using 100M or 1G mini-GBIC fiber transceivers to work...
-
Page 19: Rotary Dip Switch
Consequently, one of the optical lines is used to transmit data from device A to device B, and the other optical line is used transmit data from device B to device A, for full-duplex transmission. Remember to connect the Tx (transmit) port of device A to the Rx (receive) port of device B, and the Rx (receive) port of device A to the Tx (transmit) port of device B. -
Page 20: Reset Button
No function enabled via DIP switch (default) PROFINET profile enabled PROFINET profile and DHCP Client enabled EtherNet/IP profile enabled EtherNet/IP profile and DHCP Client enabled Modbus TCP profile enabled Modbus TCP profile and DHCP client enabled Reserved (currently performs the same behavior as indicator 0) Reset Button The reset button can perform two functions. - Page 21 Color Status Description FAULT 1. The relay contact has been triggered. 2. Invalid port connection. 3. Failed to load from or save to the ABC-02. Blinking 1. RAM test failed. 2. Firmware checksum failed. 3. Decompression failed. PWR1 Amber Power is being supplied to the PWR1 input.
-
Page 22: Specifications
Color Status Description Blinking When the port’s data is being transmitted at 1000 Mbps. When the port is inactive or link down. 100M Amber When the port is active and links at 100 Mbps. Blinking When the port’s data is being transmitted at 100 Mbps. - Page 23 Button Reset button Power Requirements Input Voltage 12 to 48 VDC, redundant dual inputs Operating Voltage 9.6 to 60 VDC Input Current SDS-(G)3010-2GTXSFP models: 0.98 A (max.) SDS-(G)3016 models: 1.08 A (max.) SDS-G3016-2GTX models: 1.08 A (max.) SDS-(G)3016-2GSFP models: 1.29 A (max.) Overload Current Supported Protection...
- Page 24 Details See www.moxa.com/warranty ATTENTION This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received including interference that may cause undesired operation. WARNING: HOT SURFACE External metal parts of this equipment are hot!! Before touching the equipment, you must take special...
