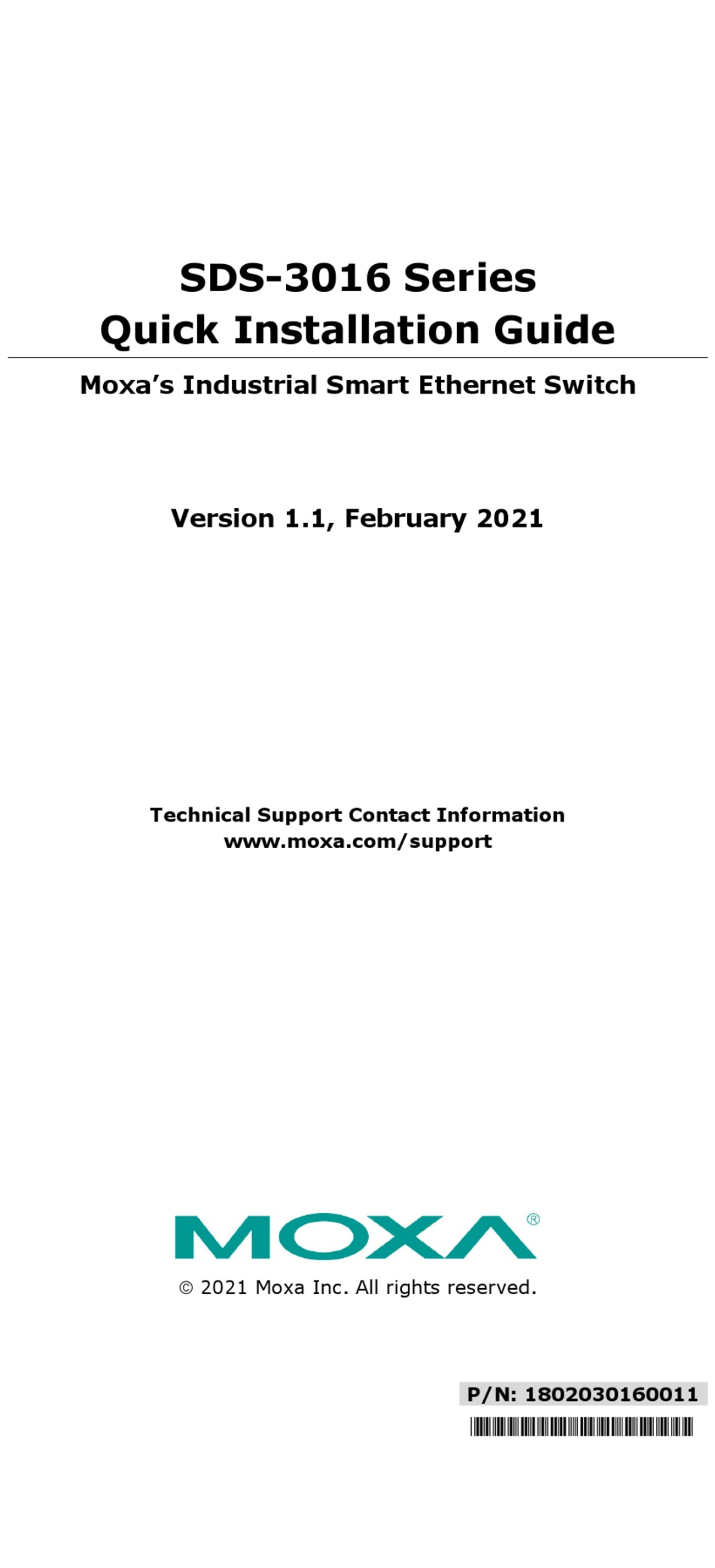

SDS-3016 Series
Quick Installation Guide
Moxa's Industrial Smart Ethernet Switch
Version 1.1, February 2021
Technical Support Contact Information
www.moxa.com/support
 2021 Moxa Inc. All rights reserved.
P/N: 1802030160011
*1802030160011*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDS-3016 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Moxa Technologies SDS-3016 Series

  • Page 1 SDS-3016 Series Quick Installation Guide Moxa’s Industrial Smart Ethernet Switch Version 1.1, February 2021 Technical Support Contact Information www.moxa.com/support  2021 Moxa Inc. All rights reserved. P/N: 1802030160011 *1802030160011*...
  • Page 2: Package Checklist

    Overview The SDS-3016 industrial smart Ethernet switch is the ideal device for IA engineers and automation machine builders to make their networks compatible with the vision of Industry 4.0. By breathing life into machines and control cabinets, the smart switch simplifies daily tasks with its easy configuration and easy installation.
  • Page 3: Default Settings

    Default Settings • Default IP address: 192.168.127.253 • Default Subnet Mask: 255.255.255.0 • Default Usernames: admin, user • Default Password: moxa SDS-3016 Panel Layout 1. 2 10/100/1000BaseT(X) or 100/1000BaseSFP uplink port 1 to 14 10/100BaseT(X) ports (bottom to top) 2. System status LEDs (top to bottom) STATE LED indicator (Green), FAULT LED indicator (Red), PWR1 LED indicator (Amber), PWR2 LED indicator (Amber) 3.
  • Page 4 5. Model name 6. Latch of the DIN-rail mounting kit 7. Grounding screw (chassis ground) 8. Two 4-pin terminals for power inputs (P1/P2), relay output (R) and digital input (DI) 9. Reset button 10. USB storage port (type A connector) 11.
  • Page 5: Din-Rail Mounting

    DIN-Rail Mounting There are 2 options for DIN-rail mounting that can be adopted on a SDS-3016. Option 1 is the default type when shipped. Option 1 (Default): When shipped, the metal DIN-rail mounting kit is fixed to the back panel of the SDS-3016.
  • Page 6 Suggested Installation Method STEP 1—Detach the metal DIN-rail mounting kit from the back panel and attach it to the side panel (mold side) in either the horizontal or vertical direction as indicated in the figure below. STEP 2—Insert the upper lip of the DIN-rail kit into the mounting rail.
  • Page 7: Wiring Requirements

    ATTENTION In order to ensure reliable operations, please make sure the operating temp. of the environment does not exceed the spec. When mounting a SDS-3016 with other operating units in a cabinet without forced ventilation, minimum spacing of 3cm on both sides and above/below the switch is recommended.
  • Page 8: Wiring The Relay Contact

    Suggested Wire Type for Wiring Relay Contact (R), Digital Input (DI) and Power Inputs (P1/P2) The switch includes two 4-pins 3.5 mm pin-pitch terminal blocks. When wiring the relay contact (R), digital input (DI) and power inputs (P1/P2) for the SDS-3016. ATTENTION We suggest using a copper conductor with the cable type - AWG (American Wire Gauge) 18-24 and the corresponding pin type...
  • Page 9 STEP 1—Insert two wires into the relay position (see the diagram below showing the top view) on the terminal to form an open circuit. STEP 2—To keep the relay wires from coming loose, use a small flathead screwdriver to press the button beside each terminal of the plastic terminal block connector in order to insert the wire tightly.
  • Page 10 Wiring the Digital Input The SDS-3016 has one set of digital inputs (DI). The DI consist of two contacts of the second 4-pin terminal block on the SDS-3016’s top panel, and the other 2 contacts are used for the power 2 (P2) DC inputs. Refer to the instructions and diagram (top view) below on how to connect the wires to the terminal block connector, and how to attach the terminal block connector to the terminal block receptor.
  • Page 11: Communication Connections

    Communication Connections Each SDS-3016 smart Ethernet switch has three types of communication ports: • 1 USB storage port (type A connector) • 14 10/100BaseT(X) Fast Ethernet ports • 2 10/100/1000BaseT(X) or 2 100/1000BaseSFP Gigabit USB Storage Connection The SDS-3016 has one USB storage port (type A connector; see the diagram below for pinout assignments) on the front panel.
  • Page 12 RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring 10/100/1000BaseT(X) Ethernet Port Connection The 10/100/1000BaseT(X) ports located on the front panel of Moxa’s Switch are used to connect to Ethernet-enabled devices. Most users will choose to configure these ports for Auto MDI/MDI-X mode, in which case the port’s pinouts are adjusted automatically depending on the type of Ethernet cable used (straight-through or cross-over), and the type of...
  • Page 13 RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring 100/1000Base-X Fiber Port The Fiber ports on the SDS-3016 Series are SFP type slots, which support both 100Base-FX and 1000Base-X speeds. Moxa provides complete transceiver models for various distance requirements.
  • Page 14: Reset Button

    ATTENTION This is a Class 1 Laser/LED product. To avoid causing serious damage to your eyes, do not stare directly into the Laser Beam. Rotary DIP Switch The SDS-3016 switches are classified as smart Ethernet switches. The rotary DIP switches located on the bottom panel of SDS-3016 facilitate one-step configuration to enable Industrial Protocol and DHCP client in only a few seconds without having to use a web browser.
  • Page 15: Led Indicators

    Configuration and Log Files Back Up When the ABC-02-USB is connected to the industrial smart Ethernet switch, the reset button allows for a quick back up of configuration and event logs to the ABC-02-USB. Press the reset button on top of the SDS-3016 in order for the industrial smart Ethernet switch to start backing up the current system configuration files and event logs to the ABC-02-USB.
  • Page 16 Color Status Description STATE + STATE: Green Blinking Smart switch is being FAULT FAULT: Red discovered/located by the Switch Locator at the Web GUI or by MXview or MXview ToGo (LEDs blinking twice per second). Per 10/100/1000 Mbps Copper Port LED 1000M Green Solid Light...
  • Page 17: Specifications

    Specifications Technology Standards IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service Software Features Management...
  • Page 18 Physical Characteristics Housing Metal Dimension (W x H x D) 36 x 135 x 111 mm (1.42 x 5.32 x 4.37 in) Weight 590 g (1.30 lb) Installation DIN rail mounting Environmental Limits Operating Temperature Standard Models: -10 to 60°C (14 to 140°F) Wide Temp.
  • Page 19 ATTENTION This product is for indoor use and meets the Pollution Degree 2 requirements. If the device needs to be cleaned it should be wiped with a dry cloth. The device must be installed within a suitable, secure, final enclosure. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
