BlueWave

AX-550 Flood Lamp Mounting Stand Kit (43410)

Unpacking and Setup Instructions

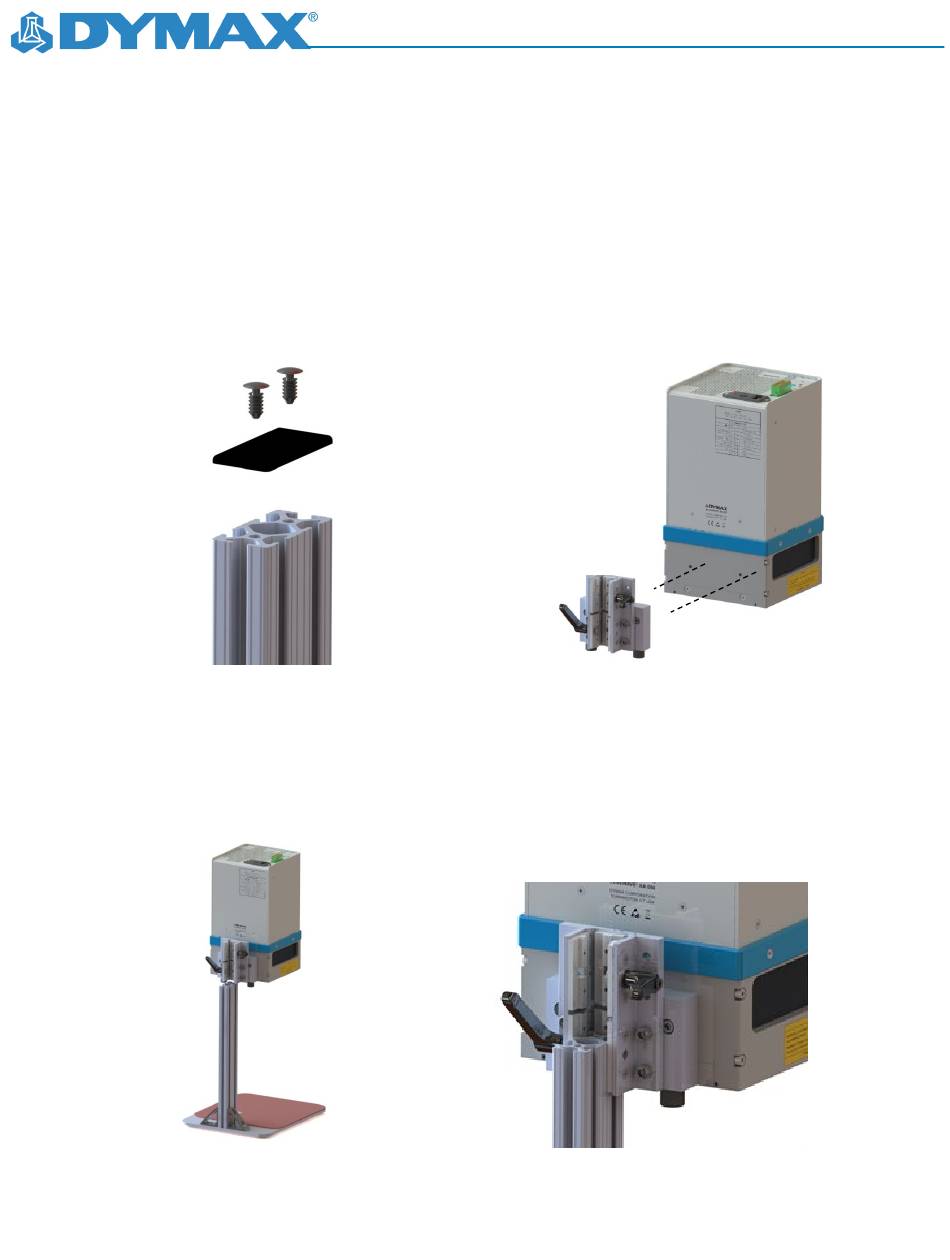

1. Remove the stand and carriage from the packaging.

2. Remove the cap and 2 fasteners from the stand's upright. These are push-in fasteners, not screws, and can

easily be removed by pushing upward on the plate (Figure 1).

Fasteners (2X)

Cap

Stand's Upright

Figure 2. Attach the Carriage

Figure 1. Remove Cap and Fasteners

3. Using a 4-mm hex key, attach the carriage to the emitter using the screws supplied with the carriage. (Figure 2)

4. Slide the carriage onto the stand upright, being sure to align bearing pads and t-nut into slot (Figure 3).

Figure 3. Slide Carriage into Stand
