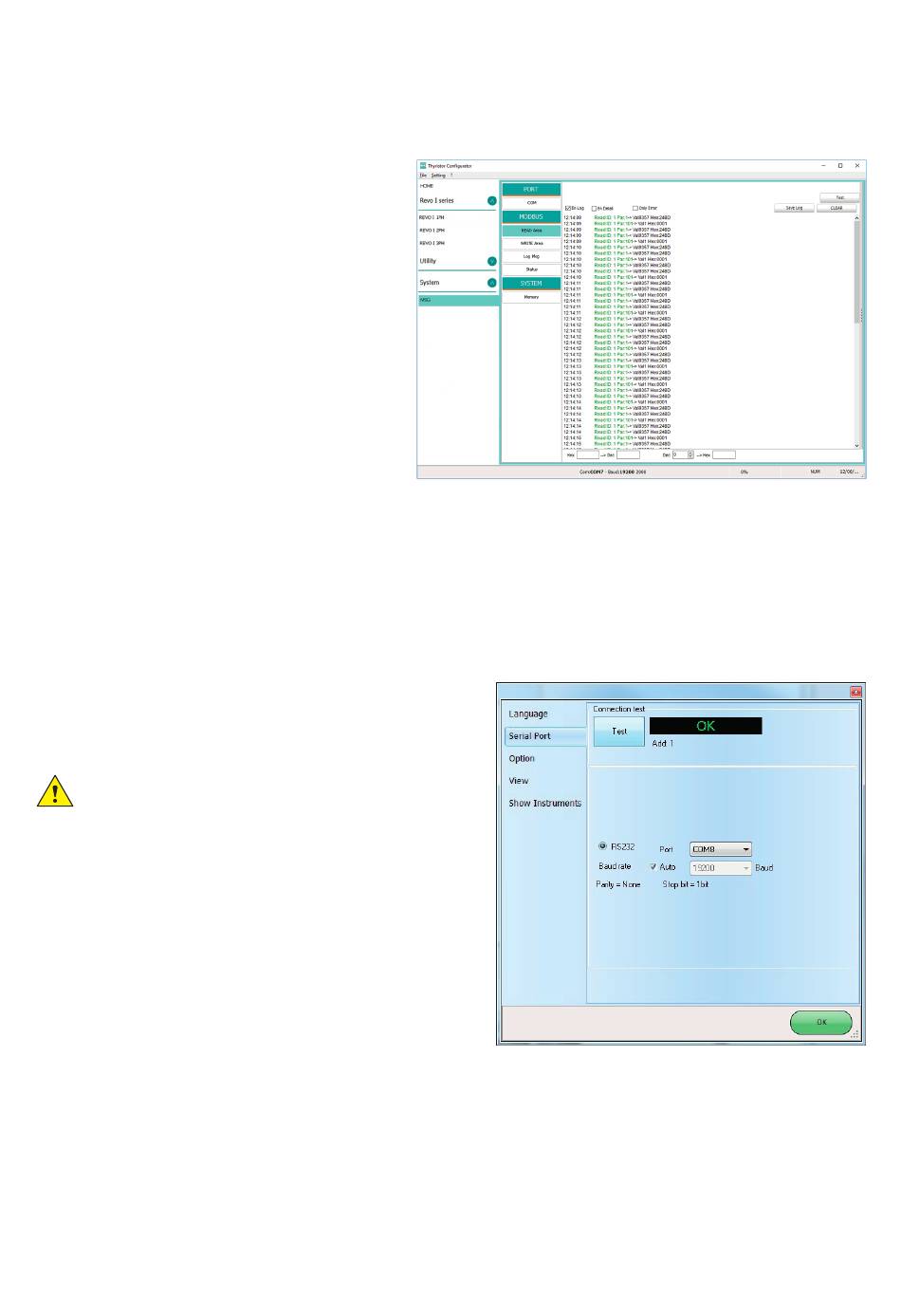

9.6.7 MSG view
Message view display the communication activity between the computer and the power controller.
PORT
COM: use this view to see when the COM port
is accessed and its settings
MODBUS: Modbus communication protocol area
READ Area: use this view to see parameters
being polled
READ Area -> En
communication log activity
Detail: if En Log enabled
READ Area -> En
enable a detailed read communication log
activity
READ Area -> Only
enable a read communication log activity
only if in error
WRITE Area: use this view to see what
parameters and the value are send power
control
READ Area -> En Log: enable a write communication log activity
Msg: use this view to see the "Data Log" protocol detail when Data Log windows is active
Log
Status: view the status and settings of the COM port
SYSTEM
Memory: view the memory usage of the Configurator program on the computer
9.6.8 Settings window
Use this window to choose user-settable options for the
Configurator software.
Language:
Languages: choose the language used in the
Available
program
NOTE! to be active the language change, need close
and open again the configuration software
Serial Port: Set the serial port parameter
Test: click to test for communication with a power
controller via the selected port
Port: select the computer's COM port to use to
communicate with power controllers
Baud rate: select Auto to allow the Configurator to set
the baud rate for the COM port or deselect the option to
set the baud rate yourself
Options: Set the configurator options
List Options: set whether or not parameter values are
displayed in hexadecimal in simple view recipes
Directory: set the directories in which recipes and images
are saved
Disable Check Type: set to allow communication with power controllers that are not precise matches for
the supported types. Used only for special version. Note that set is not memorized after software shutdown
View:
Hide Tool Bar: future use
Hide Status Bar: select to hide the status bar that appears at the bottom of the program window
Show Instruments: Hide or show the available instrument in the left side of main windows.
Log: enable a short read
Error: if En Log enabled
