9.6.3 Test Section
This section is used to monitor and adjust the operation
of the power controller in real time using RS485 or USB
communication port.
After select the model, is possible access to this section
clicking the "TEST" tab below the main menu.
Operating on TEST Section:
Online
button: is the button to start or stop
communication updates with the power controller
After communication start a green communication
status indicator sweeps clockwise when the software
is communicating right with a power controller, is the
connection link is broken the color will become red
Address: value used to set the power controller
address
Access Level:
click the value to log in or out. Default Password address is "1111".

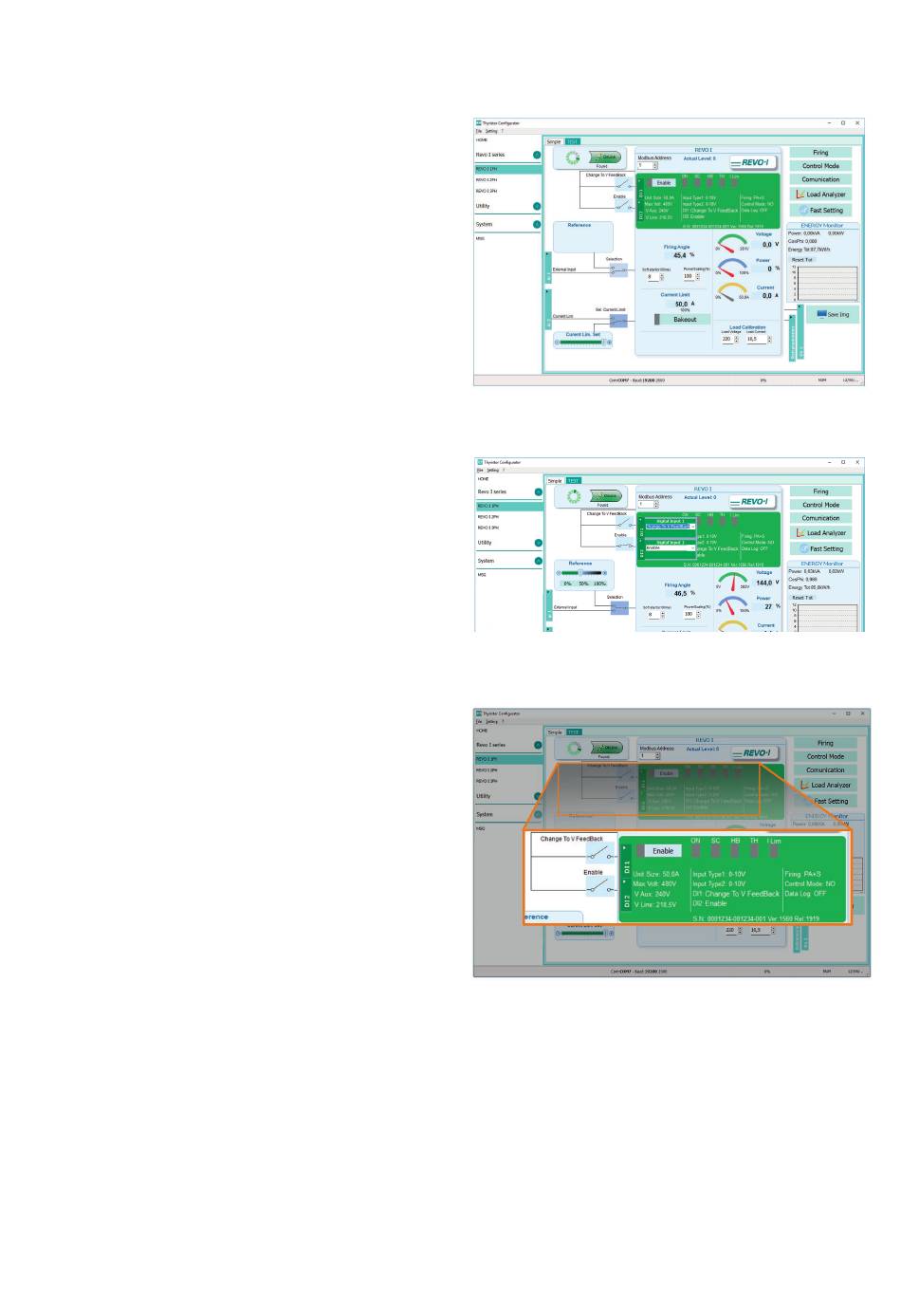

To configure and monitor the digital inputs:
Digital input states and functions:
show whether each input detects an open or closed
circuit and the function the input performs.
Digital Input States and Function Selectors:
set the function for each digital input. Click DI1 or DI2 to
expand the options.
Status and Setup Indicators:
Digital input
status: light on when the input is a a
closed circuit
Enable
indicator: light on when the power controller is enabled
Enable/Disable button:
controller if a digital input is not configured for this
function
ON
indicator: light on when there is demand for the
output to be on
indicator: light on when there is a shorted SCR
SC
alarm active
indicator: light on when there is a heater break
HB
alarm active
TH
indicator: light on when the heat sink over
temperature alarm is active
I Lim
indicator: light on when the load current
exceeds the current limit setting
Unit
Size: Indicate the maximum rated current of the
power controller
Max
Volt: indicate the maximum rated voltage for the
power controller
V
Aux: indicate the voltage the auxiliary input is set to use for powering the electronics
Input
Type1: indicate the signal analog input 1's type
Type2: indicate the signal analog input 2's type
Input
DI1: indicate digital input 1's function
DI2: indicate digital input 2's function
Firing: indicate the firing type the power controller is set to use
Feedback: indicate the feedback type the power controller is set to use
Log: indicate the Data Log status.
Data
click on to enable the power
