CD Automation REVO I 2PH User Manual page 39

REVO I
2PH from 100A to 700A

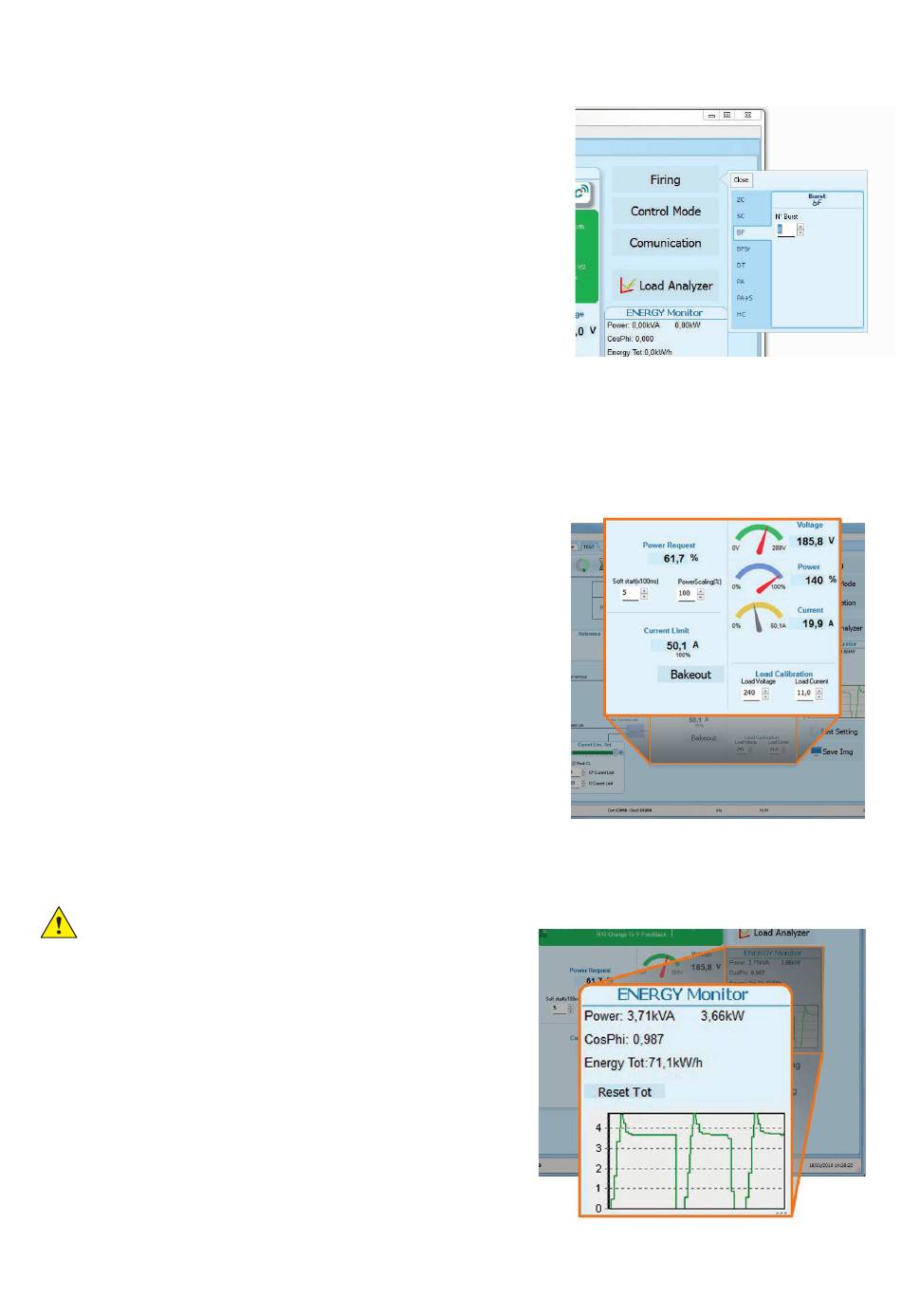

Buttons setup options:
Firing: view and set the firing type and the associated parameters
Feedback: view and set feedback type
Communication: view and set communication options for ports,
protocols and fieldbus
Configure and monitor the analog inputs:
Analog Input 1: click Ai 1 to view the signal type
Input Local/Remote selection
(remote) or the slider (local) to set the set point.
Reference: drag the slider, click the increment (+) or decrement (-) buttons or click one of the three
percentages (0%, 50% or 100%) to set the set point when the set point source is set to local.
2: click Ai 2 to view the signal type and function
Analog Input
To configure and monitor the power controller:
Power Request: show the set point signal from analog input 1.
The value is a percent of full scale or can be set with the reference
slider
Soft Start Time: show the time over which set point changes are
ramped
Output Scaling: show the scaling applied to the set point signal
before it is used by the control loop
Voltage indicator: show RMS load voltage
indicator: show RMS load power
Power
Current indicator: show the RMS load current
Current Limit Set: indicates the current limit set point
Bakeout button: click to view and set the heater bake out feature
options
Load Calibration: set and view the nominal line voltage and
nominal load current settings for the application.
NOTE! The Load Calibration settings, Load Voltage and
Load Current define 100% power for the load.
Energy Monitor: indicates power, power factor and energy
usage over time which may be reset with the Reset Tot button.
Data Log: If present is used to configure the data logging
feature data logs.
Image: click to save a JPEG file with an image of the test
Save
Page.
button: click to toggle between using the signal received at analog input 1
39
User's manual
