REVO I
2PH from 100A to 700A

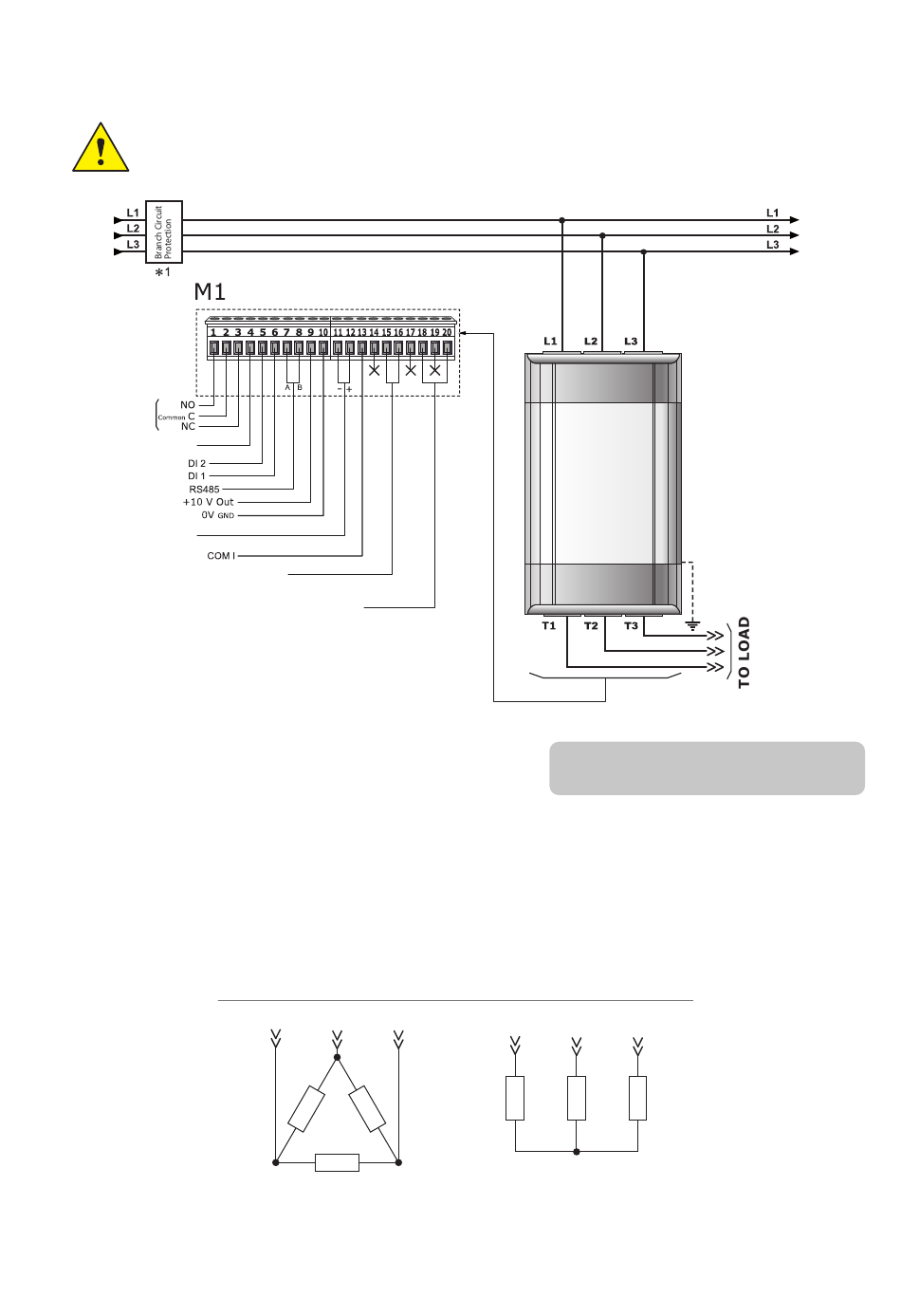

8.8 Connection Diagram for 3 phases

Caution: this procedure must be performed only by qualified persons.
Relay
Thermal or
SC/HB
Analog Inp.2
0-10VDC /4-20mA
Reference
Ext.FeedBack
Analog Inp.1
0-10VDC /4-20mA
ANALOG SET POINT
Fan Power Supply
See Order Code for the value
X = not connected
1 The user installation must be protecting by electromagnetic circuit breaker or by fuse isolator.
*
The Fuse must be branch circuit protection. For UL any listed UL branch circuit fuse would be acceptable
as an external fuse, following national electric code guide for resistive heating of 125% load current rating to
protect external wires.
AUX Voltage Supply
See Order Code for the value
T1 T2 T3
Delta
Note: Aux Voltage and Load Voltage
must be synchronized
Load Type
T1 T2
Star
30
User's manual
T3
