CD Automation REVO I 2PH User Manual page 32

REVO I
2PH from 100A to 700A
Procedure to communicate with a power controller:
1) if used direct USB connection:
- Connect the USB cable between the
computer and the micro USB connector
on the power controller's keypad
- if necessary, wait for the USB driver to
install.
2) if used RS-485 connection connect the
power controller terminal to computer
RS485 port. Usually the standard pc do
not have a RS485 port so a USB-to-485
converter is required.

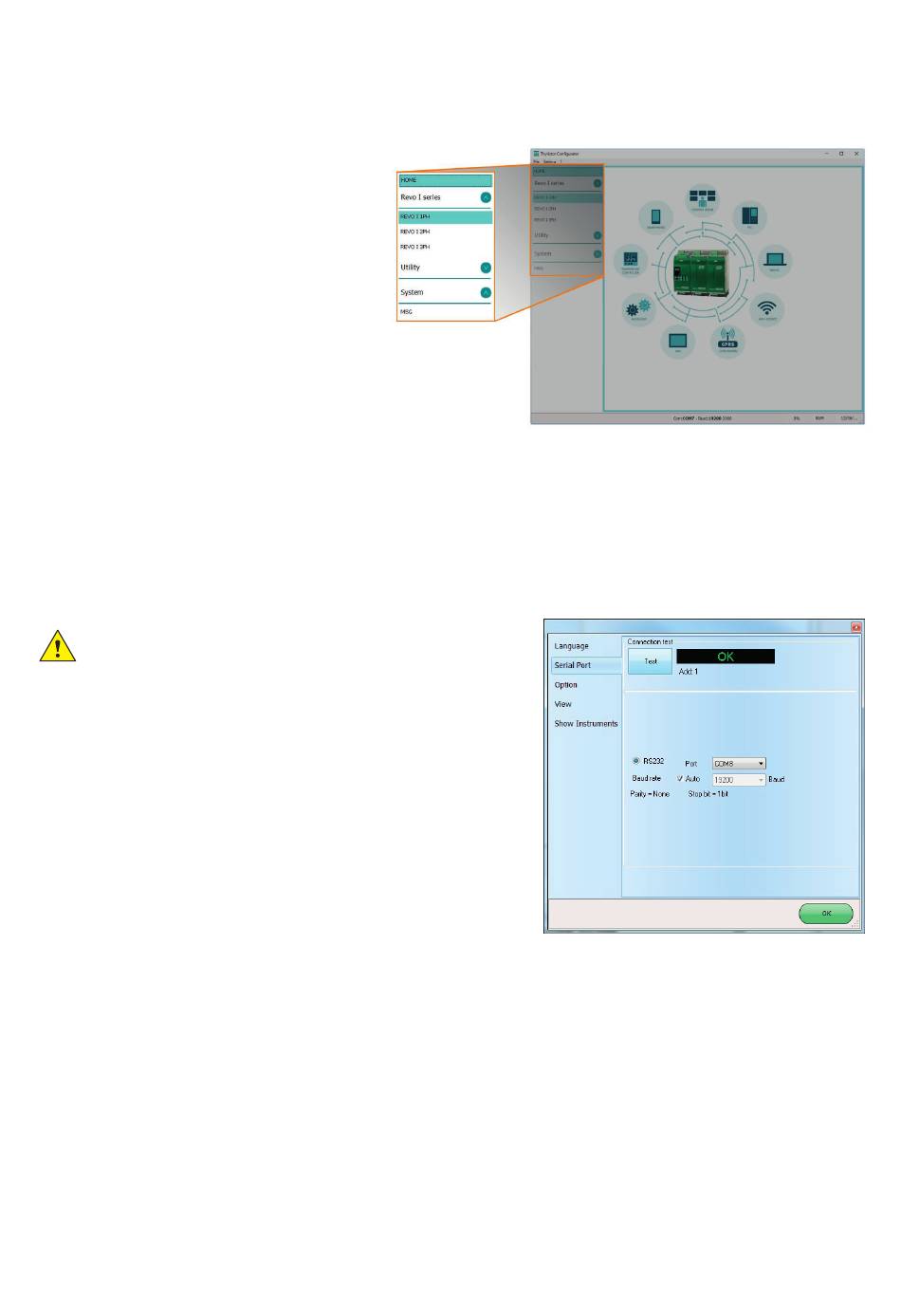

3) Launch the Configurator software an
select
- for single phase
REVO C:
- REVO C 2PH: for 2 phase power
controller
- REVO C 3PH: for 3 phase power
controller
4) Choose Serial Port
5) In value Port, select the connected COM port to the power controller (see the note below)
6) To verify communications, click
7) Click OK
NOTE! to determine which port is connected to the power
controller, you can:
•
in the Windows¨ Device Manager under Ports (COM & LPT),
looking for the COM port named "LPC USB VCOM Port (COMx)"
where x is the port number
•
On configurator software:
- open the software without connect the unit and see the
available COM port on COM port window setting,
- close the COM setting window,
- connect the USB cable to the power controller (wait for the
USB driver to install if necessary),
- open the COM setting window and see the added COM
number and select it.
From the Setting -> Serial Port
Test
menu
32
User's manual
