REVO I
2PH from 100A to 700A

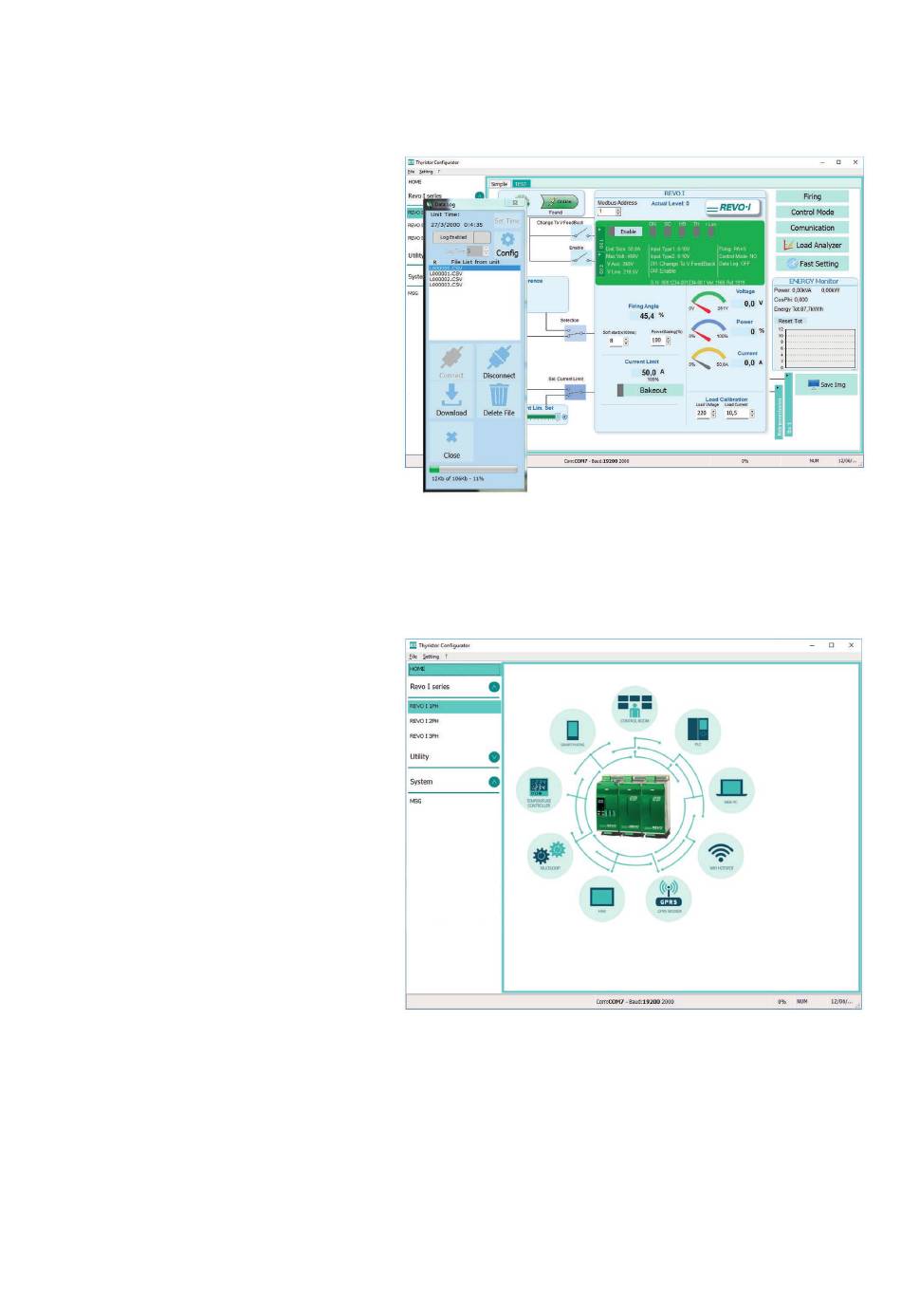

9.5.10 To retrieve a data log file from the power controller:
1) Click Test, if not already on the test view
2) Click
Online
3) Click Load Analyzer
4) Click Connect
5) Select a file from the list
6) Click Download
7) Select a location and click
8) Wait for the file to download. This can take
up to ten minutes for the largest file
9) To delete the log file from the controller
memory, if desired, click
10) Click Disconnect
11) Close the Data Log
12) Close the Load Analyzer

9.6 Software General information

Here it is described the Configurator Software and how use it.
9.6.1 Program Window
Main Menu
Access these menus.
File menu
Exit: close the program
Setting menu
Language: open language Settings dialog
box
Port: open Serial Port dialog box
Serial
Option: open General Option dialog box
? (Help) menu
Message Log: open a serial
communication message view
About: displays the About dialog with the
program name and version and contact
information
Instruments selector
Select the right instrument to use:
HOME: the default view
REVO-C: open the Simple and Test views for a single-phase power controller
REVO-C 3PH: access the Simple and Test views for a three-phase power controller
MSG: opens a serial communication message view
Status Bar
Indicates information such as time and date, communications port and baud rate.
Save
Delete File
window
window
