9.5.8 To reset the power totals:
1) Click Test, if not already on the test view
2) Click
Online
3) Click
Reset Totals
4) Click
Yes

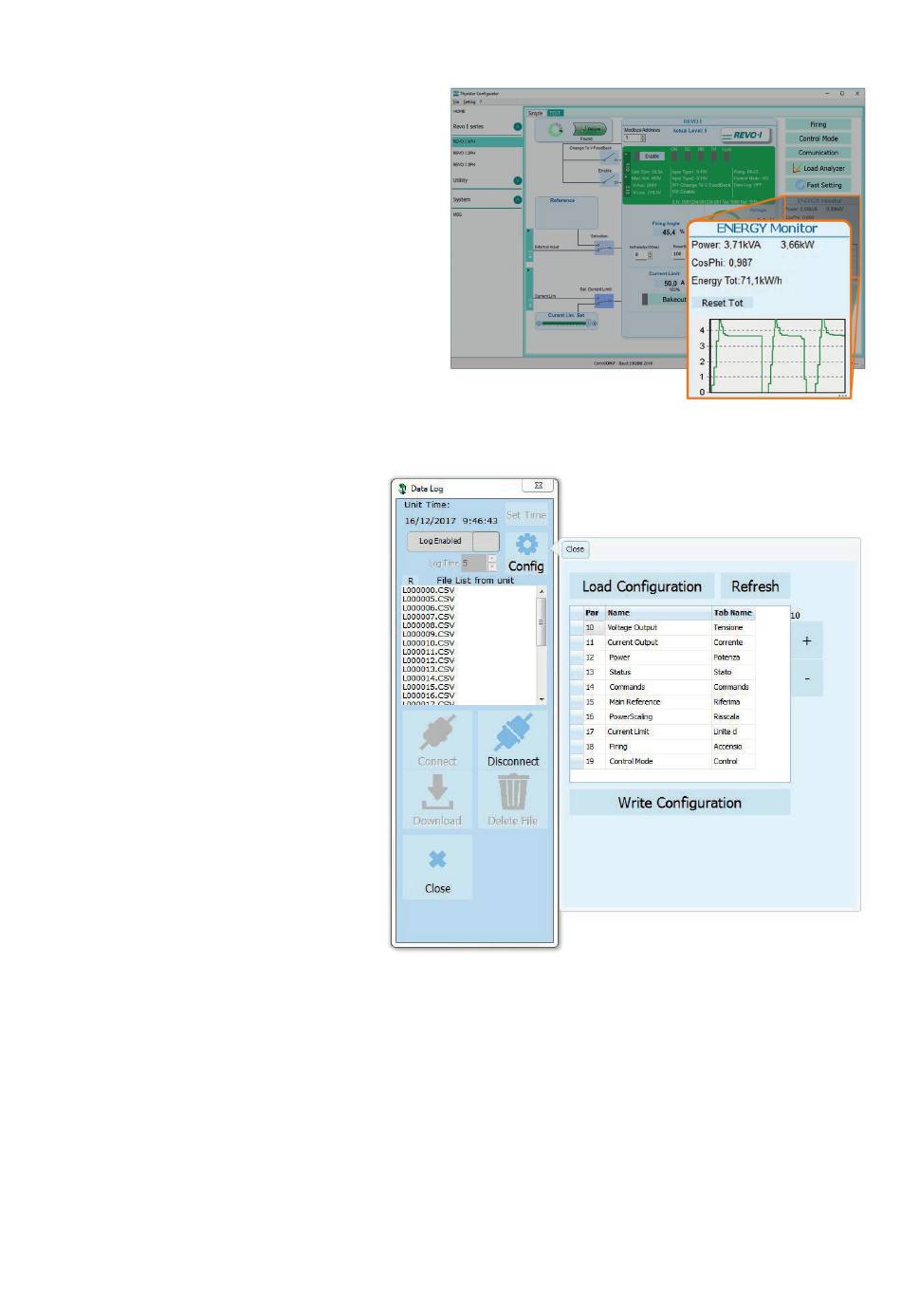

9.5.9 Setting Up and Using Data Logging
To set up data logging:
1) Click Test, if not already on the test view
2) Click
Online
3) Click
Load Analyzer
4) On the
Load Analyzer
Log
5) In the
Data Log
window ensure the
slider is set to
Log Enabled
6) Click
Set Time
7) If necessary Set the date and time and
close the date/time window
8) Set
Log Time
to the number of seconds
between records
9) Click
Connect
10) Click
Config
11) Click
Load Configuration
current list of logged parameters
12) For up to ten parameters to log:
-Click
to add a parameter to the list
+
-In a row in the list either: Type a
parameter's Modbus address in the
OR
-Select the parameter from the drop down list in the
13) Click
Write Configuration
14) Click
Close
15) Click
Disconnect
16) Close the
Data Log
view click
Data
to view the
Par
field
to send the parameter list to the controller
window
field
Name
