REVO I
2PH from 100A to 700A
8

Wiring instructions

The Thyristor unit could be susceptible to interferences lost by near equipments or by the power supply, for
this reason in accord to the fundamental practices rules is opportune take some precautions:
•
The coil contactor, the relays and other inductive loads must be equipped with opportune RC filter.
•
Use shielded bipolar cables for all the input and output signals.
•
The signal cables must not be near and parallel to the power cables.
•
Local regulations regarding electrical installation should be rigidly observed.
Use 75°C copper (CU) conductor only or use copper bus bars sized for field wiring connection, wire ranges
(AWG), wire terminal type (ZMVV), tightening torque in the tables below.

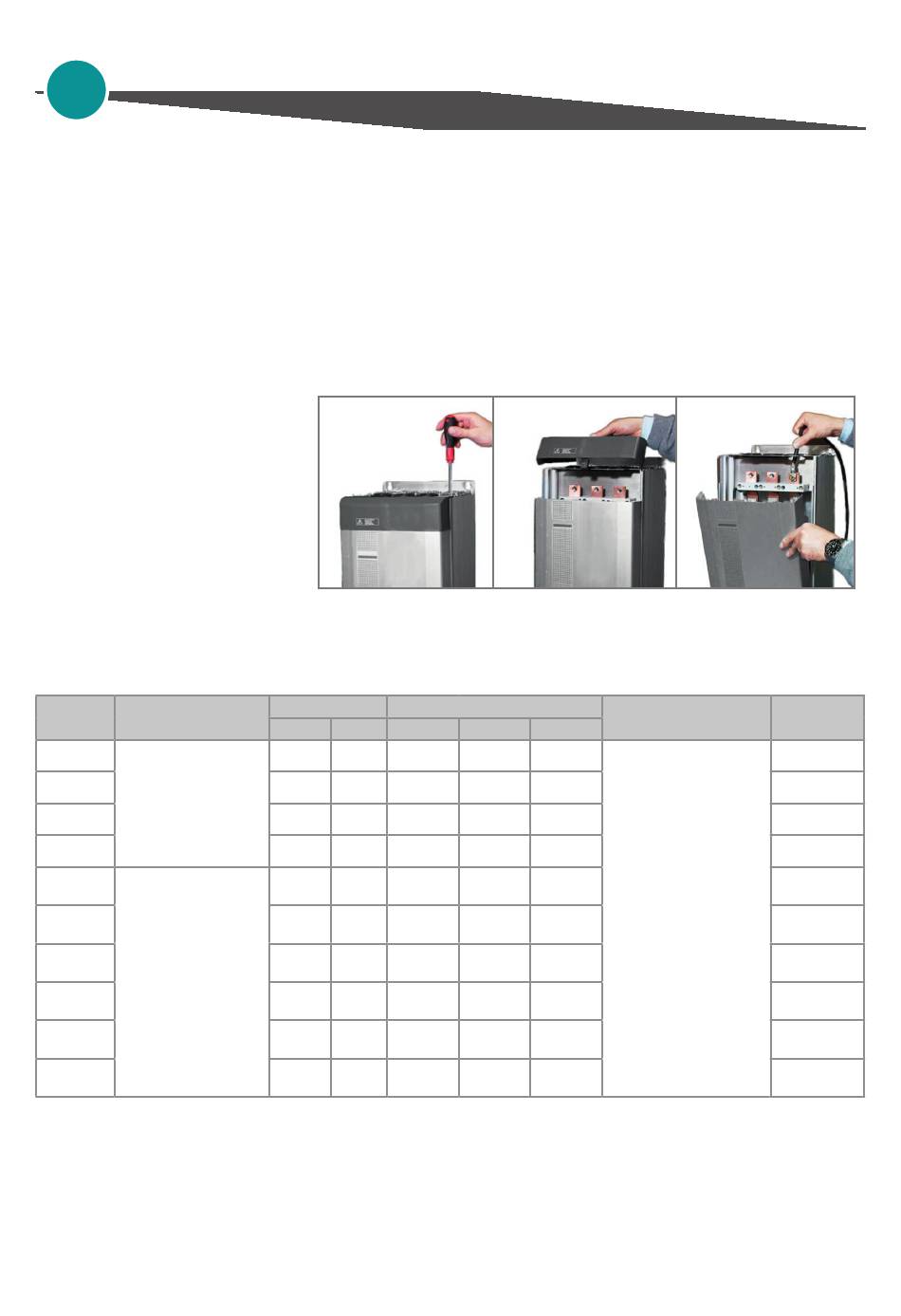

8.1 Removing the cover

Instructions for open the thyristor unit

8.2 Line power and Load cable/bar dimensions and torque (suggested)

Current Connector Type
100A (S11)
125A (S11)
Screw M8
150A (S11)
200A (S13)
300A (S14)
400A (S14)
450A (S14)
Power field wiring Bus
Bar with M10 screw
500A (S14)
600A (S14)
700A (S14)
Torque
Lb-in Nm AWG
177 20.0 3
177 20.0 2
177 20.0 0
177 20.0 000
265 30.0 2 x 1/0
265 30.0 2 x 3/0
265 30.0 2 x 4/0
265 30.0 -
265 30.0 -
265 30.0 -
21
Cable
Cable Terminal
2
mm kcmil
25 52.6
35 66.4
50 106
90 168
2 x 70 350
UL Listed (ZMVV)
2 x 95 600
Copper Tube Crimp. Lug
2 x 95 700
2x250
2 x 150
900
2x350
2 x 185
1500
2 x 300 2x500
User's manual
Bar
-
-
-
-
Bus bar
30x5 mm
Bus bar
66x4mm
Bus bar
66x6 mm
Bus bar
66x6 mm
Bus bar
66x6 mm
Bus bar
66x6 mm
