REVO I
2PH from 100A to 700A
2

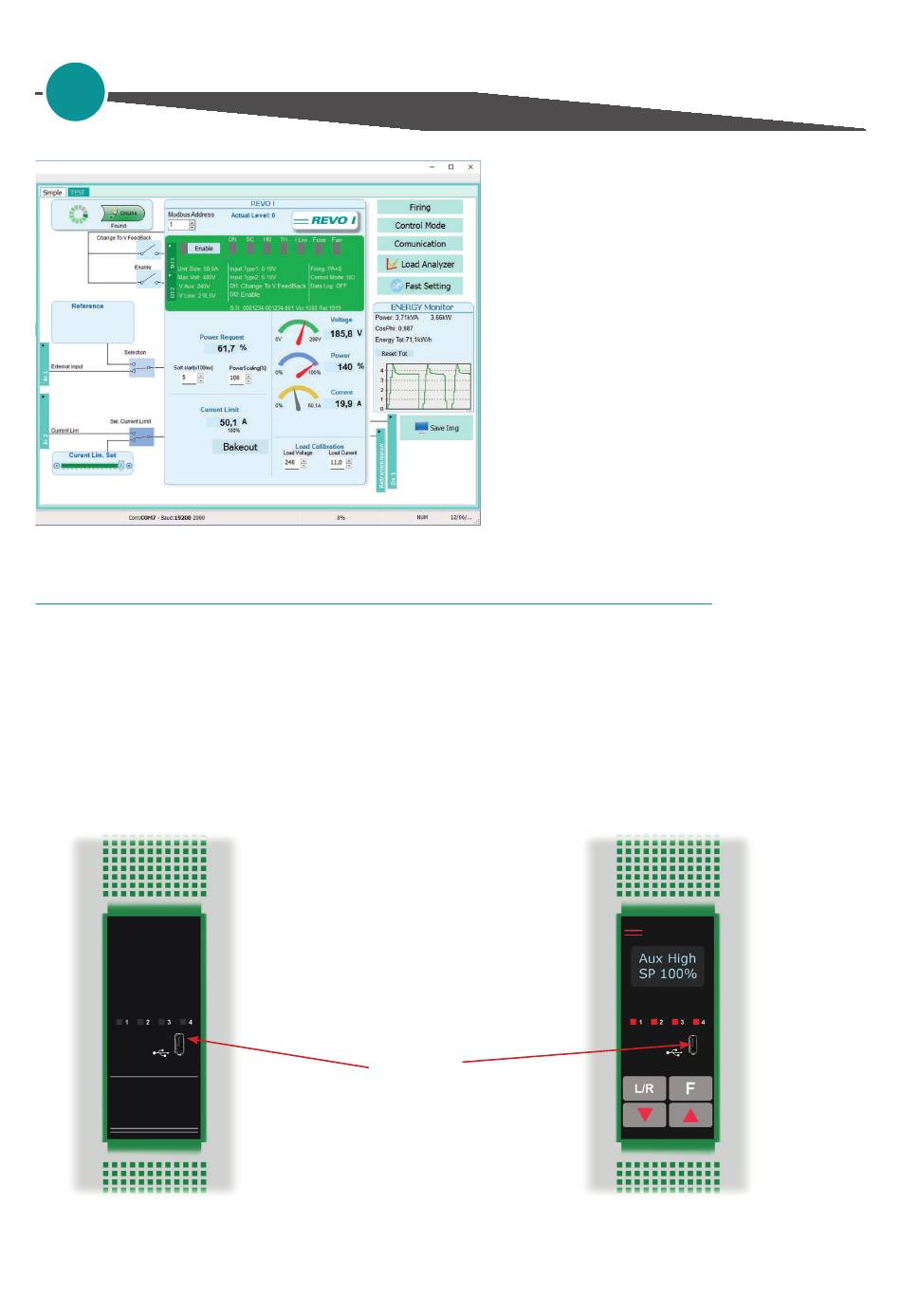

Software Configurator

Software Configurator download link:
https:/ /www.cdautomation.com/wp-content/uploads/ThyristorConfigurator_ver6.zip
To connect the unit at the PC, it's necessary to use the micro USB 2.0 Modbus RTU cable.
USB connection need a driver to work properly, you can find it from our site.
However the configuration software installer will install as default the correct driver.
Thyristor configurator software is free and is
possible download it from the website.
If the Order Code is in line with requirement,
then unit has been already configured in Factory
and it's ready to use.
You need the software only to modify the
ordered configuration. Anyway we suggest to
check the unit on the machine with the "Test
unit" section.
To install the software, launch the program and
follow the instructions on the screen.
Run the software configurator and set the correct
serial port number by menu setting-serial com –
port number.
Micro USB
12
User's manual
with front LED display Option
(Code FD at digit 15)
