PNP Assembly Instructions

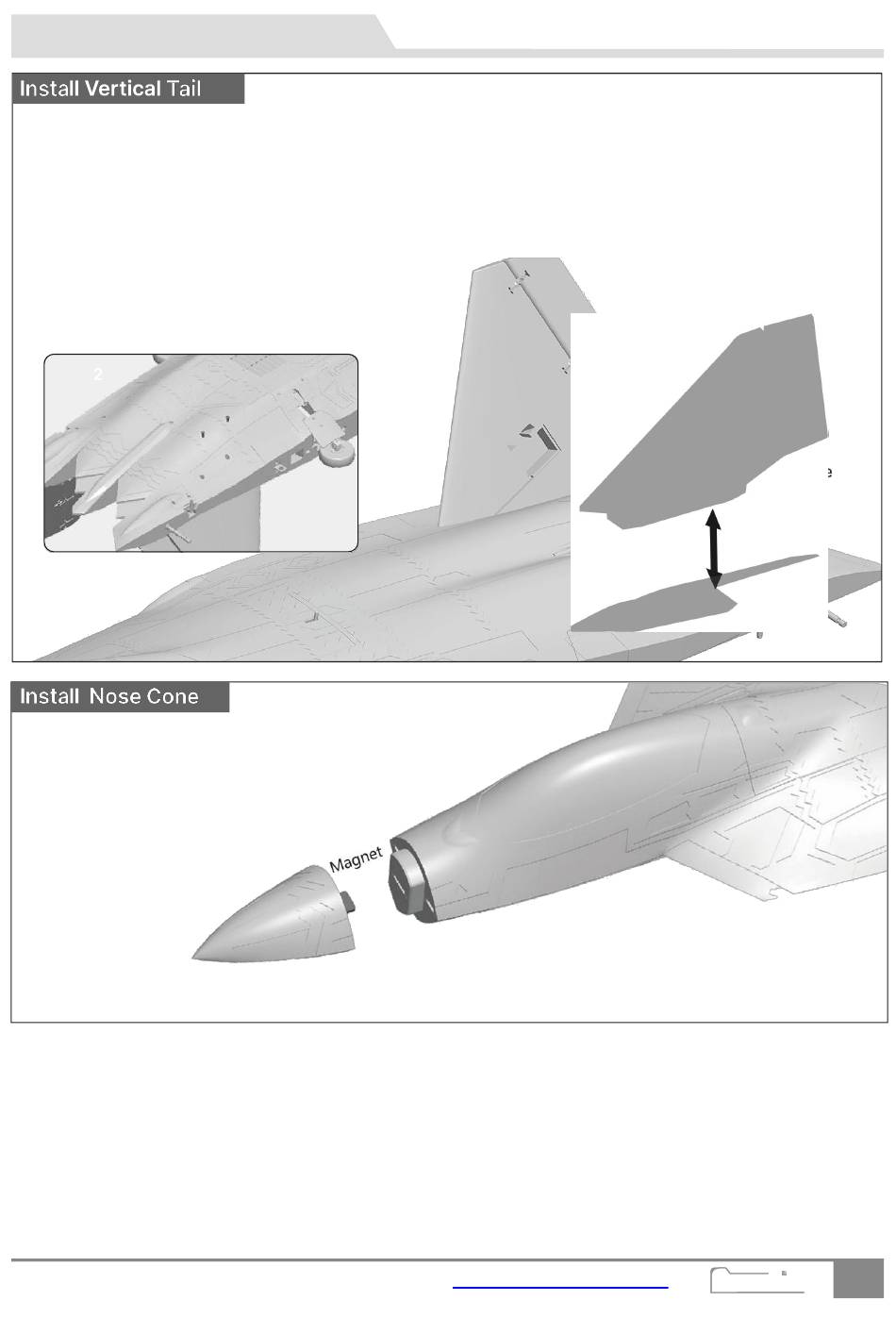

As the photo show:
1. Connect the vertical tail servo cable to the servo extension cable, ensuring that the extension cable clamp is
fully hooked onto the servo cable plug;
2. Insert the vertical tail into the fuselage, turn over the fuselage, and then tighten it with screws.
(Repeat this step for the other vertical tail)
Screw
(KM3*6mm 4PCS)
step@
As the photo show:
1. Install the nose cone onto the fuselage
Freewing F-22 Raptor 70mm EDF Jet
Item No.:FJ222
Ver.:FJ222.01
www.freewing-model.com
