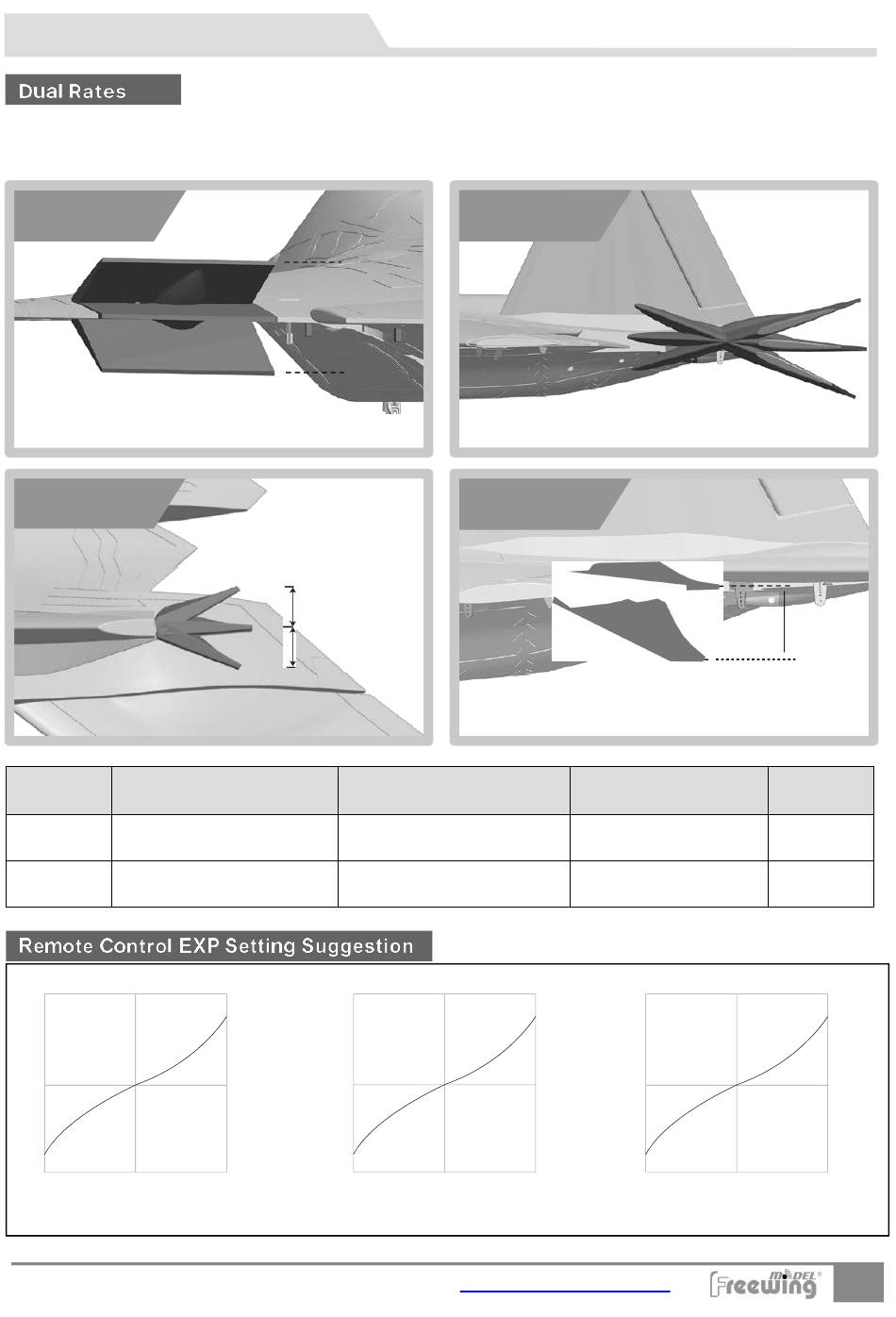

Control direction test

According to our testing experience, use the following parameters to set Aileron/Elevator Rate. Program your preferred
Exponential % in your radio transmitter. We recommend using High Rate for the first flight, and switching to Low Rate if
you desire a lower sensitivity. On successive flights, adjust the Rates and Expo to suit your preference.
(Measured closest to the fuselage)
H1/H2 25mm/25mm
Low Rate
D/R Rate: 80%
H1/H2 30mm/30mm
High Rate
D/R Rate: 100%
1.Aileron EXP curve is shown as below :
Futaba brand Remote Control : EXP A -30
Spektrum brand Remote Control : EXPO 30% 30%
Freewing F-22 Raptor 70mm EDF Jet
Item No.:FJ222
Ver.:FJ222.01
H1
H2
H1
H2
Aileron
, 2.Elevator EXP curve is shown as below
Futaba brand Remote Control : EXP A -30
EXPB -30
Spektrum brand Remote Control : EXPO 30% 30%
Elevator
(Measured closest to the fuselage)
H1/H2 23mm/23m m
D/R Rate: 60%
H1/H2 29mm/29m m
D/R Rate: 80%
EXPB
www.freewing-model.com
- . — — -
H1 /
H2
Rudder
(Measured from the bottom)
H1/H2 16mm/16mm
D/R Rate: 80%
H1/H2 23mm/23m
D/R Rate: 100%
:, 3.Rudder EXP curve is shown as below :
Futaba brand Remote Control : EXP A -30
-30
Spektrum brand Remote Control : EXPO 30% 30%
H1
.
Flaps
H1 24mm
H1 33mm
EXPB -30
