5. Installation

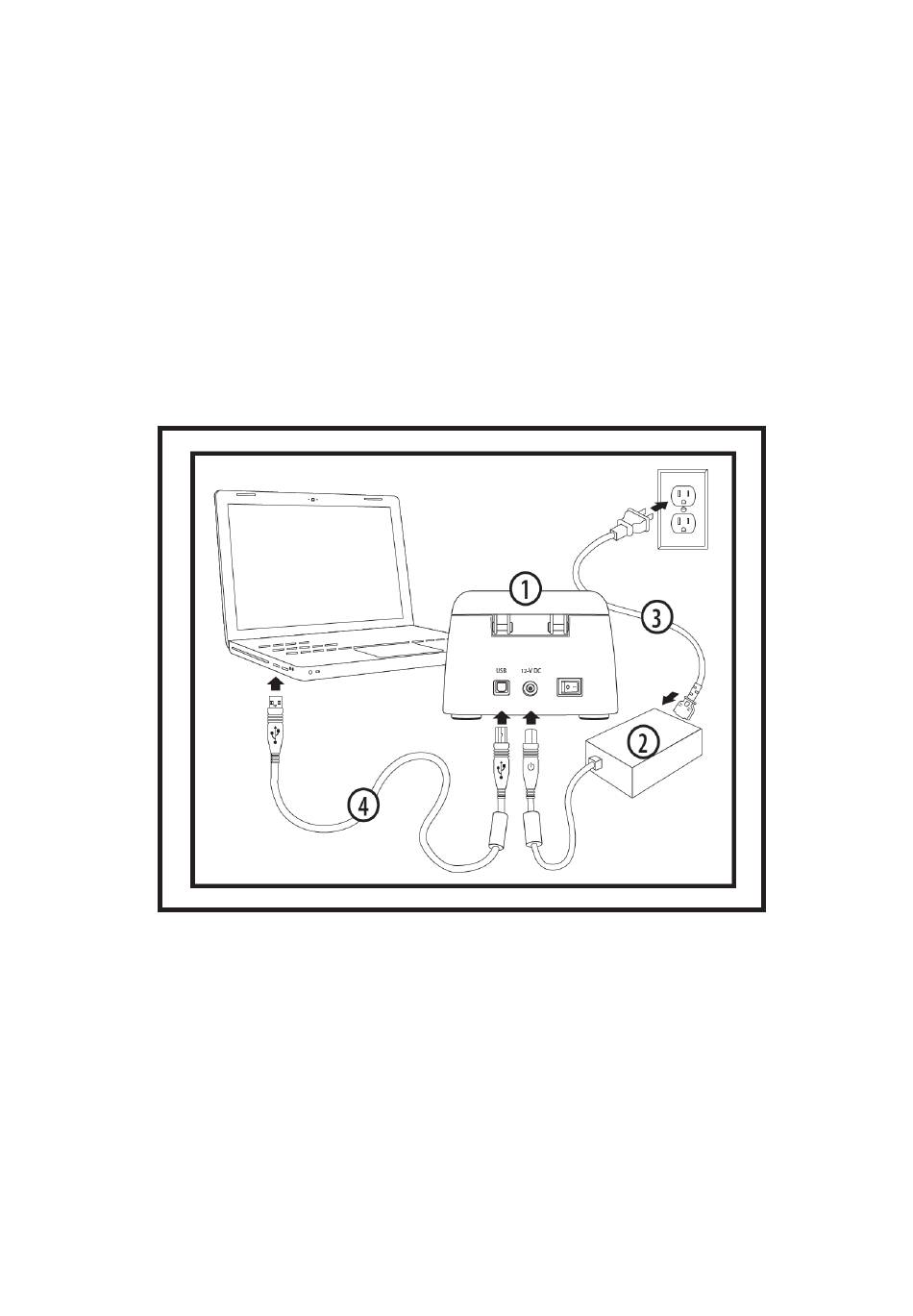

Connect the power cable (3) to the supplied
AC adapter (2).
Connect the AC adapter (2) to the 12V DC input
of the CapsoAccess® Capsule Data Access
System (1).
Connect the power cable (3) to an outlet rated
for a voltage between 110 and 240V AC.
Attach the USB cable (4) to the USB input of the
CapsoAccess® Capsule Data Access System (1).
Connect the other end of the USB cable (4) to
the computer with the CapsoView® software
and the required USB driver installed.
