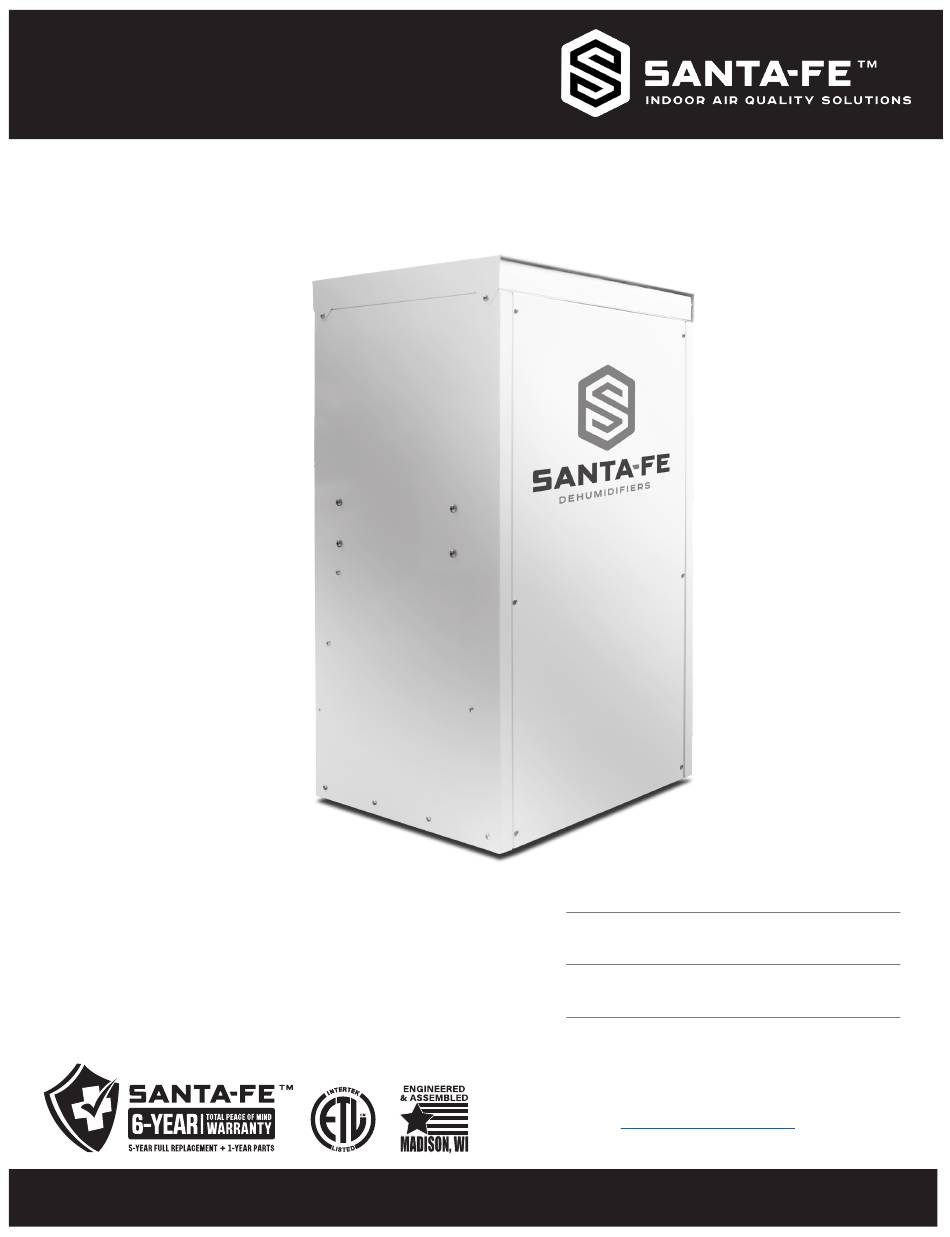

SANTA FE CLASSIC
Installation & Operation Instructions
The Santa Fe Classic has a vertical configuration
and its' flow-down design performs exceptionally
well in basements. The high capacity blower on the
unit moves air in a way that no small conventional
unit can. The Classic's optional condensate pump
and ducting kits provide the flexibility necessary for
any application.
Santa-Fe-Products.com | 800.533.7533
Serial Number
Install Date
Sold By
Patent: thermastor.com/patents
TS-2095 07/24 Rev A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Therma-Stor SANTA-FE CLASSIC
Summary of Contents for Therma-Stor SANTA-FE CLASSIC
- Page 1 SANTA FE CLASSIC Installation & Operation Instructions The Santa Fe Classic has a vertical configuration Serial Number and its’ flow-down design performs exceptionally well in basements. The high capacity blower on the Install Date unit moves air in a way that no small conventional unit can.
-
Page 2: Table Of Contents
Attaching Duct Collars ................9 Recommended Installations ..............10 Service ....................11 Troubleshooting ..................15 Refrigerant Charging ................16 Compressor / Capacitor Replacement ........... 16 Electrical Requirements .................17 Warranty ....................18 4201 Lien Rd. Madison, WI 53704 1-800-533-7533 www.Thermastor.com | www.Santa-Fe-Products.com © 2016 Therma-Stor LLC... -
Page 3: Safety Instructions
Safety Instructions READ THE INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS CAREFULLY BEFORE INSTALLING AND OPERATING THIS DEVICE. PROPER ADHERENCE TO THESE INSTRUCTIONS IS ESSENTIAL TO OBTAIN MAXIMUM BENEFIT FROM YOUR SANTA FE DEHUMIDIFIER. WARNING! THIS SYMBOL MEANS IMPORTANT INSTRUCTIONS. FAILURE TO HEED THEM CAN RESULT IN SERIOUS INJURY OR DEATH. CAUTION! THIS SYMBOL MEANS IMPORTANT INSTRUCTIONS. -
Page 4: Intended Applications
Intended Applications The Santa Fe Classic is registered with the DOE as a portable dehumidifier with a capacity greater than 50 pints per day. It is a stand-alone dehumidifier intended to operate within the dehumidified space, such as basements: however, the unit can be placed in almost any residential setting where dehumidification is desired. -
Page 5: Dehumidifier Set Up
Dehumidifier Set Up Location Considerations • Do not install the Santa Fe Classic with the intake or exhaust of the unit within 1’ of a wall or other obstruction. Avoid directing the discharge air at people. The dehumidifier should be used in the upright position. -
Page 6: Drain Installation
Drain Installation The Santa Fe Classic generates condensate. A 6' condensate hose comes attached to the unit. Be sure the hose is not kinked or otherwise restricted so water can pass through the hose freely. If the Santa Fe Classic is located too far from the floor drain and the provided hose does not reach, you may use a 1/2"... -
Page 7: Operation
Operation Humidity Control Adjustment The humidity control is an adjustable switch that turns the dehumidifier on and off. It turns on when the relative humidity (RH) rises to the dial set point. It turns off when the RH is within ±5% of the set point. Approximate Humidity Levels Per Setting “Drier”... -
Page 8: Air Filtration
Air Filtration The Santa Fe Classic is equipped with a MERV-13 air filter (89-90% ASHRAE dust spot). An optional MERV-11 filter is available at www.ThermastorFilters.com. The MERV-13 filter should be checked and replaced every three to six months. Operating the unit with a dirty filter will reduce dehumidifier capacity and efficiency. -
Page 9: Ducting To Finished Area (Optional)
Ducting To Finished Area (Optional) Attaching Duct Collars Return Air Inlet Hood The return air inlet hood has an 8” and 6” diameter collar. The 8” collar is the main return collar and must be used. The 6” collar is optional and can be left closed to draw air from another location. Supply Air Outlet The 8”... -
Page 10: Recommended Installations
Ducting To Finished Area (Optional) Recommended Installations Installation of a Santa Fe Classic With a Supply Kit Only Supply Grill Passive Return Vent Supply/Discharge Optional Wall Duct Work Mount Dehumidistat (mounts on opposite wall in finished area) • Place the Santa Fe Classic in the unfinished area of the basement, near a drain access (condensate will drain via gravity or with an optional pump kit). -
Page 11: Service
Service WARNING! SERVICING THE DEHUMIDIFIER WITH ITS HIGH PRESSURE REFRIGERANT SYSTEM AND HIGH VOLTAGE CIRCUITRY PRESENTS A HEALTH HAZARD WHICH COULD RESULT IN DEATH, SERIOUS BODILY INJURY, AND/OR PROPERTY DAMAGE. ONLY QUALIFIED SERVICE PEOPLE SHOULD SERVICE THIS UNIT. Warranty A warranty certificate has been enclosed in this manual; read it before any repair is initiated. If a warranty repair is required, call the factory first at 1-877-420-1330 for warranty claim authorization and technical assistance. - Page 12 • Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating. • Replace components only with parts specified by Therma-Stor. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.
-
Page 13: Charging Procedures
Service Detection of Flammable Refrigerants Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used. The following leak detection methods are deemed acceptable for all refrigerant systems: •... -
Page 14: Refrigerant Recovery
Service Decommissioning Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its details. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of recovered refrigerant. -
Page 15: Troubleshooting
Service - Troubleshooting CAUTION! TROUBLESHOOTING SHOULD BE PERFORMED BY A QUALIFIED HVAC TECHNICIAN. Symptom Possible Reason Troubleshooting Procedure Fan is not running. 1. Loose connection in WARNING! Dehumidification fan circuit. or fan is being 2. Obstruction prevents ELECTRICAL SHOCK HAZARD: called for. -
Page 16: Refrigerant Charging
Service - Troubleshooting WARNING! CAUTION! SERVICING THE SANTA FE CLASSIC, WITH ITS HIGH TROUBLESHOOTING SHOULD BE PERFORMED BY A PRESSURE REFRIGERANT SYSTEM AND HIGH VOLTAGE QUALIFIED HVAC TECHNICIAN. CIRCUITRY PRESENTS A HEALTH HAZARD WHICH COULD RESULT IN DEATH, SERIOUS BODILY INJURY, AND/OR Symptom Possible Reason PROPERTY DAMAGE. -
Page 17: Electrical Requirements
Electrical Requirements The Santa Fe Classic plugs into a common grounded 115VAC outlet. The device draws 7.5A at 104°F and 36%RH. Locate the dehumidifier in an area where the cord’s length (9') easily reaches a 115 VAC electrical outlet with a minimum of 15 Amp circuit capacity. -
Page 18: Warranty
Limited Warranty. Any delay or failure by Therma-Stor to exercise any right or remedy will not constitute a waiver of Therma-Stor to thereafter enforce such rights. -
Page 20: Warranty Registration Card
WARRANTY REGISTRATION CARD IMPORTANT WARRANTY INFORMATION - DO NOT DISCARD REGISTER YOUR PRODUCT. SERIAL NUMBER PART NUMBER www.thermastor.com/registration Register your product using the serial number and part number above at www.thermastor.com/registration This is important Warranty Information. Please DO NOT DISCARD! Santa-Fe-Products.com 1.800.533.7533...
