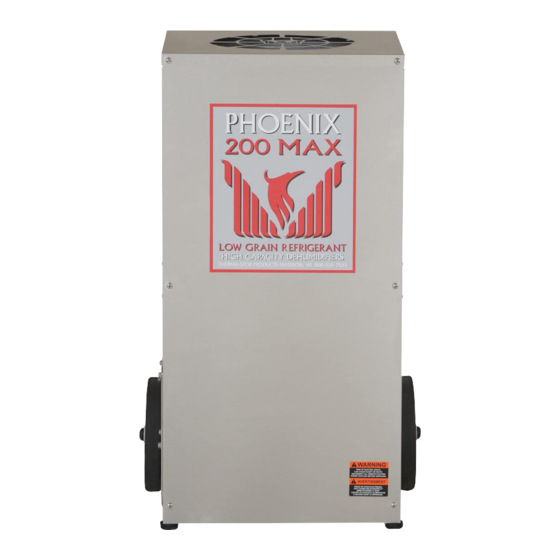

Owner's Manual — Phoenix 200 MAX
The Phoenix 200 MAX is one of the most effective and versatile drying devices available. The 200
MAX removes more water and has more grain depression than other refrigerant dehumidifiers, even
though it only requires 7.4 amps of electricity.
The term LGR (Low Grain Refrigerant) was created to describe the unique drying capabilities of the
Phoenix 200 dehumidifier. These units were known for delivering substantially drier air, as well as
for drying areas to much lower humidity levels than conventional dehumidifiers. The Phoenix 200
MAX, an improved version of the original Phoenix 200, is the culmination of over a decade of LGR
manufacturing and design expertise.
The Phoenix 200 MAX LGR,
High Capacity Dehumidifier
• Improved water removal
+6 gals/day (33 pints) AHAM (80ºF, 60%)
30 gals/day maximum
• Improved grain depression
The driest air from an LGR
• Multiple air filter options
Standard 65% MERV-, 57% MERV-8, or
95% MERV-4
• Multiple ducting options
2" intake, 0" lay-flat exhaust
• Less than 7.5 amps
Removes the most pints of water per kilowatt
• Stainless steel cabinet
• Internal pump with 30 feet of hose
• Five-year warranty on the sealed refrigeration
system.
Specifications subject to change without notice.
Toll-Free 1-800-533-7533
PO Box 8680 • Madison, WI 53708
Installation, Operation & Service Instructions
Read and Save These Instructions
Phoenix 200 MAX
PN 4024920

www.thermastor.com • sales@thermastor.com
Phoenix 200 MAX
TS-262C
Revised 1/07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Phoenix 200 MAX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Therma-Stor Phoenix 200 MAX

Summary of Contents for Therma-Stor Phoenix 200 MAX

  • Page 1 Installation, Operation & Service Instructions Read and Save These Instructions The Phoenix 200 MAX is one of the most effective and versatile drying devices available. The 200 MAX removes more water and has more grain depression than other refrigerant dehumidifiers, even though it only requires 7.4 amps of electricity.

  • Page 2: Table Of Contents

    • If used in a wet area, plug it into a GROUND FAULT INTERRUPTER. • DO NOT use the Phoenix 200 MAX as a bench or table. • It must always be used in the upright position. www.thermastor.com • sales@thermastor.com Shipping 27-/2”...

  • Page 3: Electrical Requirements

    99,999.9 hours of operation. 2.9 Defrost Control Adjustment When the Phoenix 200 MAX is used in a cool area, or the dewpoint is below 50°, frost will form on the cooling coil as it dehumidifies. When enough frost forms, the defrost thermostat will initiate the timed defrost cycle.

  • Page 4: Low Pressure Control

    3 Maintenance 3.1 Air Filter The Phoenix 200 MAX is equipped with a pleated fabric air filter that must be checked regularly. The standard filter is a MERV- high efficiency filter. Operating the unit with a dirty filter will reduce the dehumidifier’s capacity and...

  • Page 5: Troubleshooting

    The mixture of gas and liquid refrigerant enter the accumulator after leaving the evaporator coil. The accumulator prevents any liquid refrigerant from reaching the compressor. The compressor evacuates the cool refrigerant gas from the accumulator and compresses it to a high pressure and temperature to repeat the process. 4.3 Troubleshooting No dehumidification, neither blower nor compressor run and power switch does not light when ON.

  • Page 6: Compressor/Capacitor Replacement

    5. Rotate the blower outlet toward you as you remove it. Use care to avoid hooking wiring, tubing or electrical components. 6. Reassembling with the new blower in the above procedure reversed. 4.6 Compressor/Capacitor Replacement This compressor is equipped with a two terminal external overload, run capacitor, but no start capacitor or relay (see Fig.

  • Page 7: C Replacing A Compressor- Non-Burn Out

    4.9 Gravity Drain Option If the condensate pump fails and cannot be replaced immediately, the Phoenix 200 MAX can be used by draining by gravity. . Unplug the unit and remove the front cover. 2. Push the plastic plug on the right side (see Fig. 4) out from inside the unit.

  • Page 8: Wiring Diagram

    5 Wiring Diagram Figure 3: Electrical schematic of 200 MAX Toll-Free 1-800-533-7533 www.thermastor.com • sales@thermastor.com...

  • Page 9: Service Parts List

    6 Service Parts Item Part No. Qty. Description 4022254 Accumulator 402475 Air Filter, Pleated, 2” x 6” x 20” 65% Merv- 4024682 Air Filter, Pleated, 2” x 6” x 20” 57% MERV-8 (optional) 4022489 Air Filter, Pleated, 4” x 6” x 20” 95% Mini-Pleat MERV-4 (optional) 4022037 Blower...
  • Page 10 This page intentionally left blank. Toll-Free 1-800-533-7533 www.thermastor.com • sales@thermastor.com...
  • Page 11 (but all warranty periods will be extended by the period of time, if any, that the Phoenix 200 MAX Dehumidifier is out of service while awaiting covered warranty service).
