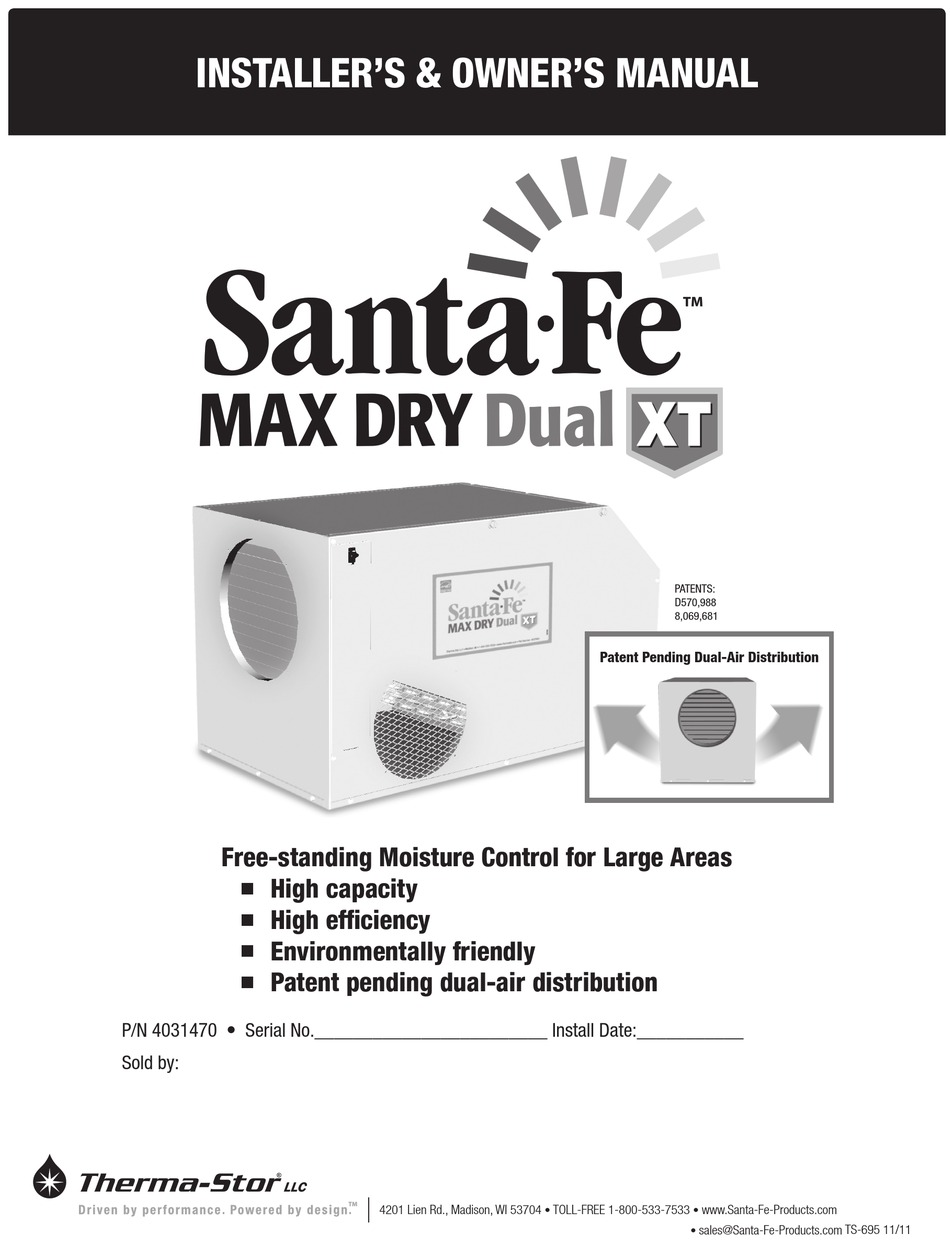

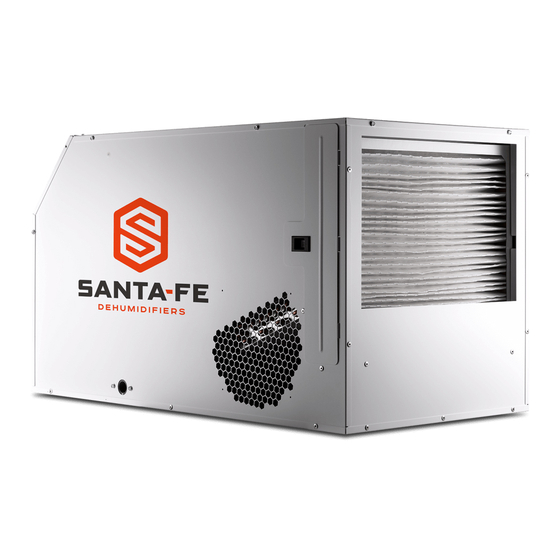

INSTALLER'S & OWNER'S MANUAL
Free-standing Moisture Control for Large Areas
P/N 4031470 • Serial No.________________________ Install Date:___________
Sold by:
For small usage:
High capacity
n
High efficiency
n
Environmentally friendly
n
Patent pending dual-air distribution
n
4201 Lien Rd., Madison, WI 53704
PATENTS:
D570,988
8,069,681
Patent Pending Dual-Air Distribution
TOLL-FREE 1-800-533-7533
www.Santa-Fe-Products.com
•
•
sales@Santa-Fe-Products.com TS-695 11/11
•
Advertisement
Table of Contents
Related Manuals for Therma-Stor 4031470
Summary of Contents for Therma-Stor 4031470
- Page 1 Patent Pending Dual-Air Distribution Free-standing Moisture Control for Large Areas High capacity High efficiency Environmentally friendly Patent pending dual-air distribution P/N 4031470 • Serial No.________________________ Install Date:___________ Sold by: 4201 Lien Rd., Madison, WI 53704 TOLL-FREE 1-800-533-7533 www.Santa-Fe-Products.com • •...
-
Page 2: Table Of Contents
11. Optional Remote Humidity Control ....... 7 12. Wiring Diagram............7 1. Intended Application(s) Warranty................8 The Santa Fe Max Dry Dual XT is intended for use in crawlspaces or basements: however, the unit can be placed Precautions in almost any residential setting where dehumidification is •... -
Page 3: Specifications
Output of Dehumidified Air 4.1 Location Front View Front View The Santa Fe Max Dry Dual XT can be installed in a variety of locations to meet the owner’s needs; other considerations include: 1. Providing access to a 115 VAC power outlet (10' power cord is provided). -
Page 4: D Remote Area W/ Ducted Return
4.1D In A Remote Area, Ducted Return Only (fig. 4) Then coil the drain hose under itself or position a spacer to When the Santa Fe Max Dry Dual XT is located in a room lift the hose 1” off the ground after the hose has touched the separate from the main area to be dehumidified, it may be ground. -
Page 5: Return Duct Kit
7.1 Air Filter A factory designed return duct kit can be purchased The Santa Fe Max Dry Dual XT ships with a standard MERV to accept 12" ducting. Contact your dealer or call 11 efficient pleated fabric filter. This should be checked 1-800-533-7533 to order. -
Page 6: Troubleshooting
Santa Fe Max Dry Dual XT OWNER’S AND INSTALLER’S MANUAL Blower does not run with fan switch in either position. refrigerant during normal operation. A flooded evaporator Compressor runs briefly but cycles on and off. should maintain constant pressure and temperature across the entire coil, from inlet to outlet. -
Page 7: Optional Remote Humidity Control
Santa Fe Max Dry Dual XT OWNER’S AND INSTALLER’S MANUAL 11. Santa Fe Max Dry Dual XT Optional Remote Humidity Control CAUTION! This should only be performed by a qualified electrician. A 120 VAC remote humidity control is available from the factory. This replaces the factory mounted humidity control on the cabinet of the dehumidifier, and allows you to accurately sense the humidity in an area other than the one where the dehumidifier is located. -
Page 8: Warranty
Limited Warranty. Therma-Stor, LLC (“Therma-Stor”) warrants as Customer Responsibilities. As a further condition to obtaining follows: (i) the Santa Fe Max Dry Dual XT dehumidifier (“Product”) warranty coverage hereunder, the Customer must send a valid will be free of material defects in workmanship or materials for a warranty claim to Therma-Stor such that Therma-Stor receives period of one (1) year (“One-Year Warranty”) following the date of... - Page 9 Information in this document is subject to change without notice. No part of PO Box 8680 • Madison, WI 53708 this document may be reproduced or transmitted in any form or by any means, Phone: 608-222-5301 • Fax: 608-222-1447 electronic or mechanical, for any purpose, without the express written permission Web: www.thermastor.com •...
