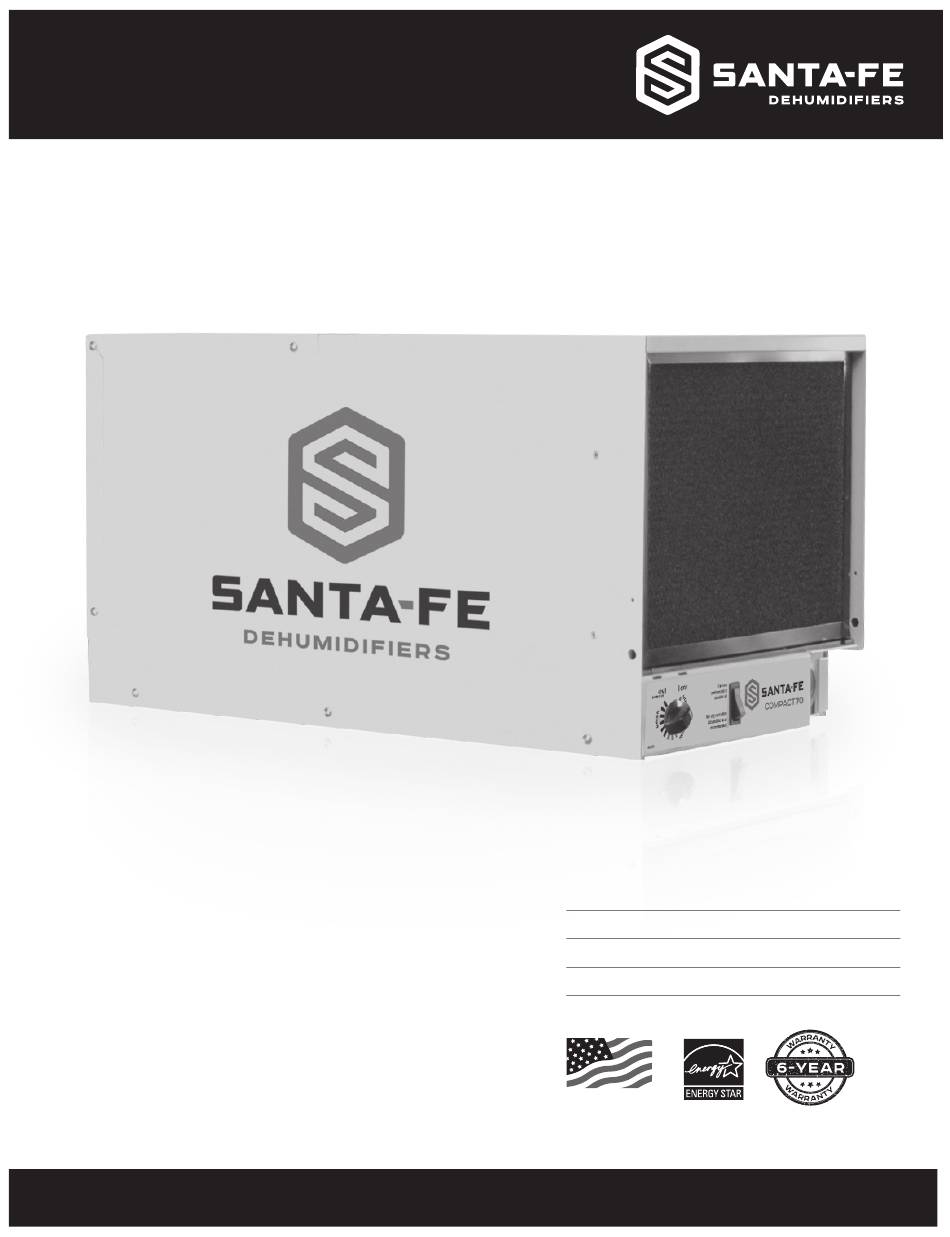

COMPACT SERIES | COMPACT70
Installation & Operation Instructions
The Santa Fe Compact70 is designed for
superior basement and crawl space
dehumidification. Tight spaces are no problem
for the Santa Fe Compact70 dehumidifier. Its
compact size works perfect in low crawl spaces
and small basements without sacrificing power
and performance. Designed to fit in a variety of
small spaces, the Compact70 provides multiple
installation options for greater flexibility.
Santa-Fe-Products.com | 800.533.7533
Part Number
4033600
Serial Number
Install Date
Sold By
MA DISON, WI
TS-1082 10/18 Rev B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SANTA-FE COMPACT Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Therma-Stor SANTA-FE COMPACT Series

  • Page 1 COMPACT SERIES | COMPACT70 Installation & Operation Instructions The Santa Fe Compact70 is designed for Part Number 4033600 superior basement and crawl space Serial Number dehumidification. Tight spaces are no problem Install Date for the Santa Fe Compact70 dehumidifier. Its Sold By compact size works perfect in low crawl spaces and small basements without sacrificing power...
  • Page 2: Table Of Contents

    MERV Rating Chart .................. 11 Electrical Requirements .................12 Service ....................13 Replacement Parts .................. 13 Refrigerant Charging ................13 Compressor / Capacitor Replacement ........... 13 Troubleshooting ..................13 Warranty ....................15 4201 Lien Rd. Madison, WI 53704 1-800-533-7533 www.Thermastor.com | www.Santa-Fe-Products.com © 2016 Therma-Stor LLC...
  • Page 3: Safety Instructions

    Safety Instructions READ THE INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS CAREFULLY BEFORE INSTALLING AND OPERATING THIS DEVICE. PROPER ADHERENCE TO THESE INSTRUCTIONS IS ESSENTIAL TO OBTAIN MAXIMUM BENEFIT FROM YOUR SANTA FE DEHUMIDIFIER. WARNING! THIS SYMBOL MEANS IMPORTANT INSTRUCTIONS. FAILURE TO HEED THEM CAN RESULT IN SERIOUS INJURY OR DEATH.
  • Page 4: Specifications

    Specifications Part Number: 4033600 Blower: 150 CFM @ 0.0" WG Power: 580 watts @ 80°F and 60% RH Supply Voltage: 115 volt – 1phase – 60 Hz Current Draw: 5.1 amps Operating Temp.: 49°F Min., 95°F Max. Sized For: (Refer to website for more sizing considerations) Crawl Space Very Tightly Sealed Up to 3,000 Sq.
  • Page 5: Dehumidifier Set Up

    Dehumidifier Set Up Items Included in Box: • Santa Fe Compact70 Dehumidifier • Santa Fe Compact70 Installation & Operation Instructions • Santa Fe Compact70 Leveling Feet • 8' Drain Hose • Drain Adapter • Merv-13 Filter • 2 Compressor Shipping Strap Plugs – Not used for the Compact70 Important Precautions •...
  • Page 6: Ducting To Finished Areas (Optional)

    Ducting To Finished Areas (Optional) Attaching Duct Collars Return Air Inlet An 8” diameter duct collar and a front panel are attached to the unit. Supply Air Outlet The back panel of the dehumidifier can be rotated to allow for horizontal flow through or vertical flow through of the supply air.
  • Page 7: Recommended Installations

    Ducting To Finished Areas (Optional) Recommended Installations Installation of a Santa Fe Compact70 Installation of a Santa Fe Compact70 With a Supply Kit Only With a Supply and Return Duct Kit Supply Grill Passive Return Vent Return Grill Supply Grill Supply/Discharge Supply/Discharge Optional Wall...
  • Page 8: Drain Installation

    Drain Installation The Santa Fe Compact70 generates condensate. Place a secondary drain pan under the dehumidifier if it is suspended above a finished area or above an area where wa- ter leakage could cause damage. A drain trap is required for the dehumidifier to run properly. Install a 3/4" threaded male NPT adapter to the drain or drain pan if one is being used.
  • Page 9: Operation

    Operation Humidity Control Adjustment The humidity control is an adjustable switch that turns the dehumidifier on and off. It turns on when the relative humidity (RH) rises to the dial set point. It turns off when the RH is within ±5% of the set point. Approximate Humidity Levels Per Setting “Drier”...
  • Page 10: Air Filtration

    Air Filtration The Santa Fe Compact70 is equipped with a pre-filter and a MERV-13 air filter. An optional MERV-8 or MERV-11 filter is available at www.thermastorfilters.com. The filters should be checked and replaced every three to six months. Operating the unit with a dirty filter will reduce dehumidifier capacity and efficiency. DO NOT operate the unit without a MERV-8, MERV-11 or MERV-13 filter.
  • Page 11: Merv Rating Chart

    Air Filtration MERV Rating Chart Standard 52.5 Minimum Efficiency Reporting Dust Spot Typical Controlled Typical Applications and Value Efficiency Arrestance Contaminant Limitations Typical Air Filter/Cleaner Type >99.999% eff. On .10-.20 pm Particles < 0.30 pm particle size Cleanrooms Virus (unattached) Radioactive Materials Particles Particulates...
  • Page 12: Electrical Requirements

    Electrical Requirements The Santa Fe Compact70 plugs into a common grounded 115VAC outlet. The device draws 5.1 Amps at 80°F and 60% RH. Locate the dehumidifier in an area where the cord’s length (9') easily reaches a 115 VAC electrical outlet with a minimum of 15 Amp circuit capacity.
  • Page 13: Service

    Service WARNING! SERVICING THE SANTA FE COMPACT70, WITH ITS HIGH PRESSURE REFRIGERANT SYSTEM AND HIGH VOLTAGE CIRCUITRY PRESENTS A HEALTH HAZARD WHICH COULD RESULT IN DEATH, SERIOUS BODILY INJURY, AND/OR PROPERTY DAMAGE. ONLY QUALIFIED SERVICE PEOPLE SHOULD SERVICE THIS UNIT. Troubleshooting Replacement Parts 4025560...
  • Page 14 Service - Troubleshooting CAUTION! TROUBLESHOOTING SHOULD BE PERFORMED BY A QUALIFIED HVAC TECHNICIAN. Symptom Possible Reason Troubleshooting Procedure Fan is not running. 1. Loose connection in WARNING! Dehumidification fan circuit. or fan is being 2. Obstruction prevents ELECTRICAL SHOCK HAZARD: called for.
  • Page 15: Warranty

    Miscellaneous. If any term or condition of this Limited Warranty is found by a court of competent jurisdiction to be invalid, illegal or otherwise unenforceable, the same shall not affect the other terms or conditions hereof or thereof or the whole of this Limited Warranty. Any delay or failure by Therma-Stor to exercise any right or remedy will not constitute a waiver of Therma-Stor to thereafter enforce such rights.
  • Page 16 D E H U M I D I F I E R S Santa-Fe-Products.com 800.533.7533...
