The Santa Fe HC dehumidifier performs multiple
functions in a compact enclosure, including
high-capacity dehumidification and air filtration.
True Performance
Off-the shelf, appliance grade dehumidifiers rate
their dehumidification capacities at 80°F, 60%
relative humidity (RH). The performance of these
devices drops significantly at cooler temperatures
typically found in basements and crawlspaces.
That means you may have to purchase multiple
off-the-shelf units to meet the performance of a
single Santa Fe HC.
• The Santa Fe HC is controlled by a dehumidistat
with positive "ON" and "OFF" settings with a
variable humidity setpoint range of "20%" to
"80%" . Humidity control is automatic and accurate.
• Low-temperature operation. The Santa Fe HC can continue
to remove humidity down to 55°F and will not freeze-up in
normal basement conditions.
• 115 VAC operation. A factory installed six foot power cord which plugs
into a standard 15 amp grounded outlet. The Santa Fe HC draws less
than 12 amps.
• Gravity water drain.
• The Santa Fe HC removes 135 pints of water per day, which is many
times the water removal of other dehumidifiers.
• Optional ductability promotes air distribution or allows remote location.
Dehumidification
Integrated Filtration
Ducted or Free-Standing
Compact
Figure 2: Features and Benefits
© Copyright Therma-Stor LLC
Manual P/N 4025273
Santa Fe HC Dehumidifier

Features and Benefits

The Santa Fe HC dehumidifier is designed to provide uncompromised indoor air
quality. The Santa Fe HC provides particulate filtration and humidity control in a single
compact free-standing or ducted (optional) enclosure. At the heart of the HC is a
high capacity, energy efficient dehumidifier capable of removing over 16.8 gallons
of water per day (at 80°F, 60% relative humidity) while using less than 13 amps of
electricity (120V). The unit maintains indoor humidity levels below 50%, the level
widely recognized as critical for controlling mold, mildew and dust mite populations.
Issue 09/04

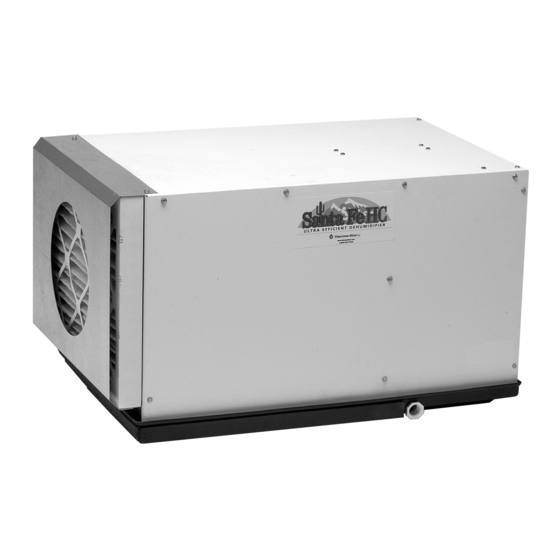

Figure 1: Santa Fe HC
P/N 4025081
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Santa Fe HC 4025081 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Therma-Stor Santa Fe HC 4025081

  • Page 1: Introduction

    Issue 09/04 Santa Fe HC Dehumidifier The Santa Fe HC dehumidifier performs multiple functions in a compact enclosure, including high-capacity dehumidification and air filtration. True Performance Off-the shelf, appliance grade dehumidifiers rate their dehumidification capacities at 80°F, 60% relative humidity (RH). The performance of these devices drops significantly at cooler temperatures typically found in basements and crawlspaces.
  • Page 2: Table Of Contents

    Table of Contents Introduction 1 Intended Application for Santa Fe HC Features & Benefits Precautions For the ideal installation, draw air from the central part of 1. Intended Application the home and return it to isolated areas of the home like the 2.
  • Page 3: A In Humid Area, No Ducting

    4.1A in Humid Area, No Ducting (Fig. 4) The simplest installation is to place the Santa Fe HC in the humid area with no ducting. To ensure Inlet Output optimal performance the air inlet and the outlet of the unit must be at least 1' from walls and other obstructions to air flow.
  • Page 4: D In Remote Area, Duct Outlet Only

    4.1D In A Remote Area, Duct Outlet Only (Fig. 7) A simplified remote installation method than above uses ducting between the Santa Fe HC discharge and the humid room; the Santa Fe HC inlet draws air from the room in which it's located. This works well if Output there is an adequate air flow path between the two rooms;...
  • Page 5: Condensate (Water) Removal

    6 Operation 4.5 Drainage and Trap The Santa Fe HC requires a trap. Unit should be located in an area where the unit’s condensate (water) may be easily routed 6.1 Humidity Control Adjustment to a suitable drain. Figure 13: Humidity control dial. Thread the PVC barb fitting into the drain outlet on the front of the unit.
  • Page 6: Blower (Fan) Switch

    6.2 Blower (Fan) Switch the refrigerant pressure and temperature to drop. It next enters the evaporator coil where it absorbs heat from the Turning “ON” the fan switch will cause the unit's internal incoming air and evaporates. blower to run continuously, whether the unit is dehumidifying or not.
  • Page 7: Defrost Thermostat

    11 Wiring Diagram Evaporator coil frosted continuously, low dehumidifying capacity. 1. Defrost thermostat loose or defective. 2. Low refrigerant charge 3. Dirty air filter or air flow restricted. 8.3 Defrost Thermostat The defrost thermostat is attached to the refrigerant suction tube between the accumulator and compressor.
  • Page 8 Santa Fe HC Dehumidifier Limited Warranty WARRANTOR: and does not cover any defect, malfunction, etc. resulting from misuse, abuse, lack of normal care, corrosion, freezing, tampering, modification, Therma-Stor LLC unauthorized or improper repair or installation, PO Box 8050 accident, acts of nature or any other cause Madison, WI 53708 beyond Therma-Stor LLCs reasonable control.
  • Page 9 Santa Fe HC Owners Manual...
  • Page 10 PO Box 8050 1919 S. Stoughton Road Madison, WI 53708 Information in this document is subject to change without notice. Phone: 608-222-5301 No part of this document may be reproduced or transmitted in any Fax: 608-222-1447 form or by any means, electronic or mechanical, for any purpose, Web: www.thermastor.com without the express written permission of Therma-Stor LLC.
