Therma-Stor Santa Fe Installation, Operation & Service Instructions




ULTRA EFFICIENT DEHUMIDIFIER
Santa Fe Dehumidifier Installation, Operation & Service Instructions

Table of Contents

1. Specifications....................................................... 1
2. Installation ............................................................ 1
2.1 Location ............................................................ 1
2.1A In humid area, no ducting............................ 1
2.1B In humid area, duct inlet and/or outlet . .......... 1
2.1C In remote area, duct inlet & outlet. .............. 2
2.1D In remote area, duct outlet only. ................. 2
2.1E In remote area, duct inlet only. .................... 2
2.2 Electrical Requirements .................................... 2
2.3 Condensate Removal ........................................ 2
2.4 Ducting .............................................................. 2
2.4A Optional Ducting ......................................... 2
2.4B Ducting for Dehumidification ....................... 2
2.4C Ducting for Fresh Air ................................... 3
3. Operation .............................................................. 3
3.1 Humidity Control Adjustment ............................. 3
3.2 Fan Switch......................................................... 3
4. Maintenance ......................................................... 3
4.1 Air Filter ............................................................. 3
4.2 Blower Oiling ..................................................... 3
5. Service .................................................................. 4
5.1 Warranty............................................................ 4
5.2 Technical description......................................... 4
5.3 Troubleshooting................................................. 4
5.4 Refrigerant Charging ......................................... 5
5.5 Blower Replacement ......................................... 5
5.6 Compressor/Capacitor Replacement ................ 5
5.6A Checking Compressor Motor Circuits ......... 5
5.6B Replacing a Burned Out Compressor ......... 6
5.6C Replacing a Compressor- Nonburn Out ......... 6
5.7 Humidity Control ................................................ 7
5.8 Defrost Thermostat............................................ 7
6. Wiring Diagrams................................................... 8
7. Service Parts List ................................................. 9
Serial No. ________________________________
Purchase Date ____________________________
Dealer's Name ____________________________


A Division of DEC International
PO Box 8050, Madison, WI 53708
Toll Free 1-800-533-7533
Local 1-608-222-5301
Read the installation, operation and maintenance
instructions carefully before installing and using this
unit. Proper adherence to these instructions is essential
to obtain maximum benefit from your Santa Fe
dehumidifier.

1 Specifications

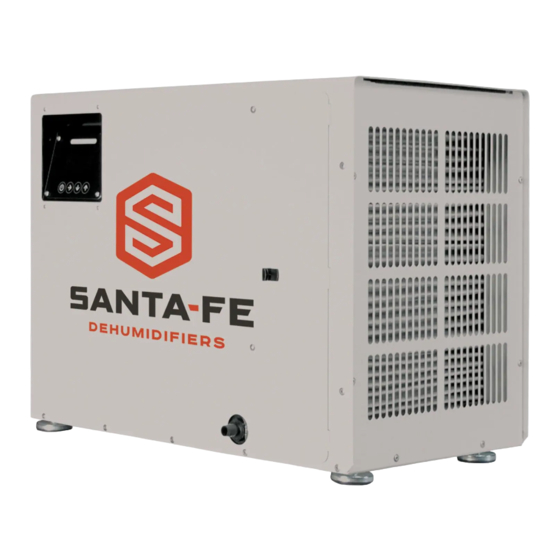

Model: Santa Fe Dehumidifier
Electrical: 110-120 VAC, 6.8 Amps, grounded
Capacity: 100 pints/day @ 80°F, 60% RH
Operating Temp. Range: 53°F min, 105°F max
Air Flow: 255 CFM without external ducting
170 CFM @ .15 IWG external static
Refrigerant Charge: 1 lbs., 14oz. R-22
Optional Duct connections: 8" round inlet & outlet
Size (w/o duct collars):
Weight: 103 lbs.

2 Installation

2.1 Location

The Santa Fe can be installed in a variety of locations
to meet the owner's needs as listed below. In all cases,
keep the following cautions in mind:
•
It is designed to be installed INDOORS ONLY.
•
If used near a pool or spa, be certain there is NO
chance the unit could roll into the water or be
splashed and that it is plugged into a GROUND
FAULT INTERRUPTER.
• • • •
DO NOT use the Santa Fe as a bench or table.
•
Avoid discharging the air directly at people,
especially in pool areas.

2.1A In humid area, no ducting.

The simplest installation is to place the Santa Fe in the
humid area with no ducting. The air inlet on top & outlet
on the side must be at least 1' from walls and other
obstructions to air flow.

2.1B In humid area, duct inlet and/or outlet.

If the humid area is very large or has high ceilings,
dehumidification can be improved by adding an inlet
and/or outlet duct to circulate and destratify stagnant
areas. For a large area, add inlet or outlet ducting to
create flow across the area's greatest length.
For areas with ceilings higher than 12', use an inlet
duct to draw warm, moist air from near the ceiling. See
section 2.4 for attaching duct collars & ducting.


20" long x 17" wide x 36" high
Lit. No. TS-192D-0600
