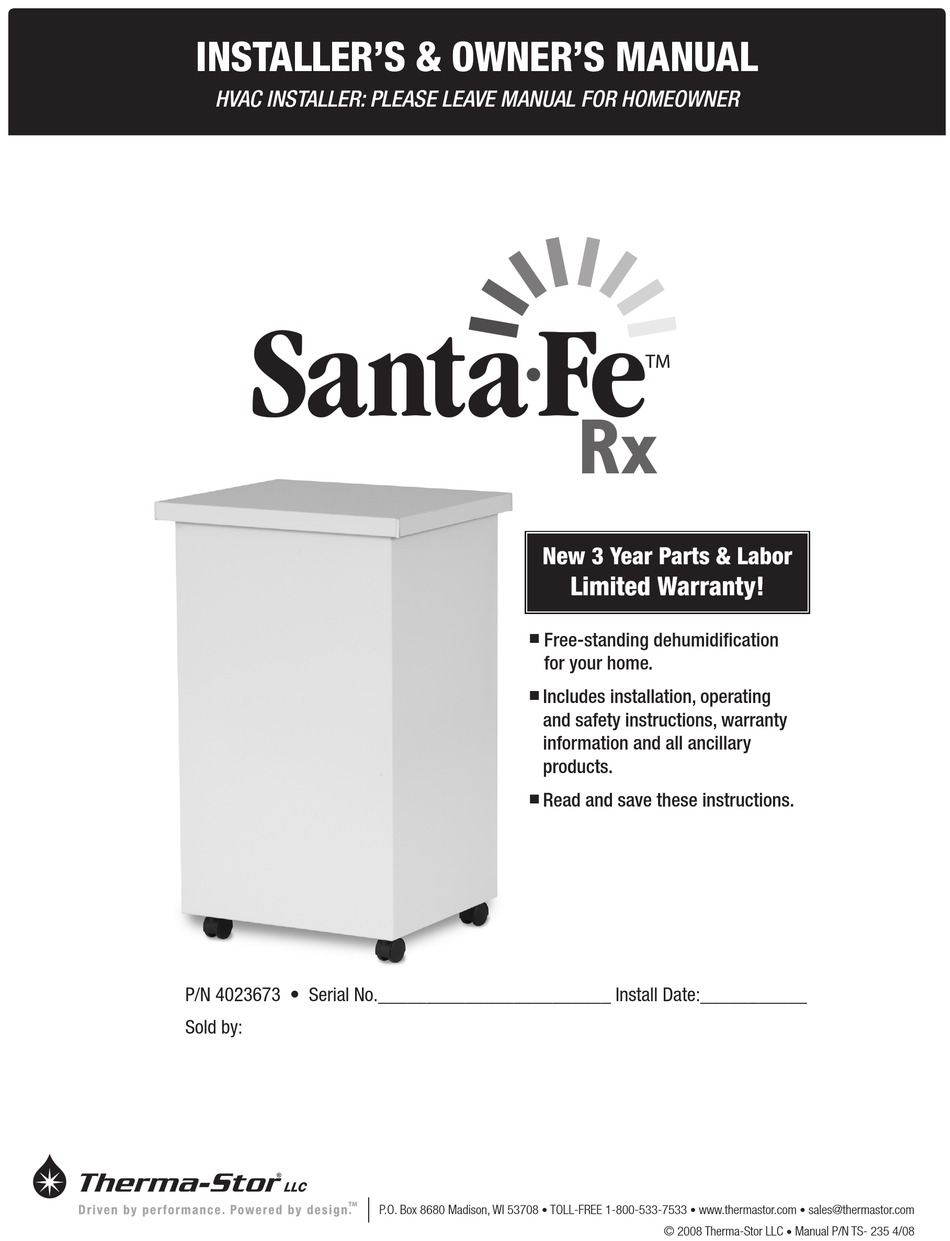

INSTALLER'S & OWNER'S MANUAL
HVAC INSTALLER: PLEASE LEAVE MANUAL FOR HOMEOWNER
P/N 4023673 • Serial No.________________________ Install Date:___________
Sold by:
For small usage:
Free-standing dehumidification
n
for your home.
Includes installation, operating
n
and safety instructions, warranty
information and all ancillary
products.
Read and save these instructions.
n
P.O. Box 8680 Madison, WI 53708
TOLL-FREE 1-800-533-7533
•
Rx
Rx
www.thermastor.com
•
© 2008 Therma-Stor LLC
sales@thermastor.com
•
Manual P/N TS- 235 4/08
•
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Therma-Stor Santa-Fe Santa-Fe Rx Free-Standing Dehumidification
Summary of Contents for Therma-Stor Santa-Fe Santa-Fe Rx Free-Standing Dehumidification
- Page 1 INSTALLER’S & OWNER’S MANUAL HVAC INSTALLER: PLEASE LEAVE MANUAL FOR HOMEOWNER P/N 4023673 • Serial No.________________________ Install Date:___________ Sold by: For small usage: Free-standing dehumidification for your home. Includes installation, operating and safety instructions, warranty information and all ancillary products. Read and save these instructions.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Table of Contents 1. Specifications ... 2 2. Installation ... 2 2.1 Location ... 2 2.2 Electrical Requirements ... 2 2.3 Condensate Removal ... 3 2.4 Optional Reservoir Container ... 3 2.5 Safety Overflow Switch ... 3 3. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS 2. Installation 2.1 Location The Santa Fe Rx is designed to be installed indoors. Ideal for living spaces and finished basements. CAUTION! • Installation outdoors, in a crawlspace or near a pool or spa will void factory warranty. •... -
Page 4: Maintenance
FOR HVAC INSTALLER ONLY 4. Maintenance 4.1 Air Filter The Santa Fe Rx is equipped with a standard MERV 11 65% efficient disposable pleated fabric air filter. Optional 95% efficiency, 99.97% efficiency HEPA grade and activated carbon filters are available (see Section 4.1A). The standard filter is located beneath the removable top. -
Page 5: Troubleshooting
FOR HVAC INSTALLER ONLY through a filter/drier and capillary tubing which cause the refrigerant pressure and temperature to drop. It next enters the evaporator coil where it absorbs heat from the incoming air and evaporates. The evaporator operates in a flooded condition, which means that all the evaporator tubes contain liquid refrigerant during normal operation. -
Page 6: A Replacing A Burned Out Compressor
FOR HVAC INSTALLER ONLY 2. Plug in the unit and turn the humidity control to ON. If the compressor tries to start but cycles on the over load, go to step 4. If the compressor remains silent, check for 110 volts from compressor terminal R to overload terminal 3 using an AC voltmeter. - Page 7 SANTA FE Rx WIRING DIAGRAM REV. PART NO. Made in U.S.A. 4023857 Therma-Stor LLC, Madison, WI 53708 • 800-533-7533 www.thermastor.com Santa Fe Rx Installer’s & Owner’s Manual...
-
Page 8: Relay
SANTA FE Rx SERVICE PARTS LIST ITEM PART NO. QTY. DESCRIPTION 4022254 Accumulator 4021475 Air Filter, 2 x 16 x 20 Nominal 4024145 Air Filter, 4 x 20 x 32 Nominal, HEPA (optional, requires kit, Item 3) 4022164 Air Filter, 4 x 16 x 20 Nominal, 95% (optional, requires kit, Item 3) 4023869 Air Filter Frame Kit (optional)(not shown) -
Page 9: Filter Frame Assembly
SANTA FE Rx FILTER FRAME ASSEMBLY This kit attaches to the back of the Santa Fe Rx. The back is the side where the air comes out of the lower section. 1. Remove the protective plastic from the frame top & sides. Assemble the frame top (Item 1) &... -
Page 10: Set-Up Instructions
SANTA FE Rx SET UP INSTRUCTIONS Before operating this unit, please read the Installers & Owners Manual. How to prepare the Santa Fe Rx for operation 1. Locate the unit per the manual. 2. Cut the cable tie holding the cord and hose on top. 3. -
Page 11: Warranty
Limited Warranty. Therma-Stor, LLC (“Therma-Stor”) warrants as follows: (i) the Santa Fe Rx dehumidifier (“Product”) will be free of material defects in workmanship or materials for a period of three (3) years (“Three-Year Warranty”) following the date of initial purchase of such Product by an original customer purchasing from Therma- Stor or an authorized reseller (“Customer”);... - Page 12 PO Box 8680 • Madison, WI 53708 Phone: 608-222-5301 • Fax: 608-222-1447 Web: www.thermastor.com • Email: sales@thermastor.com Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Therma-Stor LLC.
