VERTICAL LASER LINES
...
 
...
 

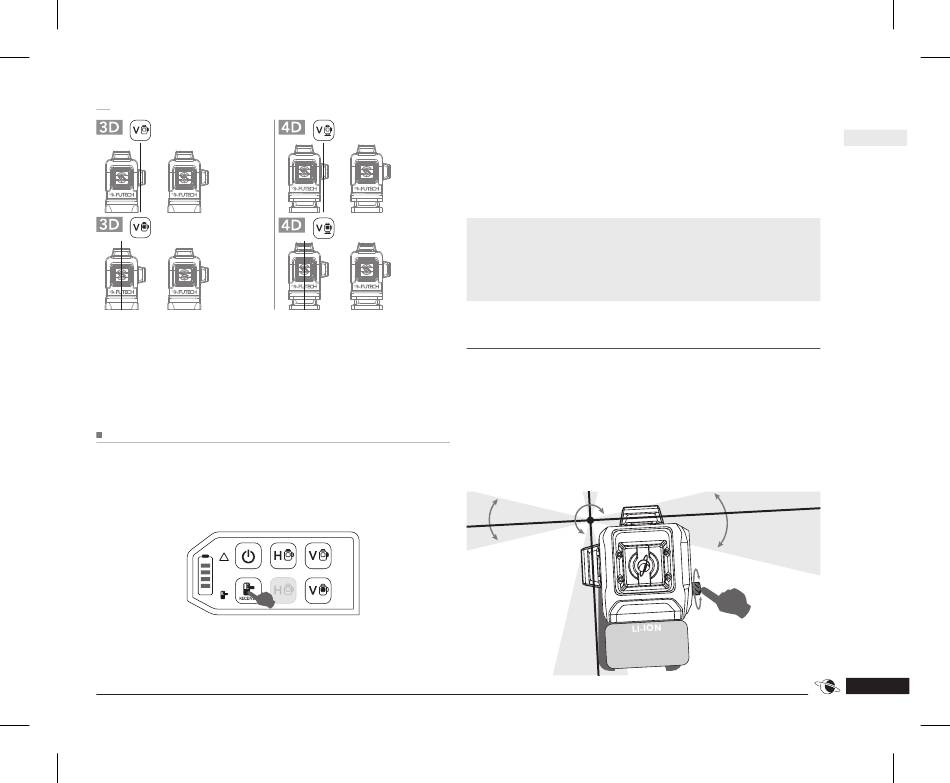

· Press the Front vertical laser line button [D] to
activate the front vertical laser line
· Press the Side vertical laser line button [E] to
activate the side vertical laser line.
RECEIVER MODE
If the workplace is brightly lit, e.g. outdoors in the
sun, it may be necessary to use a laser receiver.
!
· Press the Receiver mode button [C] to turn on
the receiver mode.
When this mode is activated, the receiver
indicator [I] will light up. At this moment,
laserlines can be detected by the laser receiver.
· Press the receiver mode button [C] again to
... turn off the receiver mode.
 
NOTE
All Futech laser will use 10Khz as frequency in
receiver mode. Only receivers that can detect
laser lines at 10KHz are compatible.
...
 

FINE ADJUSTMENT

You can turn the fi ne adjustment wheel [05]
to get the vertical laser lines in the right place.
The laser will rotate around the crossing of the
two vertical lines. When you feel the brake, stop
turning the fi ne adjustment wheel [05].
±6°
7
