Summary of Contents for Akuvox R27 Series

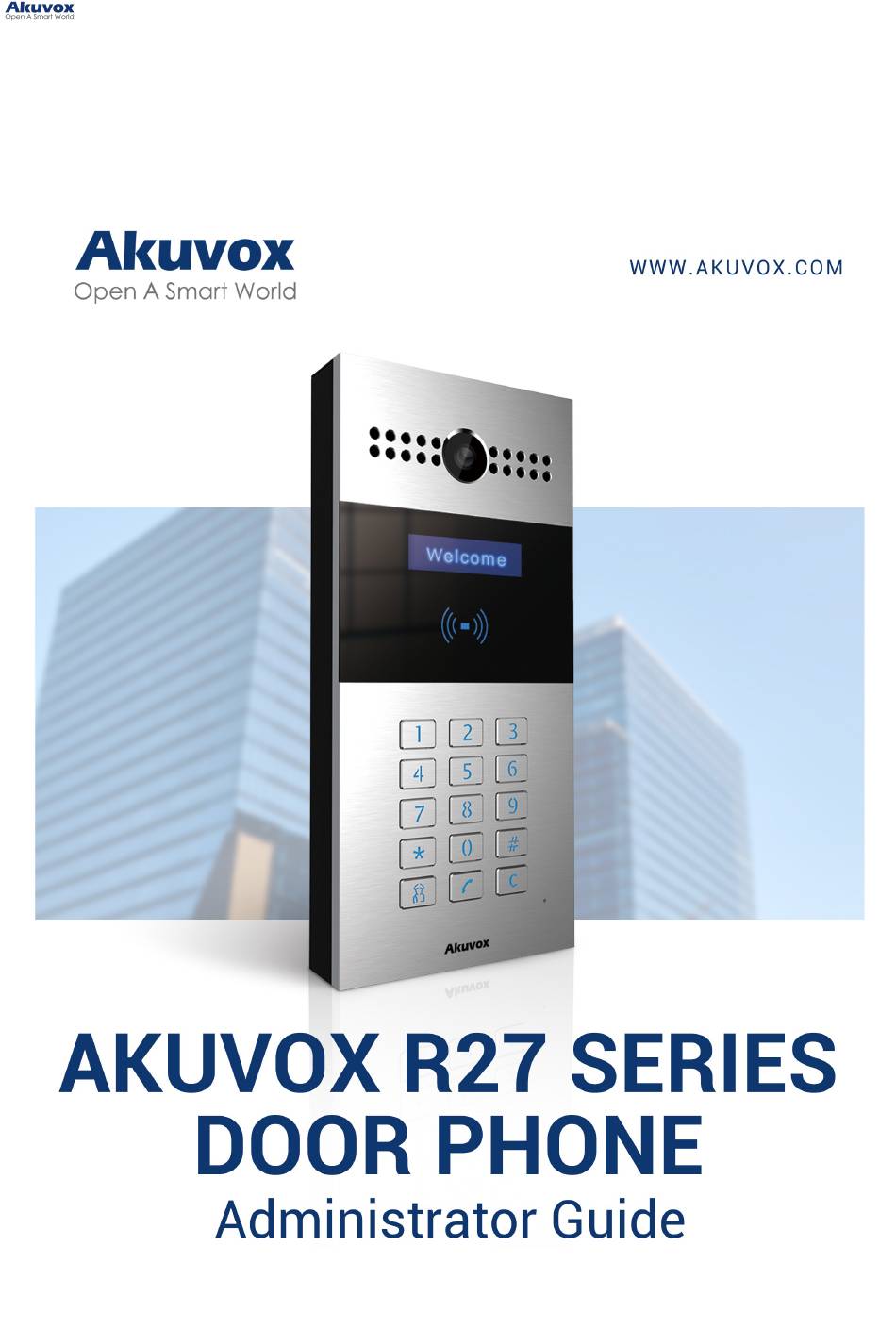

  • Page 1 About This Manual About This Manual...
  • Page 2 Thank you for choosing Akuvox R27 series door phones. This manual is intended for the administrators who need to properly configure the door phone. This manual applies to the 227.30.10.2 version, and it provides all the configurations for the functions and features of the Akuvox door phone.

  • Page 3: Product Overview

    The security that comes with being able to control who comes into your building along with the ability to verbally and visually confirm their identity is immeasurable. Akuvox R27 is a SIP-compliant, hands-free, and video(optional) door phone. It can be connected with Akuvox indoor monitors for remote access controlling and monitoring.

  • Page 4: Change Log

    Change Log Change Log High Security Mode.

  • Page 5: Model Specification

    Model Specification Model Specification Model Model Camera 2 Megapixels, automatic lighting Relay In Relay Out ✔ RS485 ✔ Card Reader...
  • Page 6 Introduction to Configuration Menu Introduction to Configuration Menu Status Status: this section gives you basic information such as product information, Network Information, account information, etc. Intercom Intercom: this section covers Intercom settings, Call Logs, etc. Account Account: this section concerns the SIP account, SIP server, proxy server, transport protocol type, audio&video codec, DTMF, session timer, etc.

  • Page 8: Access The Device

    Access the Device Access the Device Access the Device Access the Device Door phones' system settings can be either accessed on the device directly or on the device web interface. Obtain Device IP Address Obtain Device IP Address Searching the device IP by the IP scanner in the same LAN network. Just click the Scan Scan tab in the IP scanner to check the device IP.
  • Page 9 The initial user name and password are both admin admin, and please be case-sensitive to the user names and passwords entered. Note: Note: You can obtain the device IP address using the Akuvox IP scanner to log in to the device web interface. Download IP scanner: https://knowledge.akuvox.com/docs/akuvox-ip-scanner?highlight=IP https://knowledge.akuvox.com/docs/akuvox-ip-scanner?highlight=IP See detailed guide: https://knowledge.akuvox.com/v1/docs/en/how-to-obtain-ip-address-via-ip-...

  • Page 10: Language Setting

    Language and Time Setting Language and Time Setting Language Setting Language Setting To set up the language you need, go to Phone > Time/Lang Phone > Time/Lang . Parameter Set-up : Parameter Set-up Type Type : choose a suitable web language. Normally, English is the default language of web. Time Setting Time Setting To set up the device time, go to Phone >...
  • Page 11 Screen Display and LED Setting Screen Display and LED Setting LED Setting on Card Reader Area LED Setting on Card Reader Area You can enable or disable the LED lighting on the card reader area as needed on the web interface. Meanwhile, if you do not want to have the LED light on the card reader area stay on, you can also set the timing for the exact time span during which the LED light can be disabled in order to reduce electrical power consumption.
  • Page 12 LED Settings on Screen LED Settings on Screen You can enable or disable the LED lighting of the screen as needed on the web interface. Meanwhile, if you prefer not to have the LED light on the screen stay on, you can also set the timing for the exact time span during which the LED light can be enabled in order to reduce the electrical power consumption, etc.

  • Page 13: Volume Configuration

    Volume and Tone Configuration Volume and Tone Configuration Volume and tone configuration include microphone volume, the AD volume, keypad volume, speaker volume, tamper alarm volume, and open-door tone configuration. Moreover, you can upload the tone you like to enrich your personalized user experience. Volume Configuration Volume Configuration You can configure the Mic volume according to your need for open-door notification.
  • Page 14 Parameter Set-up : Parameter Set-up Open Door Inside Tone Open Door Inside Tone : enable it so that you can hear the open door tone when you open the door by pressing the exit button. Open Door Outside Tone Open Door Outside Tone : enable it so that you can hear the open door tone when you open the door using the access method on the door phone.
  • Page 15 You can customize the tone of door open successful/failed if you need. Please follow the prompt about the file size and format. On the web, navigate to Phone > Audio Phone > Audio . Parameter Set-up : Parameter Set-up Open Door Succeeded Outside Warning Open Door Succeeded Outside Warning : upload the open door success tone which you can hear when you open the door using the access method on the door phone.

  • Page 16: Network Setting

    Network Setting Network Setting Network Status Network Status To check the network status on the web Status > Network Information Status > Network Information interface. Device Network Configuration Device Network Configuration To ensure normal functioning, make sure that the device has its IP address set correctly or obtained automatically from the DHCP server.
  • Page 17 Device Deployment in Network Device Deployment in Network To facilitate device control and management, configure Akuvox intercom devices with details such as location, operation mode, address, and extension numbers. So, you can do it on web Network > Advanced > Connect Setting Network >...

  • Page 18: Nat Setting

    Device Extension Device Extension: enter the device extension number for the device you installed. Device Location Device Location: enter the location in which the device is installed and used. Device Local RTP Configuration Device Local RTP Configuration Real-time Transport Protocol(RTP RTP ) lets devices stream audio and video data over a network in real time.

  • Page 19: Snmp Setting

    Parameter Set-up : Parameter Set-up UDP Keep Alive Messages UDP Keep Alive Messages: if enabled, the device will send out the message to the SIP server so that the SIP server will recognize if the device is in online status. UDP Alive Messages Interval UDP Alive Messages Interval: set the message sending time interval from 5-60 seconds, the default is 30 seconds.
  • Page 20 To do the configuration on the web Network > Advanced > VLAN Network > Advanced > VLAN interface. Parameter Set-up : Parameter Set-up VID : to configure the VLAN ID for the designated port. Priority Priority: to select VLAN priority for the designated port. TR069 Setting TR069 Setting TR-069 (Technical Report 069) provides the communication between Customer-Premises...
  • Page 21 ACS/CPE ACS/CPE : ACS is short for auto-configuration servers on the server side, and CPE is short for customer-premise equipment as client-side devices. URL : to configure URL address for ACS or CPE. Periodic Interval Periodic Interval: to configure the interval for periodic notifications. Note: Note: TR-069 is a technical specification entitled CPE WAN Management Protocol...
  • Page 22 SIP Account Registration SIP Account Registration Each device needs a SIP account to make and receive SIP calls. Akuvox intercom devices support the configuration of two SIP accounts, which can be registered under two independent servers. Configure SIP Account Configuration...

  • Page 23: Sip Server Configuration

    SIP servers enable devices to establish and manage call sessions with other intercom devices using the SIP protocol. They can be third-party servers or built-in PBX in Akuvox indoor monitor. To do this configuration on web Account > Basic > SIP Server Account >...
  • Page 24 Port: enter the port number for establishing call sessions via the backup outbound proxy server. Configure Data Transmission Type Configure Data Transmission Type Akuvox intercom devices support four data transmission protocols: User Datagram User Datagram Protocol(UDP), Transmission Control Protocol(TCP Protocol(UDP)
  • Page 25 To do this configuration on web Account > Basic > Transport Type Account > Basic > Transport Type interface. Parameter Set-up : Parameter Set-up UDP : select UDP UDP for unreliable but very efficient transport layer protocol. UDP is the default transport protocol.

  • Page 26: Speed Dial Call

    Internet phone eavesdropping is a network attack that allows unauthorized parties to intercept and access the content of the communication sessions between intercom users. This can expose sensitive and confidential information to the attackers. SIP hacking protection is a technique that secures SIP calls from being compromised on the Internet.
  • Page 27 Sequence Call is a feature that allows you to dial a group of numbers in a predefined order until one of them answers. This feature is supported by Akuvox SmartPlus, which provides a set of sequence call numbers for the application.
  • Page 28 To do the configuration on the web Intercom > Basic > Manager Dial Intercom > Basic > Manager Dial interface. Parameters Set-up : Parameters Set-up Call Type Call Type : select Sequence Call Sequence Call. Call Timeout (Sec) Call Timeout (Sec): set the call timeout before calling the next called party when the first called party does not receive the call within the timeout.
  • Page 29 To do the configuration on the web Intercom > Basic > Web Call Intercom > Basic > Web Call interface. Parameters Set-up : Parameters Set-up Auto/Account1/Account2 Auto/Account1/Account2 : to choose a suitable SIP account to make a web call. If you call using an IP address, account selection is not needed here.

  • Page 30: Auto Answer

    To configure the number replacement on the device, navigate to Phone > Dial Plan Phone > Dial Plan, then click Add . To replace the number in batch, you can import the .xml file to the door phone. And the file from the door phone can be exported out before importing them to other door phones.
  • Page 31 To enable this feature on web Account > Advanced > Call Account > Advanced > Call interface, you can set up the related parameters on web Phone > Call Feature> Auto Answer Phone > Call Feature> Auto Answer . Parameters Set-up: Parameters Set-up: Auto Answer Delay Auto Answer Delay: set up the delay time (from 0-5 sec.) before the call can be...
  • Page 32 To do the configuration on the web Phone > Multicast Phone > Multicast interface. Parameters Set-up : Parameters Set-up Multicast Priority Paging Barge Multicast Priority Paging Barge : multicast or how many multicast calls are higher priority than SIP calls, if you disable paging priority, SIP calls will have high priority. Paging Priority Enabled Paging Priority Enabled : multicast calls are called in order of priority or not.
  • Page 33 The door phone allows you to set up the call time duration in receiving the call from the calling device as the caller side might forget to hang up the intercom device. When the call time duration is reached, the door phone will terminate the call automatically. To do this configuration on the web Intercom >...
  • Page 34 door phone in 60 seconds. 60 seconds is the dial-in time duration by default. Dial out Time Dial out Time : enter the dial-in time duration for your door phone (ranging from 5-120 sec). For example, if you set the dial-out time duration as 60 seconds on your door phone, then the door phone will hang out the call it dialed out automatically if the call is not answered by the device being called.

  • Page 35: Audio Codec Configuration

    Audio & Video Codec Configuration Audio & Video Codec Configuration Audio Codec Configuration Audio Codec Configuration The door phone supports three types of Codec (PCMU, PCMA, and G722) for encoding and decoding the audio data during the call session. Each type of Codec varies in terms of sound quality.
  • Page 36 Video Codec Configuration Video Codec Configuration The door phone supports the H264 codec that provides better video quality at a much lower bit rate with different video quality and payload. To set up video codec on web Account > Advanced Account >...
  • Page 37 Parameter Set-up : Parameter Set-up Type Type : select DTMF mode among six options: Inband, RFC2833, Info, Info+Inband, Inband, RFC2833, Info, Info+Inband, Info+Inband+RFC2833 Info+Inband+RFC2833 , and Info+RFC2833 Info+RFC2833 based on the specific DTMF transmission type of the third party device to be matched with as the party for receiving signal data. How to Notify DTMF How to Notify DTMF : select among four types: Disable, DTMF, DTMF-Relay Disable, DTMF, DTMF-Relay, and...

  • Page 38: Managing Contacts

    Contact List Configuration Contact List Configuration Managing Contact Group Managing Contact Group You can create and edit a contact group for the contacts. The contact group will be used when you are adding a user. Navigate to Contacts > Contacts List > Group Contacts >...
  • Page 39 You can search, create, display, edit and delete the contacts in your phone book. Contacts > Contacts > Contact List. Contact List Parameters Set-up ： Parameters Set-up Contact Contact: you can choose to show all contact information or one group's contact information.
  • Page 40 before uppercase. If Room Number Room Number is selected, sort by room name. If there is no room name, the room number is taken as the room name by default. The room number is available after enabling Cloud contact. If Import Import is selected, sort by contacts in the imported file.

  • Page 41: Relay Setting

    Relay Setting Relay Setting Relay Switch Setting Relay Switch Setting You can configure the relay switch(es) and DTMF for the door access on the web Intercom Intercom > Relay interface. > Relay Parameter Set-up : Parameter Set-up Type Type : if Default State Default State is selected, Low in the Relay Status field means the door is closed, High means the door is opened.
  • Page 42 Hold Delay (Sec) Hold Delay (Sec): set the relay hold delay timing (Ranging from 1-10 Sec). For example, if you set the hold delay time as 5 5 Sec. Then the relay will be delayed for 5 seconds after the door is unlocked. DTMF Mode DTMF Mode : select the number of DTMF digits for the door access control (Ranging Ranging...
  • Page 43 Security Relay Setting Security Relay Setting The Security Relay, known as Akuvox SR01, is a product designed to bolster access security by preventing unauthorized forced entry attempts. Installed inside the door, it directly governs the door opening mechanism, ensuring that the door remains secure even in the event of damage to the device.
  • Page 44 Parameter Set-up : Parameter Set-up Connect Type Connect Type : select the connection type between the security relay and the door phone. You can select connection via the door phone Relay A Power Output or RS485. Trigger Delay (Sec) Trigger Delay (Sec): set the relay trigger delay timing (ranging from 1-10 Sec.) For example, if you set the delay time as 5 sec.
  • Page 45 example, you are required to set the 3-digit DTMF code if DTMP Mode is set as 3- digits. Relay Name Relay Name : give a name to the relay if needed. And relay name can be edited on the SmartPlus cloud and SDMC. W eb Relay Setting W eb Relay Setting A web relay has a built-in web server and can be controlled via the Internet or a local network.
  • Page 46 Web relay needs to be set up on the web Phone > WebRelay Phone > WebRelay interface. Parameter Set-up : Parameter Set-up Type Type : select among three options Disabled, WebRelay Disabled, WebRelay, and Both Both. Select Web relay to enable the web relay.
  • Page 47 For example, Http://admin:admin@192.168.1.2/state.xml?relayState=2. ( HTTP://:@IP address>/state.xml?relayState=2) b. If you have already filled in the IP address above, fill in the omitted HTTP command, eg. state.xml?relayState=2. Web Relay Key Web Relay Key: it can be null or enter the configured DTMF code, when the door is unlocked via the DTMF code, the action command will be sent to the web relay automatically.
  • Page 48 Door Access Schedule Management Door Access Schedule Management Configure Door Access Schedule Configure Door Access Schedule A door access schedule lets you decide who can open the door and when. It applies to both individuals and groups, ensuring that users within the schedule can only open the door using the authorized method during designated time periods.
  • Page 49 To do this configuration on web Intercom > Schedule Intercom > Schedule interface. To create a daily schedule, you can do as follows: To create a daily schedule, you can do as follows: Parameters Set-up : Parameters Set-up Schedule Type Schedule Type : set the type of time period.
  • Page 50 when the Week and Normal types are selected. Date Range Date Range : set the corresponding date. This field will only be displayed when the Normal type is selected. Import and Export Door Access Schedule Import and Export Door Access Schedule You can create door access schedules one by one or in bulk.
  • Page 51 Door Unlock Configuration Door Unlock Configuration Akuvox door phone offers you two types of door access via PIN code and RF card. You can configure them on the device and web interface. Moreover, you can import or export the configured files to maximize your RF card configuration efficiency.
  • Page 52 You can enable or disable the IC and ID card function if needed. You can navigate to Intercom > Intercom > Card Setting . Card Setting Mifare Card Encryption Mifare Card Encryption The door phone can encrypt Mifare cards for greater security. When this feature is enabled, it reads the data in the cards’...
  • Page 53 You can tap the RF card on the reader and click obtain to add an RF card for the user. Path: Intercom > User. Intercom > User Parameter Set-up : Parameter Set-up User ID User ID : enter the user ID. The user ID is 11 digits maximum in length and can not be reused for other users.
  • Page 54 Import and Export User Data of Access Control The door phone supports User Data of access control to be shared among Akuvox door phones through import and export while you can also export the facial data out of the door phone and then import it to a third-party device.
  • Page 55 Configure Open Relay via HTTP for Door Unlock Configure Open Relay via HTTP for Door Unlock You can unlock the door remotely without approaching the device physically for door entry by typing in the created HTTP command (URL) on the web browser to trigger the relay when you are not available by the door for door entry.
  • Page 56 Go to Intercom > Input Intercom > Input interface. Parameter Set-up : Parameter Set-up Trigger Electrical Level Trigger Electrical Level: select the trigger electrical level options between High High and Low according to the actual operation on the exit button. Action to Execute Action to Execute : select the method to carry out the action: FTP, Email, HTTP, TFTP, FTP, Email, HTTP, TFTP,...
  • Page 57 To do this configuration on the web Intercom > PIN Setting > Public PIN Intercom > PIN Setting > Public PIN interface. Parameter Set-up : Parameter Set-up PIN Code PIN Code : customize 3-8 digit numbers for the public key value. Configure Private PIN Code on the Web Interface Configure Private PIN Code on the Web Interface On the web interface, you can create the PIN code and customize additional settings, such as...
  • Page 58 Parameter Set-up : Parameter Set-up Code Code : enter the user’s private PIN. After user information and PIN code are entered, you can scroll down to Access Setting Access Setting and configure private PIN code access control. Parameter Set-up : Parameter Set-up Relay Relay: select the relay(s) that you want to apply the private PIN code for the door unlock.
  • Page 59 Configure NFC for Unlock Configure NFC for Unlock NFC (Near Field Communication) is a popular way for door access. It uses radio waves for data transmission interaction. The device can be unlocked by NFC. You can keep the mobile phone closer to the device for door access.
  • Page 60 Web Server Certificate Web Server Certificate It is a certificate sent to the client for authentication when the client requests an SSL connection with the Akuvox door phone. Please upload the certificates in accepted formats.

  • Page 61: Client Certificate

    Security > Advanced > Web Server Certificate . Server Certificate Client Certificate Client Certificate This certificate verifies the server to the Akuvox door phone when they want to connect using SSL. The door phone verifies the server's certificate against its client certificate list.
  • Page 62 To upload and configure client certificates on the same page. Parameter Set-up : Parameter Set-up Index Index: select the desired value from the drop-down list of Index. If you select Auto Auto value, the uploaded certificate will be displayed in numeric order. If you select values from 1 1 to 10 , the uploaded certificate will be displayed according to the value that the user selected.

  • Page 63: Configure Motion Detection

    Before applying for a SIP account from a SIP or a DNS server using the TLS protocol, you'll need to upload a TLS certificate. This certificate is essential for server authentication. To upload the TLS certificate, go to Security > Advanced > SIP Server Certificate Security >...
  • Page 64 moving objects. And select Video Detection Video Detection to enable the video-based motion detection during the monitoring of the suspicious moving object. Timing Interval Timing Interval: the absolute triggering interval is 3 seconds. If you select a number greater than 3 seconds, then it requires a second triggering interval to trigger the alarm. For example, if you select 3 seconds, then the alarm will be triggered when a moving object is detected one time from 0 to 3 seconds (triggered any time from 0 to 3 seconds).
  • Page 65 SMTP Password SMTP Password : configure the password of the SMTP service, which is the same as the sender’s email address. Email Test Email Test: click to test if the email can be sent and received. FTP Notification Setting FTP Notification Setting To get notifications through FTP server, you need to set up the FTP settings.
  • Page 66 Enable this feature if you want to be notified when any outgoing calls from the door phone are not answered. The notification is made via FTP, Email, and HTTP. On the web, navigate to Intercom > Intercom > Basic > Call Event. Basic >...

  • Page 67: Action Url

    You can use the device to send specific HTTP URL commands to the HTTP server for certain actions. These actions will be triggered when the relay status, input status, PIN code, or RF card access changes. Akuvox Action URL: Akuvox Action URL:...
  • Page 68 Event Parameter format Example Make Call $remote Http://server ip/ Callnumber=$remote Hang Up $remote Http://server ip/ Callnumber=$remote Relay Triggered $relay1status Http://server ip/ relaytrigger=$relay1status Relay Closed $relay1status Http://server ip/ relayclose=$relay1status Input Triggered $input1status Http://server ip/ inputtrigger=$input1status Input Closed $input1status Http://server ip/ inputclose=$input1status Valid Code Entered $code Http://server ip/...

  • Page 69: Voice Encryption

    Path: Phone > Action URL Phone > Action URL . Voice Encryption Voice Encryption Secure Real-time Transport Protocol (SRTP) is a protocol derived from the Real-time Transport Protocol (RTP). It enhances the security of data transmission by providing encryption, message authentication, integrity assurance, and replay protection.

  • Page 70: User Agent

    Parameter Set-up : Parameter Set-up User Agent User Agent : support to enter another specific value, it is Akuvox by default. High Security Mode High Security Mode High security mode is designed to enhance the security. It employs encryption across various facets, including the communication process, door opening commands, password storage methods, and more.
  • Page 71 If the mode is off, the device can use both the new formats above and the old format below: l http://deviceIP/fcgi/do? action=OpenDoor&UserName=username&Password=password&DoorNum=1 4. It is not allowed to import/export configuration files in tgz. format between a device with the high security mode and another one without it. For assistance with file transfer, please contact Akuvox technical support.
  • Page 72 MJPEG, or Motion JPEG, is a video compression format that uses JPEG images for each video frame. Akuvox devices display live streams on the web interface and capture monitoring screenshots in MJPEG format. Settings related to MJPEG determine video quality and the on/off status of the live stream function.
  • Page 73 You are required to set up the RTSP function on the device web Intercom > RTSP > RTSP Intercom > RTSP > RTSP Basic interface in terms of RTSP authorization, authentication, and password, etc. before you are Basic able to use the function. Parameter Set-up : Parameter Set-up RTSP Authorization Enabled...
  • Page 74 Video Enabled : the door phone can send video information to the monitor. After enabling the RTSP feature, the video RTSP is enabled by default and cannot be modified. 2nd Video2 Enabled 2nd Video2 Enabled : Akuvox door phones support 2 RTSP streams, you can enable the second one. Audio Codec Audio Codec: choose a suitable audio codec for RTSP audio.
  • Page 75 Parameter Set-up : Parameter Set-up Video Resolution Video Resolution: select video resolutions among six options: QCIF, QVGA, CIF, QCIF, QVGA, CIF, VGA, 4CIF VGA, 4CIF , and 720P 720P . The default video resolution is 4CIF 4CIF . and the video from the door phone might not be able to be shown on the indoor monitor if the resolution is set higher than 4CIF 4CIF .
  • Page 76 Go to Intercom > RTSP > RTSP Basic Intercom > RTSP > RTSP Basic and Intercom > RTSP > MJPEG Video Intercom > RTSP > MJPEG Video Parameters interface. Parameters Parameter Set-up : Parameter Set-up MJPEG Authorization MJPEG Authorization : tick it to access device video or real-time screenshots through a browser (http address such as: http://device IP:8080/video.cgi (dynamic video), http://device IP:8080/jpeg.cgi (static screenshot) ).
  • Page 77 ONVIF ONVIF You can access the real-time video from the device's camera using the Akuvox indoor monitor or other third-party devices like Network Video Recorder(NVR NVR). Enabling and setting up the ONVIF function on the device will allow its video to be visible on other devices.

  • Page 78: Live Stream

    Note: Note: Fill in the specific IP address of the door phone in the URL. Live Stream Live Stream There are two ways to check the real-time video from the device. One is to go to the device web interface and view the video there. The other is to enter the correct URL on the web browser and access the video directly.
  • Page 79 Logs Logs Call Logs Call Logs If you want to check on the calls inclusive of the dial-out calls, received calls, and missed calls in a certain period of time, you can check and search the call log on the device web interface and export the call log from the device if needed.
  • Page 80 incoming calls. Name/Number Name/Number: select the Name Name and Number Number options to search call log by the name or by the SIP or IP number. Door Logs Door Logs If you want to search and check on the various types of door access history, you can search and check the door logs on the device's web.
  • Page 81 Name/Code Name/Code : select the Name Name and Code Code options to search door log by the name or by the PIN code. Index Index: the order of the call logs. Name Name : if it is a locally added key or card, the corresponding added name will be displayed.

  • Page 82: System Log

    Parameter Set-up Log Level Log Level: select log levels from 1 to 7 levels. You will be instructed by Akuvox technical staff about the specific log level to be entered for debugging purposes. The default log level is 3 3 , the higher level is 5 5 , and the more complete log is 7 7 .
  • Page 83 PCAP PCAP PCAP is used to capture the data package going in and out of the devices for debugging and troubleshooting purposes. You can set up the PCAP on the device web Upgrade > Advanced > PCAP Upgrade > Advanced > PCAP interface properly before using it.

  • Page 84: Firmware Upgrade

    Firmware Upgrade Firmware Upgrade Akuvox devices can be upgraded on the device web interface. Go to Upgrade > Basic Upgrade > Basic interface. Parameter Set-up : Parameter Set-up Upgrade Upgrade : choose .rom firmware from your PC, then click Submit Submit to update.
  • Page 85 Backup Backup You can import or export encrypted configuration files to your Local PC. Go to Upgrade > Advanced > Others Upgrade > Advanced > Others interface if needed. Parameter Set-up : Parameter Set-up Export/Import Export/Import: to export the current config file (Encrypted) or import a new config file.

  • Page 86: Auto Provisioning

    Provisioning Principle Auto-provisioning is a feature used to configure or upgrade devices in batch via third-party servers. DHCP, PNP, TFTP, FTP, and HTTPS are the protocols used by the Akuvox devices to access DHCP, PNP, TFTP, FTP, and HTTPS the URL of the address of the third-party server which stores configuration files and firmware, which will then be used to update the firmware and the corresponding parameters on the device.
  • Page 87 Please see the flow chart below: Please see the flow chart below...
  • Page 88 Configuration Files for Auto-provisioning Configuration Files for Auto-provisioning Configuration files have two formats for auto-provisioning. One is the general configuration files used for the general provisioning and the other one is the MAC-based configuration provisioning. The difference between the two types of configuration files is shown below: The difference between the two types of configuration files is shown below: General configuration General...
  • Page 89 Upgrade > Advanced > Automatic Autop interface. Autop AutoP Schedule AutoP Schedule Akuvox provides you with different Autop methods that enable the device to perform provisioning for itself according to the schedule. Parameter Set-up : Parameter Set-up Mode Mode : select Power on, Repeatedly, Power On + Repeatedly, Hourly Repeat Power on, Repeatedly, Power On + Repeatedly, Hourly Repeat as your Autop schedule.

  • Page 90: Pnp Configuration

    PNP Configuration PNP Configuration Plug and Play (PNP) is a combination of hardware and software support that enables a computer system to recognize and adapt to hardware configuration changes with little or no intervention by a user. To do this configuration on web Upgrade > Advanced > PNP Option Upgrade >...
  • Page 91 FTP: ftp://192.168.0.19/(allows anonymous login) ftp://username:password@192.168.0.19/(requires a user name and password) HTTP: http://192.168.0.19/(use the default port 80) http://192.168.0.19:8080/(use other ports, such as 8080) HTTPS: https://192.168.0.19/(use the default port 443) Akuvox do not provide user specified server. Please prepare TFTP/FTP/HTTP/HTTPS server by yourself.
  • Page 92 Integration with Third Party Device Integration via W iegand Integration via W iegand The Wiegand feature enables Akuvox door phone to act as a controller or a card reader. you can configure the Wiegand on the web Intercom > Wiegand Intercom > Wiegand interface.
  • Page 93 All at once : select it if the third-party device adopts All at once format. When it is selected, the PIN code will not be transferred until you enter the whole PIN code. Integration via HTTP API Integration via HTTP API HTTP API is designed to achieve a network-based integration between the third-party device and the Akuvox device.
  • Page 94 You can configure the HTTP API function on the web Intercom > HTTP API Intercom > HTTP API interface for the integration. Parameter Set-up : Parameter Set-up HTTP API HTTP API: select Enable Enable or Disable Disable to enable or disable the HTTP API function for the third-party integration.
  • Page 95 No authentication is required for HTTP API as it is only used for demo None testing. Normal This mode is used by Akuvox developers only. If this mode is selected, you are only required to fill in the IP address of Whitelist the third-party device for the authentication. The whitelist is suitable for operation in the LAN.
  • Page 96 Integration with Lift Control The door phones can be connected to the Akuvox lift controller for the lift control. Users can summon the lift to go down to the ground floor when they are granted access through various types of access methods on the door phone.

  • Page 97: Password Modification

    Password Modification Password Modification Modifying Device W eb Interface Password Modifying Device W eb Interface Password To change the default web password on web Security > Basic Security > Basic interface. Select admin admin for the administrator account and User User for the User Account.
  • Page 98 You can set up the web interface's automatic log-out timing, requiring re-login by entering the user name and the passwords for security purposes or for the convenience of operation. To do the configuration on the web Security > Basic > Session Time Out Security >...
  • Page 99 System Reboot & Reset System Reboot & Reset Reboot Reboot If you want to restart the device system, you can operate it on the device Upgrade > Basic Upgrade > Basic web interface as well. Reset Reset You can select Reset To Factory Setting Reset To Factory Setting if you want to reset the device (deleting both configuration data and user data such as RF cards, face data, and so on).
