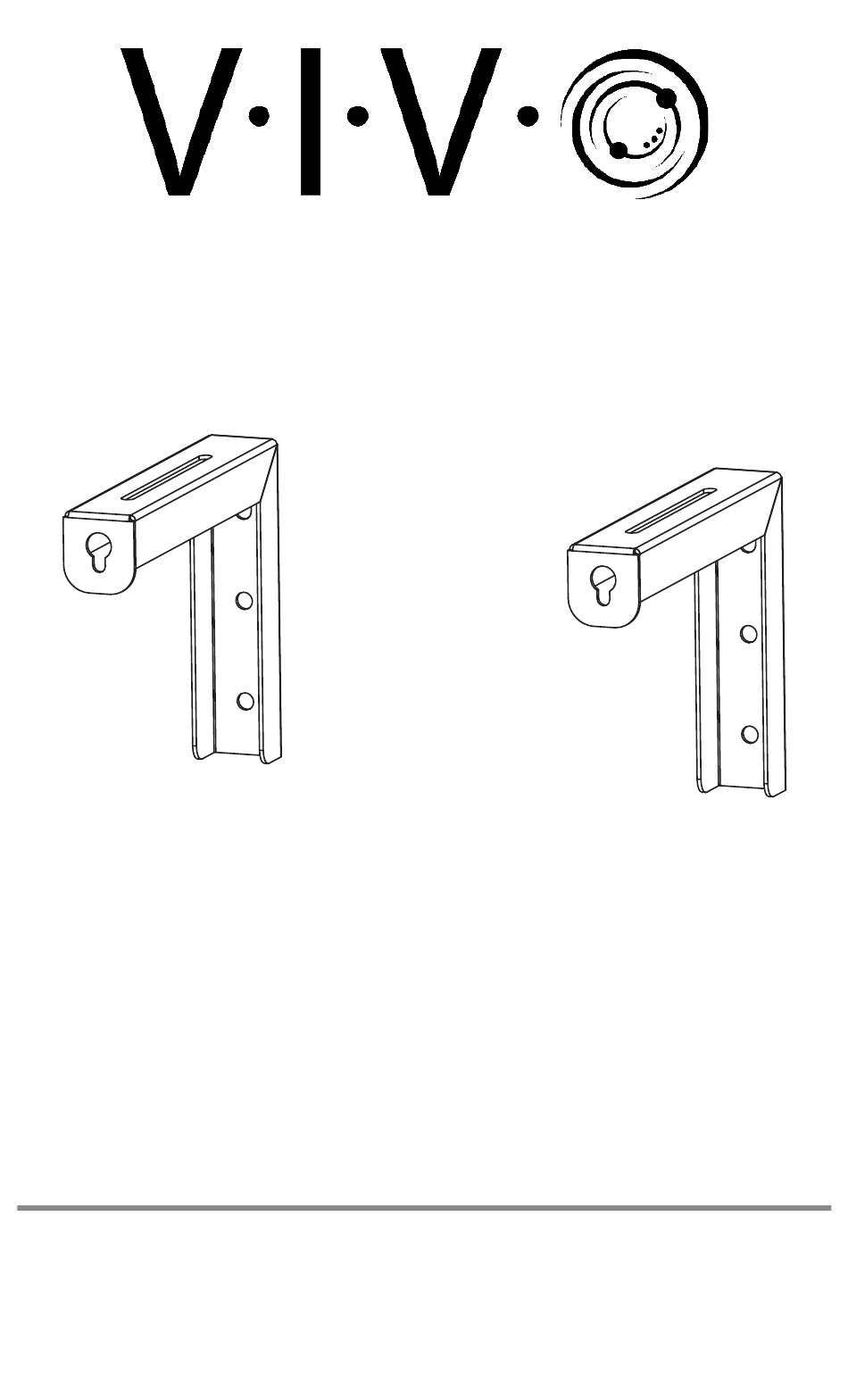

- Page 1 Universal Projector Screen Wall Brackets MOUNT-PS01 Series Assembly Manual Individual Product SKUs MOUNT PS01 MOUNT-PS01B...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
-
Page 3: Package Contents
Package Contents A (x2) B (x2) L Bracket Hook Included Hardware & Tools W-A (x4) W-B (x4) W-C (x4) ST5.5x50mm Concrete Screw Anchor Washer Tools Needed: Phillips Pencil Stud Drill Screwdriver Finder 5/16” (8mm) 3/16” (4.5mm) 10mm Socket Wrench Drill Bit Drill Bit Wrench Concrete / Brick... -
Page 4: Assembly Options
Assembly Options Determine your intended mounting surface and follow instructions as identified below. - Page 5 STEP 1 - Ceiling Mount - Wood Stud Ceiling Mount Use L Bracket (A) to mark drilling locations on the ceiling where a stud is located. Use of a level and stud finder is recommended. Pre-Drilling Instructions Drill mounting holes using illustration below. 3/16”...
- Page 6 STEP 1 - cont’d Secure L Bracket (A) to ceiling using ST5.5x50mm Screws (W-A) with M6 Washers (W-C) and a 10mm socket wrench. Do NOT use included Anchors (W-B) for wood or drywall. Proceed to STEP 2 on Page 9...
- Page 7 - Ceiling Mount - Concrete / Brick Ceiling Mount Use L Bracket (A) to mark drilling locations on the ceiling. Use of a level is recommended. Pre-Drilling Instructions Drill mounting holes using illustration below. 5/16” (8mm) Drill Bit 2.2” (55mm) Hole Depth...
- Page 8 STEP 1 - cont’d Insert Concrete Anchors (W-B) into drilled holes. Secure L Bracket (A) to ceiling using ST5.5x50mm Screws (W-A) with M6 Washers (W-C) and a 10mm socket wrench. Proceed to STEP 2 on Page 9...
- Page 9 STEP 2 Remove pre-installed nut and one washer from Hooks (B). Insert Hooks into bottom hole of L Brackets (A) and secure by reinstalling previously removed nuts and washers with a wrench. Hang projector screen (not included) onto Hooks. Assembly Complete Your projector mount is fully assembled.
- Page 10 STEP 1 - Wall Mount - Wood Stud Wall Mount Use L Bracket (A) to mark drilling locations on the wall where a stud is located. Use of a level and stud finder is recommended. Pre-Drilling Instructions Drill mounting holes using illustration below. 3/16”...
- Page 11 STEP 1 - cont’d Secure L Bracket (A) to wall using ST5.5x50mm Screws (W-A) with M6 Washers (W-C) and a 10mm socket wrench. Do NOT use included Anchors (W-B) for wood or drywall. Proceed to STEP 2 on Page 15...
- Page 12 - Wall Mount - Concrete / Brick Wall Mount Use L Bracket (A) to mark drilling locations on the wall. Use of a level is recommended. Pre-Drilling Instructions Drill mounting holes using illustration below. 5/16” (8mm) Drill Bit 2.2” (55mm) Hole Depth...
- Page 13 STEP 1 - cont’d Insert Concrete Anchors (W-B) into drilled holes. Secure L Bracket (A) to wall using ST5.5x50mm Screws (W-A) with M6 Washers (W-C) and a 10mm socket wrench. Proceed to STEP 2 on Page 15...
- Page 14 STEP 2 Remove pre-installed nut and one washer from Hooks (B). Insert Hooks into bottom hole of L Brackets (A) and secure by reinstalling previously removed nuts and washers with a wrench.
- Page 15 STEP 3 Hang projector screen (not included) onto Hooks (B). Assembly Complete Your projector mount is fully assembled. It can support up to 66lbs (30kg).
- Page 16 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
