T O R Q U E S E T T I N G S F O R S C R E W S
IN ORDER TO MAINTAIN THE IP65 RATING ON THE LIGHTING FIXTURES, ALL SCREWS MUST
BE TIGHTENED TO THE FOLLOWING TORQUE SPECIFICATION USING A TORQUE DRIVER.

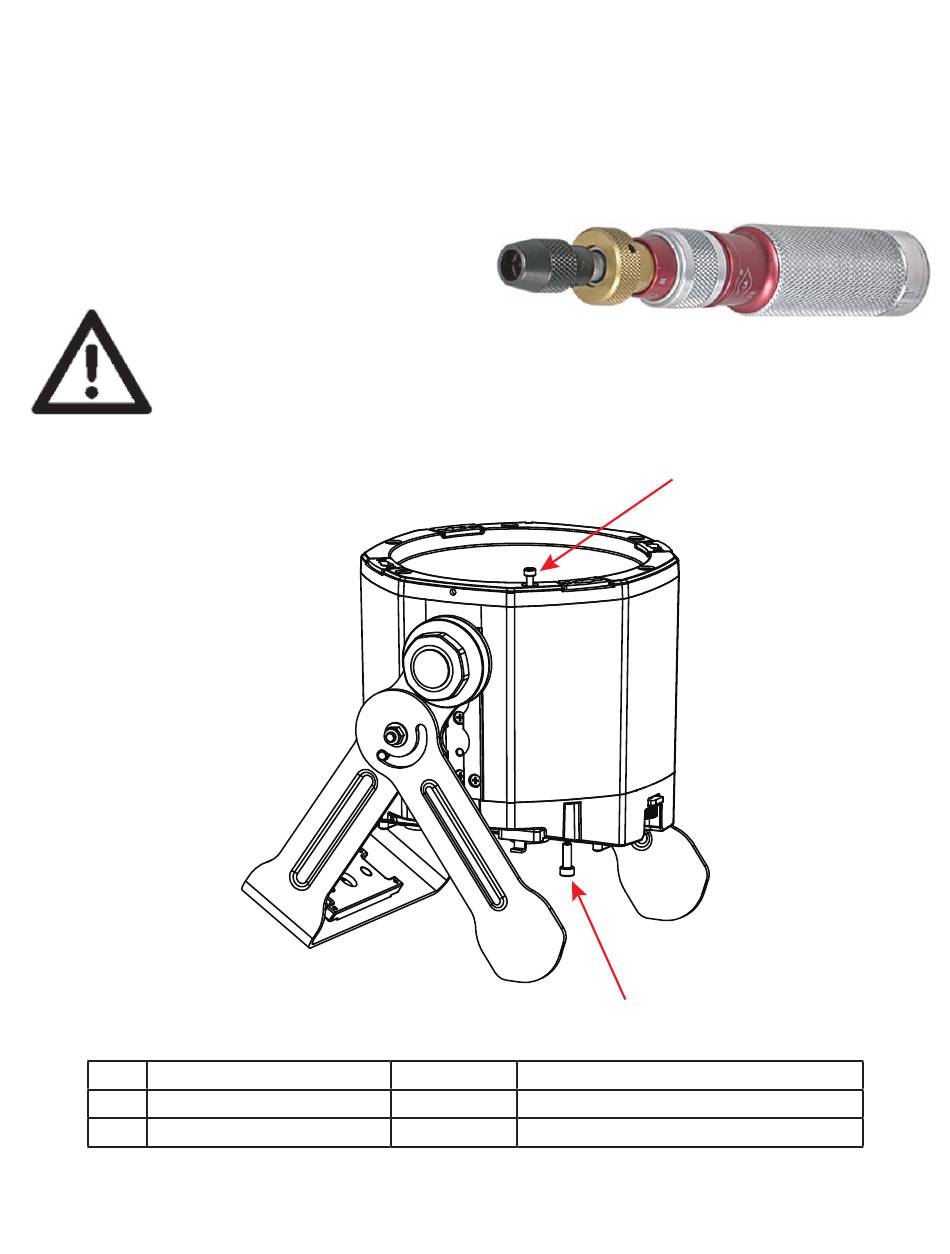

Refer to the table and diagram below for torque specifications.
TORQUE DRIVERS (Recommended): UTICA TS-30 (shown)
ALTERNATE DRIVERS:
• Proto J6107A
• Wiha 28887
CAUTION! DO NOT OVER TORQUE SCREWS, AS THIS CAN CAUSE
LEAKAGE ISSUES!
NO.
1
2
LOCATION
Upper Cover
Back Cover
QUANTITY
6
4
45
1
2
TORQUE
10.4 lb-in (12 kg-cm)
17.4 lb-in (20 kg-cm)
