I N S T A L L A T I O N G U I D E L I N E S
CLAMP MOUNTING
When mounting the fixture to a truss or any other suspended structure, be sure to secure an appro-
priately rated clamp to the hole on the top of the mounting bracket. Insert a bolt of appropriate size
through the bottom of the mounting clamp and the hole on the mounting bracket, and secure them
together with a matching nut. Additionally, a safety cable of the appropriate weight rating should be
secured through the safety cable loop on the rear of the unit.

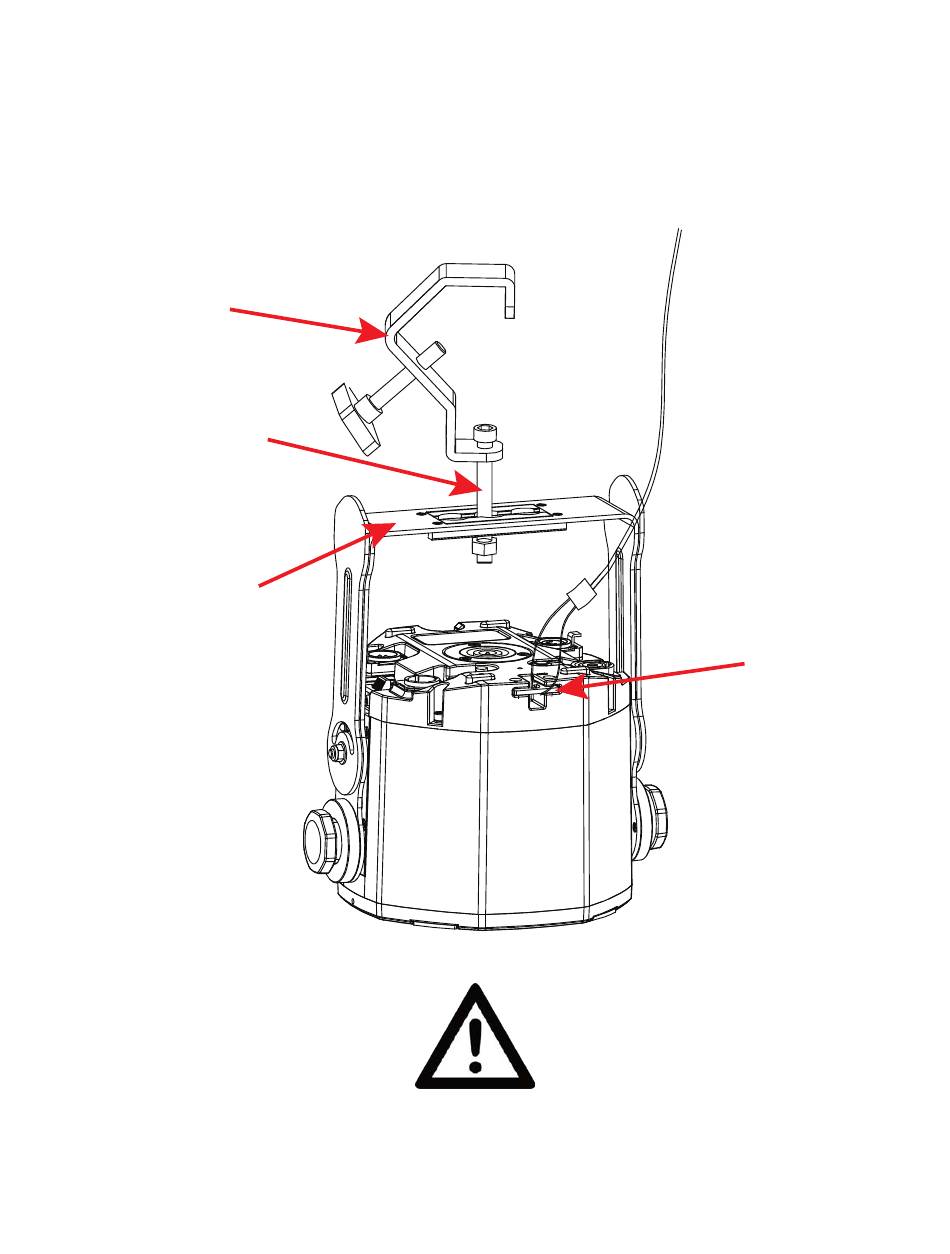

MOUNTING
CLAMP
MOUNTING
BOLT
MOUNTING
BRACKET
SAFETY
CABLE
LOOP
SAFETY CABLE:
ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE
IN A SUSPENDED ENVIRONMENT TO ENSURE THAT THE FIXTURE WILL NOT
FALL IF THE CLAMP FAILS.
