User Instructions
Rev. 3/14

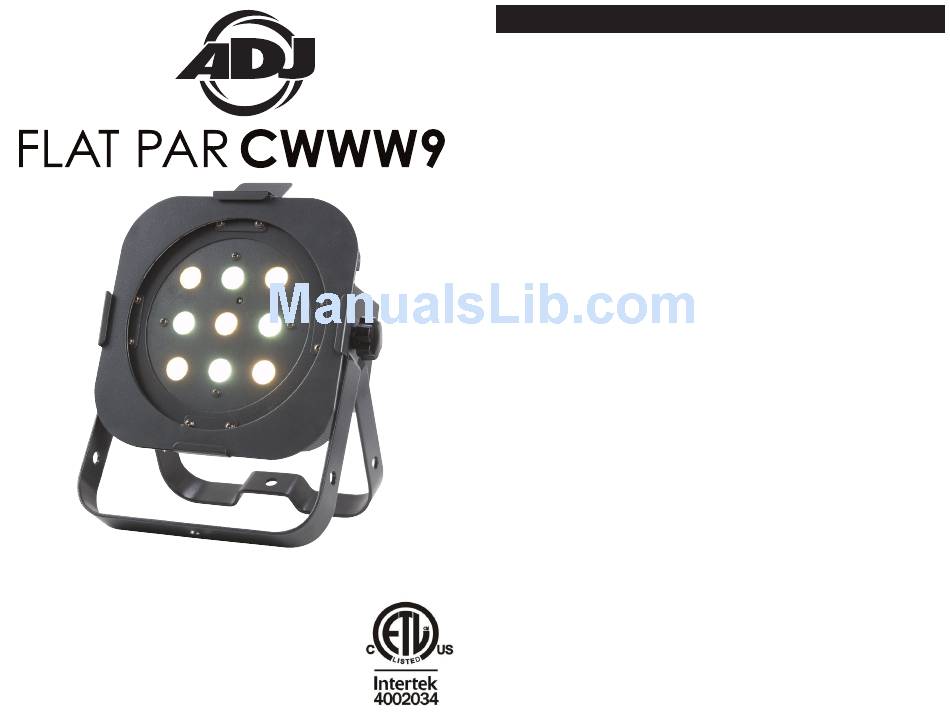

Flat Par CWWW9
Unpacking:
Thank you for purchasing the Flat Par CWWW9 by Amer-
ican DJ
. Every Flat Par CWWW9 has been thoroughly tested and has
®
been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your fixture for any
damage and be sure all accessories necessary to operate the unit has
arrived intact. In the case damage has been found or parts are miss-
ing, please contact our toll free customer support number for further
instructions. Do not return this unit to your dealer without first contact-
ing customer support.
Introduction:
The American DJ
tinuing pursuit to create high quality intelligent lighting. The Flat Par
CWWW9 is a DMX intelligent, high powered LED par fixture. This fix-
ture can be used in a stand alone mode or connected in a Master/Slave
configuration. This wash has six operating modes: Sound Active mode,
Auto mode, CW & WW dimmer modes, Fade mode, White Preset Mode
(Color Temperature mode) and DMX control mode.
Customer Support:
American DJ provides a customer support line,
to provide set up help and to answer any question should you encoun-
ter problems during your set up or initial operation. You may also visit
us on the web at www.American DJ.com for any comments or sugges-
tions. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m.
Pacific Standard Time.
Voice:
(323) 582-3322
Fax:
(323) 582-3108
E-mail:
support@AmericanDJ.com
Warning!
To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Caution!
There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
American DJ.
PLEASE recycle the shipping carton when ever possible.
American DJ
- www.Americandj.com - Flat Par CWWW9 User Manual Page 2
©
®
Introduction
Flat Par CWWW9 is part of a con-
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flat Par CWWW9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADJ Flat Par CWWW9

Summary of Contents for ADJ Flat Par CWWW9

  • Page 1 Unpacking: Thank you for purchasing the Flat Par CWWW9 by Amer- ican DJ . Every Flat Par CWWW9 has been thoroughly tested and has ® been shipped in perfect operating condition. Carefully check the ship- ping carton for damage that may have occurred during shipping. If the...

  • Page 2: General Instructions

    Warranty Registration • Always mount this unit in safe and stable matter. The Flat Par CWWW9 carries a 2 year limited warranty. Please fill out • Power-supply cords should be routed so that they are not likely to the enclosed warranty card to validate your purchase. All returned...

  • Page 3: Power Supply

    DMX - to connect a DMX terminal, (Resistance 120 Ohm 1/4 W) between PIN 2 (DMX-) The Flat Par CWWW9 can be controlled via DMX-512 protocol. The Flat Figure 4 and PIN 3 (DMX +) of the last fixture. Par CWWW9 has 3 DMX channel modes, please see pages 7-8 for the 5-Pin XLR DMX Connectors.

  • Page 4: Operating Modes

    This function 2. Use the UP and DOWN buttons to find your desired preset color. also allows you to use your fixtures as spot lights. The Flat Par CWWW9 See the chart on page 10 for the list of color temperatures.

  • Page 5: Infrared Receiver

    Sound Active Mode: Use standard XLR data cables to link your units together. Remember In this mode the Flat Par CWWW9 will react to sound, and chase through that the Male XLR connector is the input and the Female XLR con- the different colors.
  • Page 6 30 feet away. To • When the display reads “9-SO”, the unit is in Sound Active mode. use the ADJ LED RC2 you must first activate the fixtures infrared re- SET ADDRESS - Press this button to set the DMX address. Press ceiver, to activate the receiver please see the instructions on page 9.
  • Page 7 224 - 236 7000K 237 - 248 7200K 249 - 255 7400K American DJ - www.Americandj.com - Flat Par CWWW9 User Manual Page 13 American DJ - www.Americandj.com - Flat Par CWWW9 User Manual Page 14 © ® © ®...
  • Page 8 1 - 255 STROBING SLOW - FAST MASTER DIMMER 1 - 255 0% - 100% American DJ - www.Americandj.com - Flat Par CWWW9 User Manual Page 15 American DJ - www.Americandj.com - Flat Par CWWW9 User Manual Page 16 © ® ©...

  • Page 9: Installation

    Installation Flat Par CWWW9 Warranty The Flat Par CWWW9 is fully operational in three different mounting MANUFACTURER’S LIMITED WARRANTY American DJ, Inc. hereby warrants, to the original purchaser, American DJ and American positions, hanging upside-down from a ceiling, hanging sideways on Audio products to be free of manufacturing defects in material and workmanship for a prescribed trussing, or set on a flat level surface.

  • Page 10: Specifications

    Web: www.americandj.com / E-mail: info@americandj.com American DJ Europe Junostraat 2 6468 EW Kerkrade Netherlands service@adjgroup.eu / www.americandj.eu Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99 American DJ - www.Americandj.com - Flat Par CWWW9 User Manual Page 19 © ®...
