- Page 1 FLAT PAR TW12 User Manual Rev. 01/2021...
- Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...

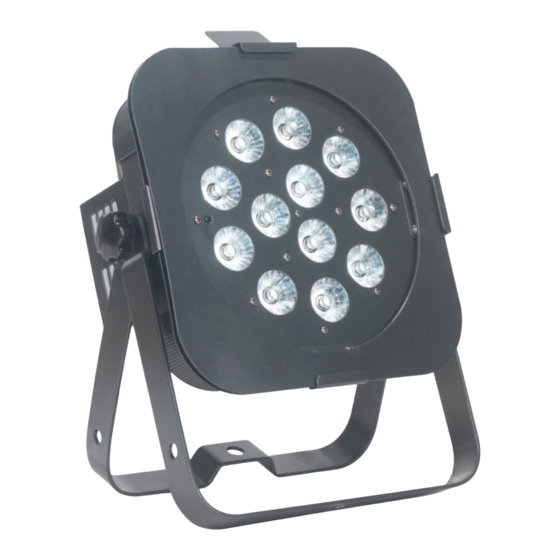

- Page 3 Introduction: The ADJ Flat Par TW12 is part of our continuing pursuit to create high quality intelligent lighting. The Flat Par TW12 is a DMX intelligent, high powered LED par fixture. This fixture can be used in a stand alone mode or connected in a Primary/Secondary configuration. This device has five oper- ating modes: Sound Active mode, Auto Run mode, WW/CW/A Dimmer mode, Static Color mode, and DMX control mode.
-
Page 4: Warranty Registration
Flat Par TW12 Warranty Registration The Flat Par TW12 carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre- paid and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly writ- ten on the outside of the return package. -
Page 5: Safety Precautions
C. The appliance has been exposed to rain or water. D. The appliance does not appear to operate normally or exhibits a marked change in perfor- mance. ADJ Products, LLC - www.adj.com - Flat Par TW12 User Manual Page 5... - Page 6 Instructions section of this manual for details about DMX modes. The DMX address is set on the back panel of the Flat Par TW12. Your unit and your DMX controller require a standard 3-pin XLR connector for data input and data output (Figure 1). We recommend Accu-Cable DMX cables. If you are making your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all pro lighting stores).
- Page 7 When inserting standard 5-pin data cables in to a 3-pin line, a cable adaptor must be used. These adaptors are readily available at most electronics stores. The chart below details a proper cable con- version. ADJ Products, LLC - www.adj.com - Flat Par TW12 User Manual Page 7...
- Page 8 Operating through a DMX controller gives the user the freedom to create programs tailored to their own individual needs. The Flat Par TW12 has 6 DMX modes: 2 Channel mode, 3 Channel mode, 4 Channel mode, 5 Channel mode, 8 Channel mode, and a 9 Channel mode.
- Page 9 “S.000” (strobe off) to “S.015” (fastest strobe). Sound Active Mode: In this mode the Flat Par TW12 will react to sound, and cycle through the different colors. 1. Plug the fixture in and press the MODE button until “So-X” is displayed. “X” represents the sound active mode (1-8) that is currently selected.
- Page 10 This function is used to activate and deactivate the ADJ LED RC3 (Remote Control). When this func- tion is activated you can control the fixture using the ADJ LED RC3. Please see the ADJ LED RC3 section of this manual for controls and functions.
- Page 11 2. Set the Primary unit to the desired mode of operation. 3. For the Secondary unit(s), press the MODE button until “SECd” is displayed. The Secondary unit(s) will now follow the Primary. ADJ Products, LLC - www.adj.com - Flat Par TW12 User Manual Page 11...
- Page 12 The ADJ LED RC3 infrared remote (sold seperately) has many different functions and gives you complete control of your Flat Par TW12. The controller must be aimed at the front of the fixture, and maximum range is 30 feet. To use the ADJ LED RC3 you must first activate the fixtures infrared re- ceiver, as described in the Operating Instructions section of this manual.
- Page 13 WW CW A - Press either one of these buttons and the press the “+” or “-” to adjust the output in- tensity. Press Flash to activate/deactivate strobing. Use the “+” and “-” buttons to adjust the strobe speed. ADJ Products, LLC - www.adj.com - Flat Par TW12 User Manual Page 13...
- Page 14 Flat Par TW12 2 Channel Mode Flat Par TW12 3 Channel Mode Flat Par TW12 4 Channel Mode ADJ Products, LLC - www.adj.com - Flat Par TW12 User Manual Page 14...
- Page 15 Flat Par TW12 5 Channel Mode ADJ Products, LLC - www.adj.com - Flat Par TW12 User Manual Page 15...
- Page 16 Flat Par TW12 8 Channel Mode ADJ Products, LLC - www.adj.com - Flat Par TW12 User Manual Page 16...
-
Page 17: Channel Mode
When channel 7 is between the values of 128-239, channel 8 will control the program speed. • When channel 7 is between the values of 240-255, channel 8 will control the sound sensitivity. ADJ Products, LLC - www.adj.com - Flat Par TW12 User Manual Page 17... - Page 18 Flat Par TW12 9 Channel Mode ADJ Products, LLC - www.adj.com - Flat Par TW12 User Manual Page 18...
- Page 19 When Channel 7 is set to DMX values 128-239, Channel 8 will control the speed of the programs. • When Channel 7 is set to DMC values 240-255, Channel 8 will control the sound sensitivity. ADJ Products, LLC - www.adj.com - Flat Par TW12 User Manual Page 19...
-
Page 20: Color Macro Chart
Color27 200-207 Color11 72-79 Color28 208-215 Color12 80-87 Color29 216-223 Color13 88-95 Color30 224-231 Color14 96-103 Color31 232-239 Color15 104-111 Color32 240-247 Color16 112-119 Color33 248-255 Color17 120-127 ADJ Products, LLC - www.adj.com - Flat Par TW12 User Manual Page 20... - Page 21 Flat Par TW12 Photometric Chart Flat Par TW12 Dimmer Curve Chart ADJ Products, LLC - www.adj.com - Flat Par TW12 User Manual Page 21...
-
Page 22: Power Cord Daisy Chain
3. Always be sure to dry all parts completely before plugging the unit back in. Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog resi- due, dust, dew). ADJ Products, LLC - www.adj.com - Flat Par TW12 User Manual Page 22... -
Page 23: Warranty
Warranty MANUFACTURER’S LIMITED WARRANTY: A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories. -
Page 24: Specifications
Web: www.adj.com / E-mail: info@americandj.com A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade Netherlands service@adjgroup.eu / www.adj.eu Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99 ADJ Products, LLC - www.adj.com - Flat Par TW12 User Manual Page 24... - Page 25 ADJ Products, LLC - www.adj.com - Flat Par TW12 User Manual Page 25...
