PAR Z100 5K2
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAR Z100 5K2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADJ PAR Z100 5K2

Summary of Contents for ADJ PAR Z100 5K2

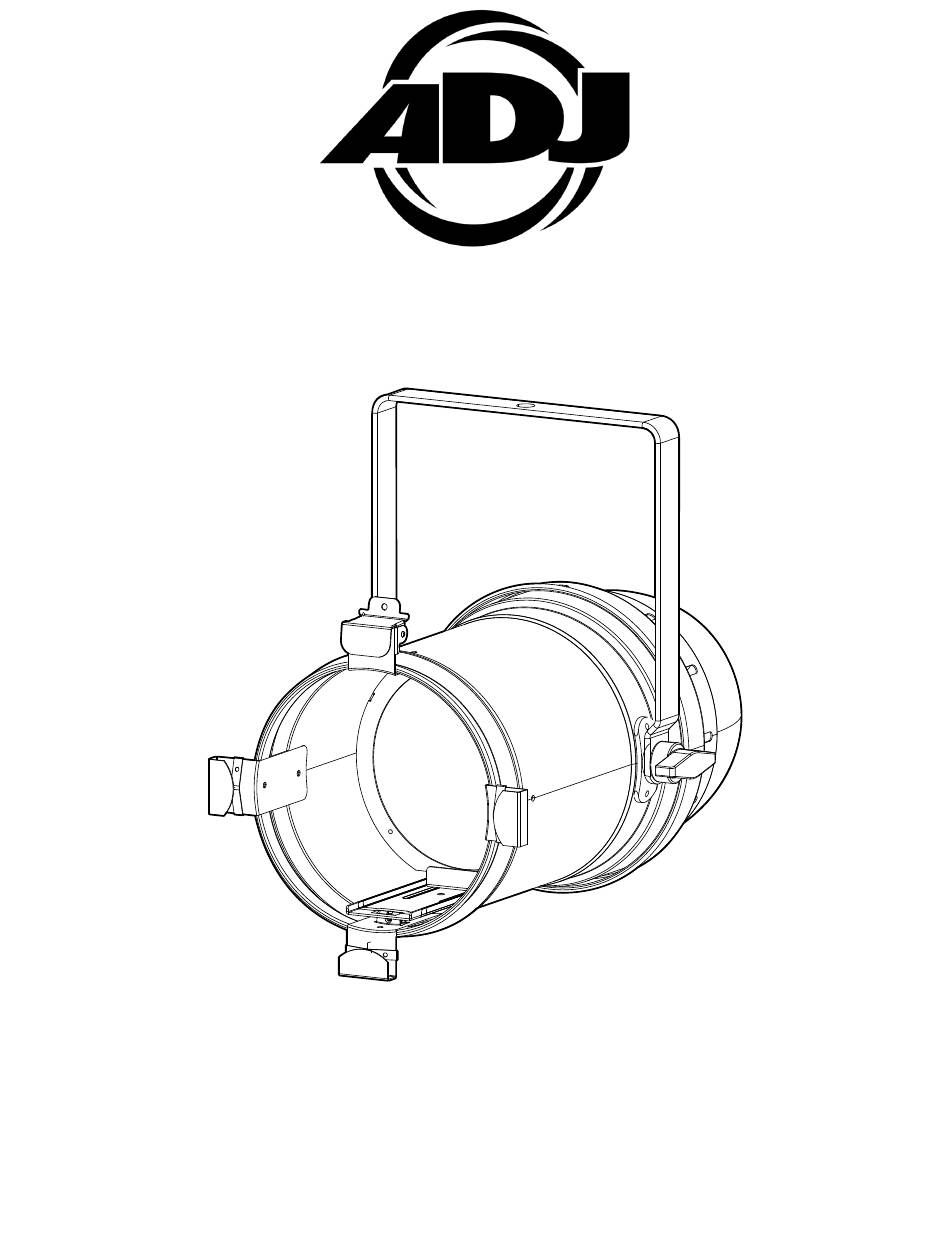

  • Page 1 PAR Z100 5K2 User Manual...
  • Page 2 ©2024 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
  • Page 3 C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Overview Installation Guidelines Accessory Installation: Gel Frame System Menu Dimmer Modes and Curves DMX Setup DMX Traits Remote Device Management (RDM) Maintenance Guidelines Specifications Dimensional Drawings Optional Accessories...

  • Page 4: Box Contents

    BOX CONTENTS 1.83M locking power cable CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Also visit forums.adj.com with questions, comments or suggestions. ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-2650 | Fax: 323-832-2941 | support@adj.com...

  • Page 5: L I M I T E D Wa R R A N T Y ( U S A O N Ly )

    All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.

  • Page 6: Safety Guidelines

    This device is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ PRODUCTS, LLC. is not responsible for injury and/or damages resulting from the misuse of this device due to the disregard of the information printed in this manual.
  • Page 7 S A F E T Y G U I D E L I N E S DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before serving. DO NOT shake fixture, avoid brute force when installing and/or operating fixture.
  • Page 8 O V E R V I E W Truss Clamp Mounting Hole Adjustable Mounting Bracket (Yoke) Gel Frame Latch Bracket Adjustment Knob Gel Frame Bracket OLED Menu Display Safety Cable Anchor Point...

  • Page 9: Electrical Connections

    I N S TA L L AT I O N G U I D E L I N E S FLAMMABLE MATERIAL WARNING Keep fixture minimum 0.7 feet (0.2m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON THIS FIXTURE.
  • Page 10 I N S TA L L AT I O N G U I D E L I N E S When mounting fixture to truss, be sure to secure an appropriately rated professional grade rigging clamp to the Adjustable using an M10 screw fitted through the center hole of the Adjustable Mounting Bracket.
  • Page 11 I N S TA L L AT I O N G U I D E L I N E S RIGGING Overhead rigging requires extensive experience, including among others, calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture.
  • Page 12 I N S TA L L AT I O N G U I D E L I N E S POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS External sources of light beams from direct sunlight, lighting and moving head fixtures, and lasers, which are focused directly towards the exterior housing and/or penetrate the front lens opening of Elation lighting fixtures, can cause severe internal damage including burning of optics, dichroic color filters, glass and metal gobos, prisms, animation wheels, frost filters, iris, shutters, motors, belts, wiring,...
  • Page 13 A C C E S S O R Y I N S TA L L AT I O N : G E L F R A M E 1. Flip open the retaining clip. 2. Slide the Gel Frame into place. 3.

  • Page 14: System Menu

    S Y S T E M M E N U The Vizi Beam CMY features a display screen with a 4-button control pad, which can be used to easily adjust any device settings. • The MODE button cycles through main menu options, or returns to the previous menu without making changes.
  • Page 15 S Y S T E M M E N U OPTIONS / VALUES (Default Settings in BOLD) MAIN MENU DMX Address 001 - 512 Channel Mode 3CH, 4CH DMX Settings Black Out, Hold, Pri / Sec Pri / Sec Mode Primary / Secondary Dimmer Mode Standard, Stage, TV, Architechtural, Theatre, Stage 2...
  • Page 16 D I M M E R M O D E S A N D C U R V E S DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default)

  • Page 17: D M X S E T U P

    D M X S E T U P Power Supply: The ADJ PAR Z100 5K2 incorporates an electronic ballast, which automatically senses the voltage when it is plugged into the power source. With the electronic ballast, this unit can be plugged in anywhere.
  • Page 18 2 and 3 of a male XLR connector (DATA + and DATA -). Insert this unit into the female XLR connector of the last unit in one’s daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.
  • Page 19 D M X T R A I T S CHANNEL FUNCTION VALUE Strobe 0-31 LED off 32-63 LED on 64-95 Strobe Slow > Fast 96-127 LED on 128-159 Strobe Pulse Slow > Fast 160-191 LED on 192-223 Random Strobe Slow > Fast 224-255 LED on 0-255...

  • Page 20: R E M O T E D E V I C E M A N A G E M E N T ( R D M )

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

  • Page 21: Maintenance

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.
  • Page 22 S P E C I F I C AT I O N S Optical: • 100 Watt, 5700k White C.O.B. LED (Chip On Board) • Life expectancy: rated at 50,000 hrs. • Manual Zoom: 9°, 15°, 20°, 25° or 30° •...

  • Page 23: Dimension Drawings

    D I M E N S I O N D R AW I N G S Drawings not to scale 17.36in. [441.1mm] Ø8.84in. [Ø224.5mm] 17.45in. [443.3mm] 10.06in. [255.6mm] 19.25in. [489mm] Ø0.51in. [Ø13mm] Ø7.56in. [Ø192mm] 9.82in. [249.5mm] 9.76in. [248mm] 7.08in. [179.8mm] 15.88in.

  • Page 24: Optional Accessories

    O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM PAR568 PAR Z100 5K2 TRIGGER CLAMP N/A Heavy Duty Wrap Around Hook Style Clamp AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable...
