A C C E S S O R Y I N S T A L L A T I O N

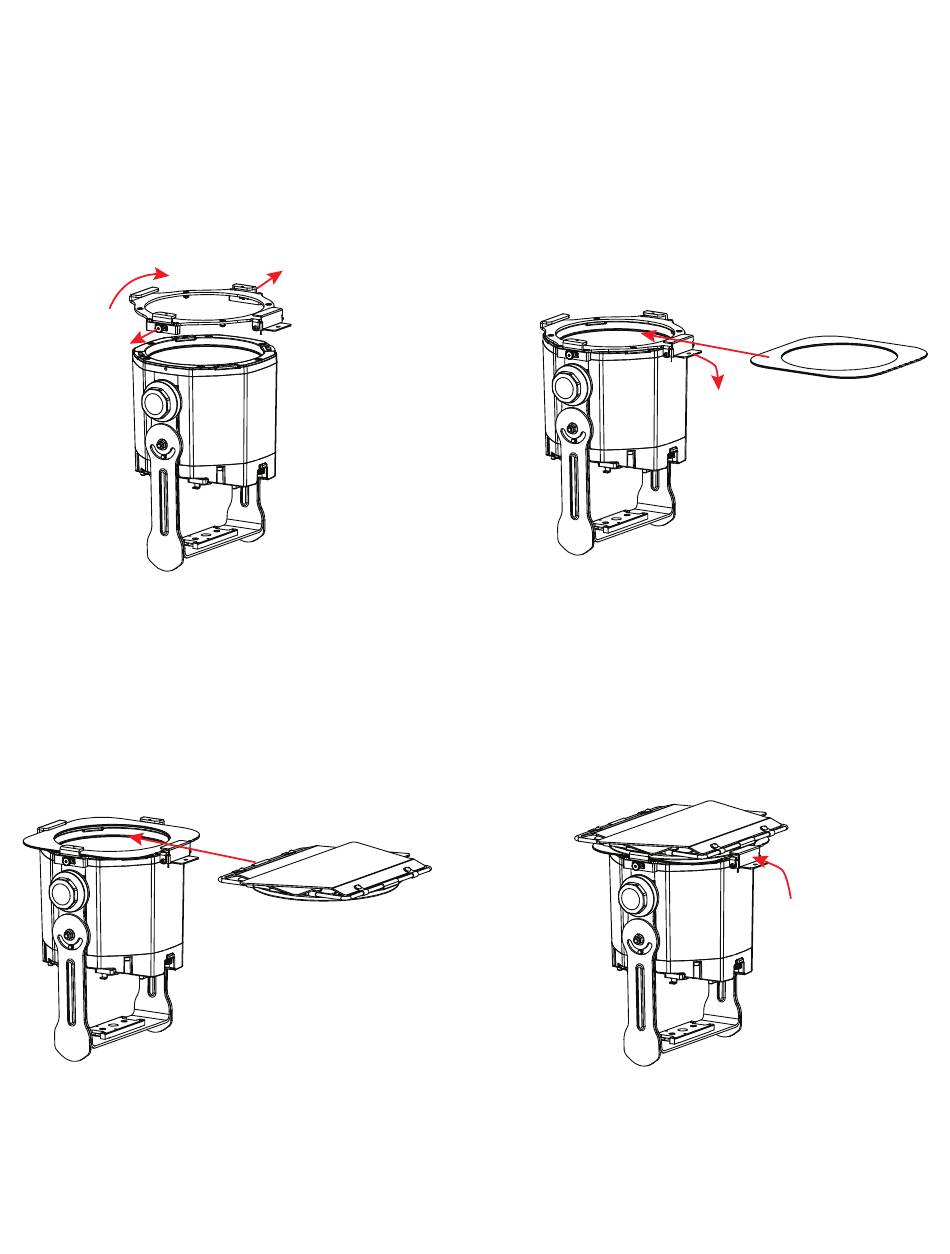

1. Lower the Gel Holder onto the fixture's lens
frame. Pull out on the two gel holder pin tabs,
then rotate the Gel Holder into place so that
the pin tabs align with the matching holes on
the fixture. Release the pin tabs to lock the
Gel Holder in place.
3. Insert the Barndoors into the Gel Holder,
making sure that the Barndoors lie on top of
the Gel Frame.
2. Flip open the frame latch, and insert the Gel
Frame into the Gel Holder.
4. Close the frame latch to secure both the Gel
Frame and the Barndoors in place. Please
note that the unit should be installed with
the latch facing upward to ensure that the
accessories do not fall in the event that
the latch fails.
