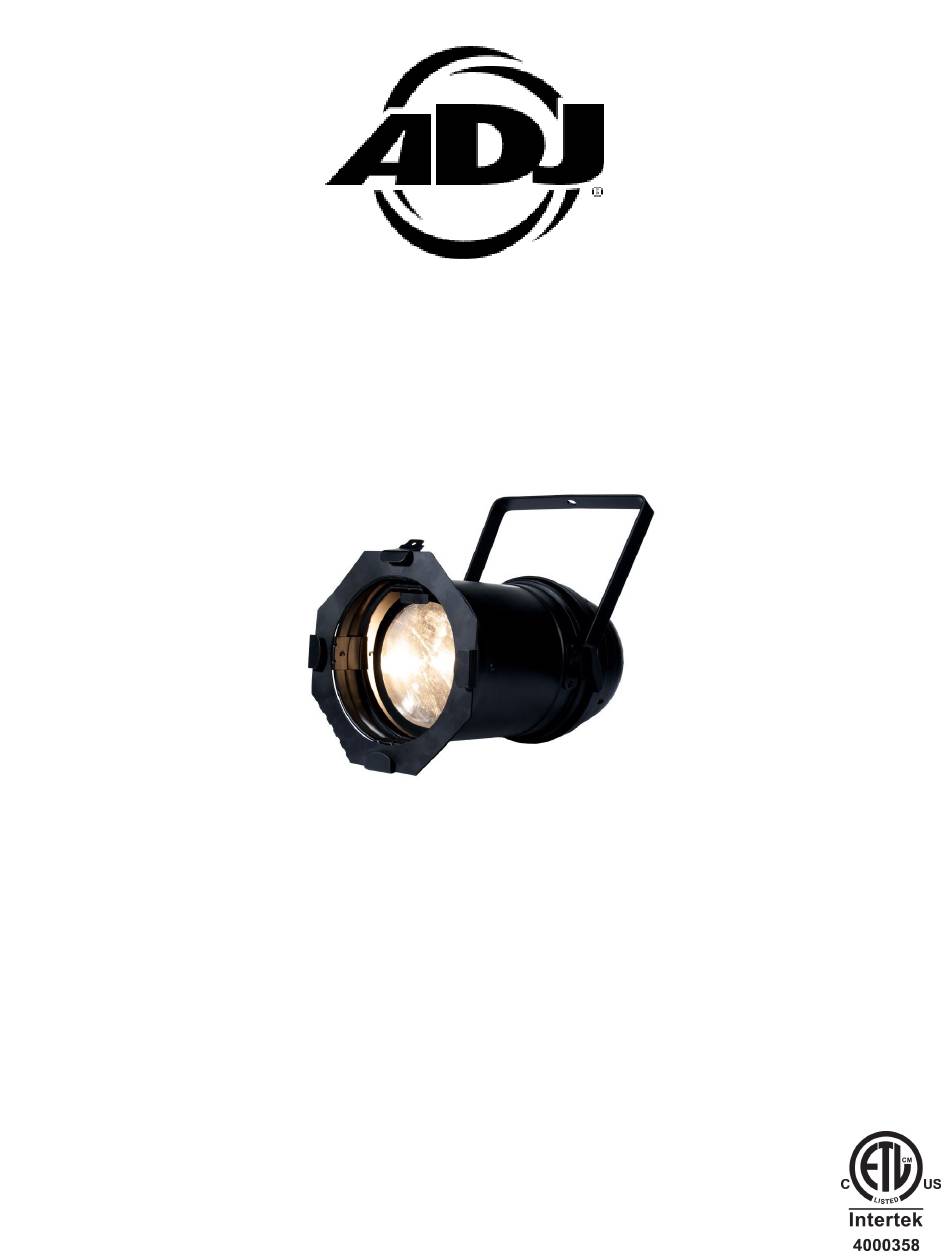

  • Page 1 PAR Z100 3K PAR Z100 3K User Manual Rev 03/2021...
  • Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...

  • Page 3: General Information

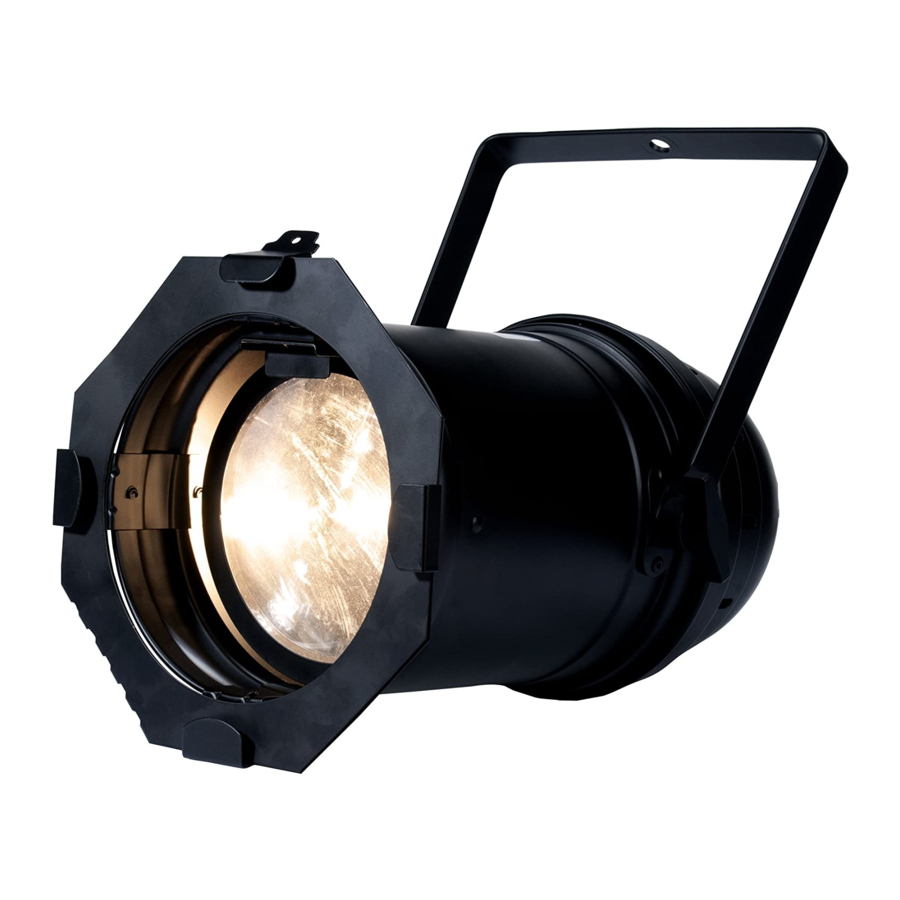

    Introduction: The Par Z100 3K is a DMX intelligent, zooming, LED par fixture. The Par Z100 3K oper- ates as a stand alone fixture. This fixture is suitable for theaters, studios, retail stores, and other similar locations.

  • Page 4: General Instructions

    Par Z100 3K Warranty Registration The Par Z100 3K carries a 2 year (730 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase and warranty. You may also register your product at www.adj.com. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number.

  • Page 5: Safety Precautions

    C. The appliance has been exposed to rain or water. D. The appliance does not appear to operate normally or exhibits a marked change in perfor- mance. ADJ Products, LLC - www.adj.com - Par Z100 3K User Manual Page 5...
  • Page 6 Par Z100 3K DMX Set Up Power Supply: The ADJ Par Z100 3K contains an automatic voltage switch, which will automati- cally sense the voltage when it is plugged into the power source. With this switch, there is no need to worry about the correct power voltage, and this unit can be plugged in anywhere.
  • Page 7 5-pin data cables into a 3-pin line, a cable adaptor must be used. These adaptors are readily available at most electronics stores. The chart below details a proper cable conversion. ADJ Products, LLC - www.adj.com - Par Z100 3K User Manual Page 7...
  • Page 8 Par Z100 3K System Menu ADJ Products, LLC - www.adj.com - Par Z100 3K User Manual Page 8...

  • Page 9: System Menu

    • “THAL” (Theatre) • “STG2” (Stage 2) 2. Press the UP or DOWN buttons to find your desired dimmer curve, then press ENTER to confim and exit. ADJ Products, LLC - www.adj.com - Par Z100 3K User Manual Page 9...
  • Page 10 2. The display will show “on” or “oFF”. Use the UP or DOWN buttons to scroll, and press ENTER to make a selection. “On” will default to factory settings. Press the MENU button to exit without change. ADJ Products, LLC - www.adj.com - Par Z100 3K User Manual Page 10...

  • Page 11: Dmx Operation

    1. The Par Z100 3K has 4 DMX channel modes: 1 channel mode, 2 channel mode, 3 channel mode, and 4 channel mode. See the Channel Mode sections of this manual for detailed descriptions of the DMX values and traits.
  • Page 12 Par Z100 3K 1 Channel Mode Par Z100 3K 2 Channel Mode ADJ Products, LLC - www.adj.com - Par Z100 3K User Manual Page 12...
  • Page 13 Par Z100 3K 3 Channel Mode ADJ Products, LLC - www.adj.com - Par Z100 3K User Manual Page 13...
  • Page 14 Par Z100 3K 4 Channel Mode ADJ Products, LLC - www.adj.com - Par Z100 3K User Manual Page 14...
  • Page 15 Par Z100 3K Dimmer Curve Chart ADJ Products, LLC - www.adj.com - Par Z100 3K User Manual Page 15...

  • Page 16: Dimensional Drawings

    Once this maximum number has been reached, a new power outlet will be required to accom- modate additional fixtures. NOTE: USE CAUTION WHEN POWER LINKING OF DIFFERENT MAKE AND MODEL TYPES, AS THE POWER CONSUMPTION OF OTHER LIGHTING FIXTURES WILL VARY! ADJ Products, LLC - www.adj.com - Par Z100 3K User Manual Page 16...

  • Page 17: Fuse Replacement

    Be sure the external fuse has not blown. The fuse is located on the rear panel of the unit. • Be sure the fuse holder is completely and properly seated. ADJ Products, LLC - www.adj.com - Par Z100 3K User Manual Page 17...

  • Page 18: Warranty

    Par Z100 3K Warranty A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories.

  • Page 19: Specifications

    Web: www.adj.com / E-mail: info@adj.com A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade Netherlands service@adjgroup.eu / www.adj.com Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99 ADJ Products, LLC - www.adj.com - Par Z100 3K User Manual Page 19...
