- Page 1 Operating Instructions ATMOS S 351 OT English 0124 GA1GB.210301.0 2024-07 Index 06 E349855...
-
Page 2: Table Of Contents
AUTO mode ......................27 4.8 Electronic fill-level monitoring system ..............27 Changing the secretion canister ................27 4.10 Warning messages ....................28 4.11 Trolley with standard rail ATMOS S 351 (REF 320.0070.0) ........29 4.12 Foot controller ......................29 4.13 Checking the bacterial and viral filter ..............29... - Page 3 Reprocessing ....................30 Safety instructions for reprocessing ..............30 5.1.1 General safety instructions ................30 5.1.2 Danger for users, patients and third parties ..........30 5.1.3 Avoiding damage to the device ................ 30 Preparing and completing reprocessing .............. 31 Reprocessing surfaces .................... 31 5.3.1 Overview ......................
-
Page 4: Introduction
444.0405.1 ATMOS S 351 OT, 115 V 444.0405.2 ATMOS S 351 OT, 127 V 444.0405.3 ATMOS S 351 OT – basic set, 230 V 444.0460.0 ATMOS S 351 OT – basic set, 100 V 444.0460.1 ATMOS S 351 OT – basic set, 115 V 444.0460.2 ATMOS S 351 OT –... -
Page 5: Explanation Of Pictures And Symbols
444.0476.0 ATMOS S 351 OT mobile (2 x 2.5 l canister), 100 V 444.0476.1 ATMOS S 351 OT mobile (2 x 2.5 l canister), 115 V 444.0476.2 ATMOS S 351 OT mobile (2 x 2.5 l canister), 127 V 444.0476.3 ATMOS S 351 OT – basic set, 230 V (Medi-Vac®) 444.0496.0 ATMOS S 351 OT – basic set, 230 V (Serres®) 444.0497.0 1.2 Explanation of pictures and symbols In the operating instructions DANGER Warning of a danger that will result in immediate fatal or serious injury. - Page 6 This product complies with the relevant requirements of EU Directives. 0124 This product complies with the relevant requirements of EU Directives. UL Mark MEDICAL — GENERAL MEDICAL EQUIPMENT AS TO ELECTRICAL SHOCK, FIRE AND MECHANICAL HAZARDS ONLY IN ACCORDANCE WITH E349855 ANSI/AAMI ES60601-1 (2005) + AMD 1 (2012) CAN/CSA-C22.2 No.
-
Page 7: Intended Use
Fragile, handle with care Store in a dry place Protect from sunlight 1.3 Intended use Product name: ATMOS S 351 OT Main function: Drainage and temporary collection of body fluids. An electric suction pump controlled by a microprocessor generates negative pressure. An additional secretion canister must be attached to allow for temporary collection of drained body fluids. -
Page 8: Function
‘5 Reprocessing’ on page 30. 1.4 Function The ATMOS S 351 OT is a mains-operated medical suction device. The device is operated with an electronically controlled, maintenance-free diaphragm pump. During operation, the pump generates a vacuum in the secretion canister and hoses, by means of which secretion, blood and body fluids are withdrawn by suction. The fluid... -
Page 9: Intended Users
444.0405.1 1 ATMOS S 351 OT, 115 V 444.0405.2 1 ATMOS S 351 OT, 127 V 444.0405.3 1 ATMOS S 351 OT – basic set, 230 V 444.0460.0 1, 2, 3, 4, 5, 6, 7 ATMOS S 351 OT – basic set, 100 V 444.0460.1 1, 2, 3, 4, 5, 6, 7 ATMOS S 351 OT – basic set, 115 V 444.0460.2 1, 2, 3, 4, 5, 6, 7... -
Page 10: Transport And Storage
If damage occurs during transport: 1. Document and report damages in transit. 2. Send the device to ATMOS; see chapter ‘6.2 Sending in the device’ on page 37. Environmental conditions for transport and storage: see chapter ‘10 Technical data’ on page 43. -
Page 11: Notes For Your Safety
Report all serious incidents that have occurred in connection with this device to the manufacturer and your national competent authority. The safety of the ATMOS S 351 OT complies with the accepted standards of technology and the guidelines of the German Medical Devices Act. - Page 12 • Perform a function check after each use. • ATMOS recommends always having another suction device ready at hand. That way you can also perform suctioning if a device should fail. • Please observe the notes on the electromagnetic compatibility (EMC) of the device.
-
Page 13: Avoiding Damage To The Device
• Never operate the product in potentially explosive areas or in areas that are oxygenated. • Only use original accessories and original spare parts from ATMOS. This applies to the power cable in particular. WARNING Tripping hazard due to cables. - Page 14 The device may become damaged. • Ensure that no liquid enters the device. Once liquid has entered the device, it may no longer be used. In this case, clean the device and send it to ATMOS for repair. • Always place the device on firm, level ground. The device must always be in a vertical position when you use it.
-
Page 15: Setting Up And Starting Up

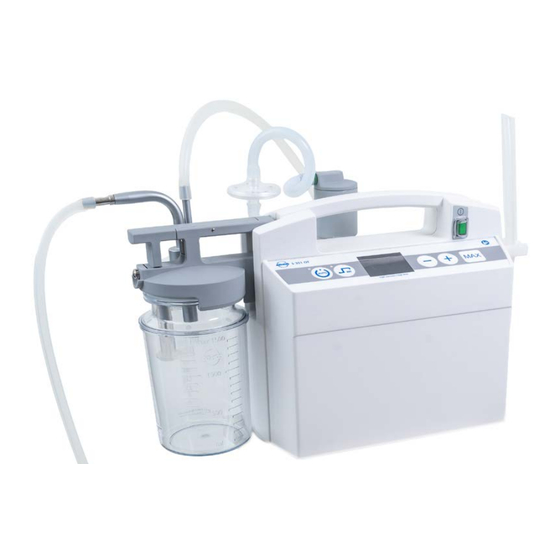

3 Setting up and starting up 3.1 Device overview Front view On/off switch Display Support for canister system Connection for hose from pump to safety canister Connection for suction hose Secretion canister lid Hydrophobic bacterial and viral filter Rear view Pump connection Connection for foot controller Service interface Potential equalisation Mains supply... -
Page 16: Secretion Canister
Knurled screw for locking the lid insert and for adjusting the clamping force Release button Fill-level sensor with anti-foaming device Lid rim Aperture for double hose connector Contacts for fill-level monitoring 3.1.1.2 Disposable canister systems ATMOS Disposable System (1 l) Angle (connection for the disposable suction hose) ATMOS suction bag ATMOS external canister L-connector... - Page 17 Connection for vacuum hose Medi-Vac® external canister Receptal® canister system (3 l) Angle (connection for the disposable suction hose) Receptal® suction bag Receptal® external canister Connection for vacuum hose Standard rail holder ATMOS/Serres® Support Medi-Vac® Setting up and starting up...
-
Page 18: Preparing The Device
3. If the device is damaged: document and report the damages in transit. Send the device to ATMOS (chapter ‘6.2 Sending in the device’ on page 37). 4. If the device is not damaged: place the device on a safe, level surface. -
Page 19: Connecting The Secretion Canister System And Hoses
3.4 Connecting the secretion canister system and hoses 1. The anti-foaming device must be placed on the fill-level sensor for strongly foaming secretion. 2. Slide the secretion canister lid with the release button pointing forward onto the secretion canister. Make sure that the lid rim is under the bead of the secretion canister. - Page 20 1. Connect the suction hose (Ø 10 mm) to the angled fitting (2) of the double hose connector. Use a hose reducer (3) for suction hoses with a Ø of 6 mm. 20 Setting up and starting up...
-
Page 21: Operation
4 Operation Environmental conditions for operation; see chapter ‘10 Technical data’ on page 43 4.1 Control panel S 351 OT AUTO high vacuum / high ow AUTO mode button (auto standby) INT mode button (intermittent) LEDs for indicating the active function... -
Page 22: Explanation Of The Display
4.4 Explanation of the display The display serves to show the current settings of your ATMOS device. Foot controller Connected with trolley Standby automatic Version 1: Version 2: Version 3: In addition, the colours shown indicate the following: • Blue:... -
Page 23: User Menu
1. Set the duration of the individual phases and the level of the vacuum to be generated in the user menu (chapter ‘4.6 User menu’ on page 23). 2. Press the INT button to activate the mode. » The display changes to the Intermittent screen. »... -
Page 24: Intermittent
Display Operation Options 4.6.3 Intermittent Four parameters can be set in the • Final vacuum Intermittent menu. • Increase/ 1. Press the + (6) or − (5) button to Decrease time go to the desired parameter. • Vacuum holding 2. Select the desired parameter by period pressing the MAX button (7). •... -
Page 25: Brightness
Display Operation Options 4.6.3.4 Pause 1. Press the + (6) or − (5) button to • 5 sec (min) – set the desired value. 995 sec (max) 2. Confirm the value by pressing the MAX button (7). » The pause time is set. You are automatically redirected to the Intermittent menu. • To return directly to the Intermittent menu, press the INT button (2). -
Page 26: Vacuum Steps
Display Operation Options 4.6.7 Vacuum steps 1. Press the + (6) or − (5) button to For vacuum unit in go to the desired vacuum steps. mbar: 2. Select the vacuum steps by • 10 pressing the MAX button (7). • 20 » The vacuum steps are set. You are •... -
Page 27: Auto Mode
Stop AUTO mode accordingly. 4.8 Electronic fill-level monitoring system The ATMOS S 351 OT has an electronic fill-level monitoring system that switches off the pump when the maximum fill level is reached. At the same time, the device beeps and then Secretion canister full appears in the display. The maximum fill level is reached when the liquid comes into contact with the sensor in the secretion canister lid. If a large amount of foam is generated, you should fit the enclosed anti-foaming device over the sensor so that the pump does not switch off prematurely. As soon as the sensor is no... -
Page 28: Warning Messages
In the event of strong foaming: Fit the anti-foaming device over the sensor. The warning message ‘Secretion canister full’ is deactivated when disposable canister systems are in use. The device temperature is Please provide sufficient too high. cooling. Service is required. Notify ATMOS Service. 28 Operation... -
Page 29: Trolley With Standard Rail Atmos S 351 (Ref 320.0070.0)
1. Plug the foot controller into its connection before switching on the device. 2. Connect the suction catheter, suction attachment or suction instrument to the suction hose. 3. Switch on the ATMOS S 351 OT. Make sure that the pilot lamp in the on/off switch is illuminated. 4. Select the final vacuum required using one of the buttons (5), (6) and (7). Keeping the − (5) and + (6) buttons pressed changes the value faster. -
Page 30: Reprocessing
5 Reprocessing 5.1 Safety instructions for reprocessing 5.1.1 General safety instructions We recommend that you always document all maintenance work and part replacements in writing. It is the responsibility of the user to ensure that the required results of cleaning and disinfection are achieved. -
Page 31: Preparing And Completing Reprocessing
NOTICE Unsuitable cleaning agents and disinfectants. The product may become damaged. Do not use any process chemicals containing the following ingredients on plastic • parts: • Chloramides or phenol derivatives • Do not use abrasives. 5.2 Preparing and completing reprocessing Prior to reprocessing 1. -
Page 32: Wipe Cleaning
Cleaning agent (manufacturer) Active ingredients in 100 g Type Dismozon® plus 95.8 g magnesium monoperoxyphthalate hexahydrate Granulate (Bode Chemie) Kohrsolin® extra 14.1 g (ethylenedioxy)dimethanol, 5 g glutaral, Liquid (Bode Chemie) 8 g didecyldimethylammonium chloride concentrate perform® 45 g pentapotassium-bis(peroxymonosulphate bis(sulphate), anionic Powder (Schülke & Mayr) surfactants, non-ionic surfactants, phosphonates... -
Page 33: Reprocessing The Accessories
5.4 Reprocessing the accessories 5.4.1 Overview Accessory Secretion canister system Secretion canister Secretion canister lid Double hose connector Bacterial and viral filter Hoses Suction hose Vacuum hose Connecting hose Immediate filter change in the event of discolouration, contamination, oversuction. The bacterial filter is no longer in optimum condition if the vacuum displayed is above −0.3 bar when the vacuum regulator is in the ‘MAX’ position and the suction hose is open. 5.4.2 Selecting process chemicals Follow the manufacturer’s instructions for the process chemical. Secre- tion Cleaning agent... -
Page 34: Secretion Canister System
5.4.3 Secretion canister system Characteristics The accessories have the following hard-to-reach areas: • Double hose connector (lumens) • Sealing system complete (hollow spaces) Take particular care when reprocessing hard-to-reach areas. Pre-treating at the site 1. Empty the secretion canister. of use 2. -
Page 35: Hoses
Checking and 1. Check whether reprocessing was successful with a maintaining suitable light magnifier. • Free of particles and organic material 2. Dispose of damaged accessories or have them repaired. Assembly Not necessary. Function check Not necessary. Packaging 1. Label the accessories. 2. - Page 36 Checking and 1. Check whether reprocessing was successful with a maintaining suitable light magnifier. 2. If reprocessing was not successful, reprocess the hoses again. 3. Dispose of damaged hoses. Assembly Not necessary. Function check Not necessary. Packaging 1. Label the hoses. 2. Pack the hoses using a packaging system according to DIN EN ISO 11607.
-
Page 37: Maintenance And Service
ATMOS recommends: Work should be carried out by an authorised ATMOS service partner. This ensures that repairs and tests are carried out professionally, original spare parts are used and warranty claims remain unaffected. -
Page 38: Troubleshooting
Check whether the secretion canister the secretion canister and its closure system have engaged and the device. correctly in the bracket and whether the ATMOS S 351 OT has been screwed correctly to the trolley. Warning message Hydrophobic bacterial Replace the hydrophobic bacterial during suction and viral filter is blocked. - Page 39 (ATMOS S 351 OT blocked. has overheated). Ambient temperature Use the ATMOS S 351 OT only in the too high. specified temperature range. Try using auto standby (less heat build- up). Fan is defective. Call ATMOS Service.
-
Page 40: Accessories
8 Accessories Accessories Foot control for ATMOS S 351 444.0478.0 Trolley with standard rail ATMOS S 351 320.0070.0 Stand rail clamp Serres®, ATMOS S 351 444.0484.0 Graduated secretion jar 5 l 444.0034.0 Secretion canister 1.5 l (PC) 444.0100.0 Secretion canister 2.5 l (PC) 444.0099.0 Secretion canister lid 444.0650.0... - Page 41 ATMOS-Suction Bag 2 l with Gelling Agent, 100 pcs. 401.0201.0 ATMOS-Suction Bag 2 l, 100 pcs. 401.0202.0 ATMOS-Suction Bag 3 l with Gelling Agent, 70 pcs. 401.0301.0 ATMOS-Suction Bag 3 l, 70 pcs. 401.0302.0 Serres®-suction bag 1 l without gelling agent, 36 pcs. 312.0466.0 Serres®-suction bag 1 l with gelling agent, 32 pcs. 312.0467.0 Serres® disposable suction bag 2 l, without gelling agent, 24 pcs.
-
Page 42: Disposal
The following notes only apply to reusable products. 1. Clean and disinfect the reusable products of the secretion canister system. 2. Recycle the disinfected reusable products. ATMOS S 351 OT Do not dispose of the product together with household waste. 1. Clean and disinfect the product. -
Page 43: Technical Data
Secretion canister 1.5 l / 2.5 l Polycarbonate canisters Supports for using disposable bags: • ATMOS (1 l / 2 l / 3 l) • Receptal® (1 l / 1.5 l / 2 l / 3 l) • Serres® (1 l / 2 l / 3 l) •... -
Page 44: Hydrophobic Dds Bacterial And Viral Filter
Heat output approx. 135 J/s Noise level < 54 dB (A) @ 1 m (according to ISO 7779) Environmental conditions: Transport/storage Temperature range −10...+60 °C Air humidity without 30...95 % condensation Air pressure 700...1060 hPa Environmental conditions: Operation Temperature range +5...+40 °C Air humidity without 30...95 % condensation Air pressure... -
Page 45: Notes On Emc
11 Notes on EMC Medical electrical devices are subject to special precautions with regard to EMC and must be installed according to the following EMC notes. Guidance and manufacturer’s declaration – ambient conditions The product is suitable for use in the following environments: •... - Page 46 Notes 46 Notes on EMC...
- Page 47 Notes Notes on EMC...
- Page 48 ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Str. 16 79853 Lenzkirch/Germany Phone: +49 7653 689-0 info@atmosmed.com www.atmosmed.com...
