KE2 EvaporatorEfficiency
Quick Start Guide
This reference should remain on site with the installed KE2 Evaporator Efficiency controller.
A
B
C
E

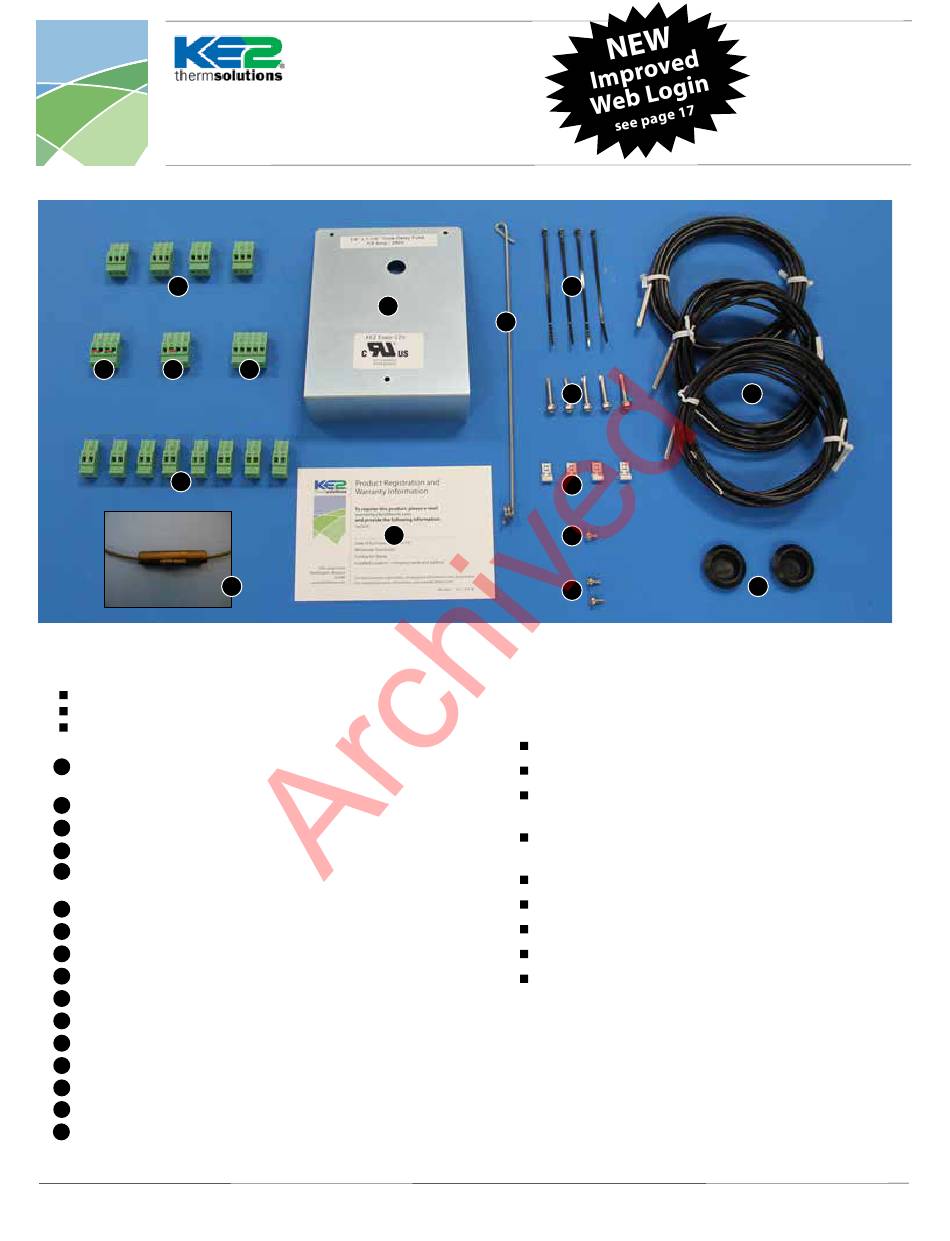

Parts List
The following parts are included in the
KE2 Evaporator Efficiency (KE2 Evap) controller kits:
Kit #20178 with 120/208-240 VAC controller
Kit #20844* with 120/208-240 VAC controller
Kit #20631** with 120/208-240 VAC controller
A
(4) 3-position screw down terminals (for power in, transducer
and 3A relays)
(1) 120 Voltage jumper
B
(1) 208-240V Voltage jumper (already on back of KE2 Evap)
C
(1) 5-position screw down terminal (for EEV)
D
E
(9) 2-position screw down terminals (for sensors and digital
input, analog output)
F
(1) high voltage safety shield
G
(1) warranty card
(1) Air sensor mount
H
I
(4) wire ties (rated for low temp)
J
(5) self-tapping screws
K
(4) 90 degree quick disconnects
L
(1) fine thread machine screw with lock washer
M
(2) course thread screws
N
(3) 10' temperature sensors
(2) 1/2" plastic knockout plugs
O
(1) liquid line solenoid in-line fuse
P
© Copyright 2014 KE2 Therm Solutions, Inc., Washington, Missouri 63090
F
D
G
P
* KE2 Ultimate Install kit includes KE2 Evap Mounting Box pn 20687 and 40' temperature sensors
** kit does not include temperature sensors
I
H
J
K
L
M
Supplies List
The KE2 Evap is supplied with all of the accessories required for the con-
troller to work, however, standard truck stock items will also be required
to install the controller. To simplify the installation, a list of items has
been provided.
Conduit to go between the controller and the evaporator
(2) Conduit connectors (straight or elbow as required)
(11) High voltage wires matched to the load of the heaters,
fans, liquid line solenoid, alarm (if used), and the controller.
(8) Spade Connectors matched to the gauge of high voltage
wires
Wire labeling (numbers, colors, etc.)
Additional wire ties
18 gauge twisted shielded pair (if extending sensor wires)
Foam insulation if running wires outside the space.
Silicone (for sealing any box penetrations)
Accessories to Aid in Installation
The following parts are available separately:
(1) 25' Wire Harness pn 20670 or 40' Wire Harness pn 20737
(1) KE2 Evap Mounting Box pn 20687
(1) KE2 Terminal Board pn 20993
Further information on the Wire Harness and Mounting Box can be
found in literature Q-1-21.
Q.1.3
February 2014
N
O
