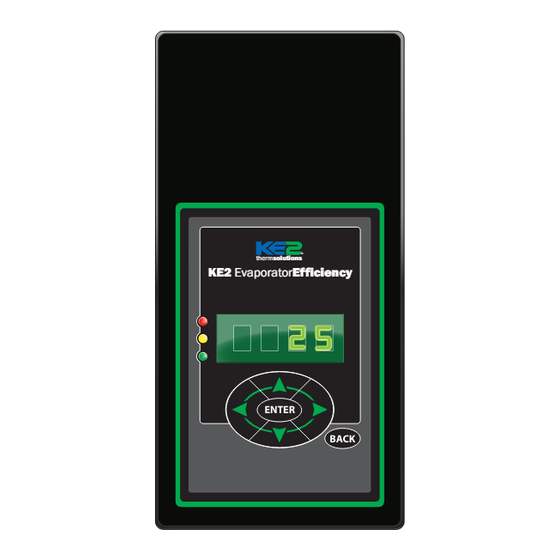

KE2 Therm Solutions Evaporator Efficiency Step-By-Step

KE2 Evaporator Efficiency
thermsolutions TM
KE2 EvaporatorEfficiency
2
2
ENTER
BACK
ENTER
Non-adjustable
Variables
Menus:
(view only)
ROOM TEMP
COIL TEMP
SYSTEM MODE
SUPERHEAT
ENTER
SUCTION PRESSURE
T1 SUCTION TEMP
SATURATION TEMP
Menu
VALVE % OPEN
Parameters:
T4 AUX TEMP
COMPRESSOR RELAY
DEFROST RELAY
FAN RELAY
AUX RELAY
DIG 1 STATUS
DIG 2 STATUS
DIG 3 STATUS
IP OCTET 1
IP OCTET 2
IP OCTET 3
IP OCTET 4
SUBNET MASK OCTET 1
SUBNET MASK OCTET 2
SUBNET MASK OCTET 3
SUBNET MASK OCTET 4
FIRMWARE VERSION
Indicator lights
To move through
controller menus:
To return to Main Menu:
To toggle beween
description and value :
To change settings:
To save setting changes:
Alarms
(view only)
NO ALARM
PRESSURE SENSOR
SUCTION TEMP SENSOR
AIR TEMP SENSOR
COIL TEMP SENSOR
1
AUX TEMP SENSOR
HIGH SUPERHEAT
4
LOW SUPERHEAT
1
HIGH AIR TEMP
LOW AIR TEMP
EXCESS DEFROST
DEFR TERM ON TIME
DOOR SWITCH
COMMUNICATION ERROR
EXT ALARM
EMAIL FAILURE
FTP
SNTP
DEFROST PARAMETER/MAX DEFROST TIME
1 T1 and T4 are parameters that
can be set to various functions.
The default for T1 is Suction
Temp, the T4 is Coil Temp.
2 The Setpoint paramenters
shown in BOLD (Valve Type,
Room Temp Setpoint and
Defrost Mode) need to be set by
the user prior to start up. The
other Setpoint Parameters can
also be adjusted, however the
factory setpoints are generally
correct for most applications.
3 The Setpoint parameters shown
in ITALIC are only displayed
when a Custom EEV is used.
4 Displayed when an EEV is used.
5 Only available if mechanical
valve is selected. When using an
electric valve the default,
suction temperature, is required.
6 The Setpoint parameters shown
in BOLD ITALIC are used for
bonded controllers only.
7 Only displayed when Run Time
Defrost is selected.
Red light - critical alarm (system o )
Yellow light - non-critical alarm (system running)
Green light - compressor on
Green ashing - compressor waiting on timer to start/stop
Left and Right Arrows Use to move between Menus
Up Arrow and Down Arrow
Scroll through Menu Parameters
Press BACK to return to the previous view.
BACK
Press ENTER to go from parameter to value.
ENTER
Press and hold ENTER for 3 seconds, when display
ENTER
begins blinking changes can be made
Press and hold ENTER for 3 seconds to save change
ENTER
Setpoints
ROOM TEMP 2
DEFROST TYPE 2
VALVE TYPE 2
MOTOR TYPE 3
3
MOTOR STEP RATE
3
MAX VALVE STEPS
4
SUPERHEAT
4
MAX OPERATING PRES
REFRIGERANT
AUX TEMP 4 MODE
AUX TEMP 1 MODE 5
AUX RELAY MODE
FAN SPEED
MIN COMP RUN TIME
MIN COMP OFF TIME
REFRIG FAN MODE
DEFROST MODE
DEFROSTS / DAY
1ST DEFROST DELAY
DEFROST FAN STATE
DEFROST TERM TEMP
DRAIN TIME
COMP RUN TIME 7
ELEC DEFROST MODE
FAN DELAY TEMP
MAX FAN DELAY TIME
PUMP DOWN TIME
MULTI AIR TEMP CTRL
MULTI EVAP COOL 6
MULTI EVAP DEFROST 6
MULTI EVAP SENSOR 6
HIGH TEMP ALARM OFFSET
HIGH TEMP ALARM DELAY
LOW TEMP ALARM OFFSET
LOW TEMP ALARM DELAY
Variables for DIG IN STATUS
DOOR ALARM DELAY
DISABLED
DIG IN 1 MODE
2ND (ROOM) TEMP
DIG IN 1 STATE
DOOR SWITCH
DIG IN 2 MODE
EXT ALARM
DIG IN 2 STATE
SYSTEM OFF
DIG IN 3 MODE
DEFROST LOCKOUT
DIG IN 3 STATE
DEFROST INTERLOCK
2ND ROOM TEMP
SUCT PRES OFFSET
SUCT TEMP OFFSET
AIR TEMP OFFSET
COIL TEMP OFFSET
AUX TEMP OFFSET
TEMP UNITS
AIR TEMP DIFF
EXTREME TEMP DIFF
PROPORTIONAL
INTEGRAL
DERIVATIVE
June 2015
Enter
Manual
Password
MANUAL CONTROL
MANUAL VALVE
CLEAR ALARMS
MANUAL COMPRESSOR RELAY
MANUAL DEFROST RELAY
MANUAL FAN RELAY
MANUAL AUX RELAY
FACTORY RESET
WEB PASSWORD RESET
SMART ACCESS
DHCP
DOD INIT
CLEAR MD
A.1.20
4
