KE2 Therm Solutions KE2 Temp + Defrost Installation Manual

KE2 Temp + Defrost
For Medium Temperature Applications with Air Defrost
Installation Manual
This reference should remain on site with the installed KE2 Temp + Defrost controller.
A

Select Mounting Location

The KE2 Temp is designed for a wide range of applications; therefore
there are many potential installation locations. Breaking down the in-
stallation location by application provides the most helpful reference.
Application Locations
Under counter Evaporator cabinet
Outside controlled space
Walk-in Evaporator cabinet
Adjacent to entrance
Side-by-side Above door
Remote Monitoring, Control, Alarm Notifications
The KE2 Temp includes RS-485 Modbus communications, and can now
be accessed remotely using the KE2 Local Area Dashboard and Alarms
(KE2 LDA). See page 4 for additional details.
Service Call Saver -
Post Defrost Indicator
To eliminate unnecessary service calls, the KE2 Temp + Defrost alerts
the user when it is coming out of a defrost cycle using the onboard
display. The display alternates between dEF and the actual temperature
measured by the air sensor. This continues until the temperature has
reached setpoint, or for the amount of time set by dFt (Defrost Time)
whichever is shorter.
© Copyright 2016 KE2 Therm Solutions, Inc., Washington, Missouri 63090
(pn 20611)
Programming
Press & hold ENTER button
Use arrow buttons to
tS = Temperature Setpoint
diF =
CSH = Max Compressor
dPd = Defrost Per Day
dFt = Defrost Time
B
LAO =
tAd = Temp Alarm Delay
Adr = Mod Bus Address
Unt = Units for temp display
Press ENTER & use arrows
Press & hold ENTER button
Alarms
When amber LED is lit:
SSA = Shorted Sensor Alarm
OSA = Open Sensor Alarm
HtA = High Temp Alarm
LtA = Low Temp Alarm
D
C
pn 20679
E

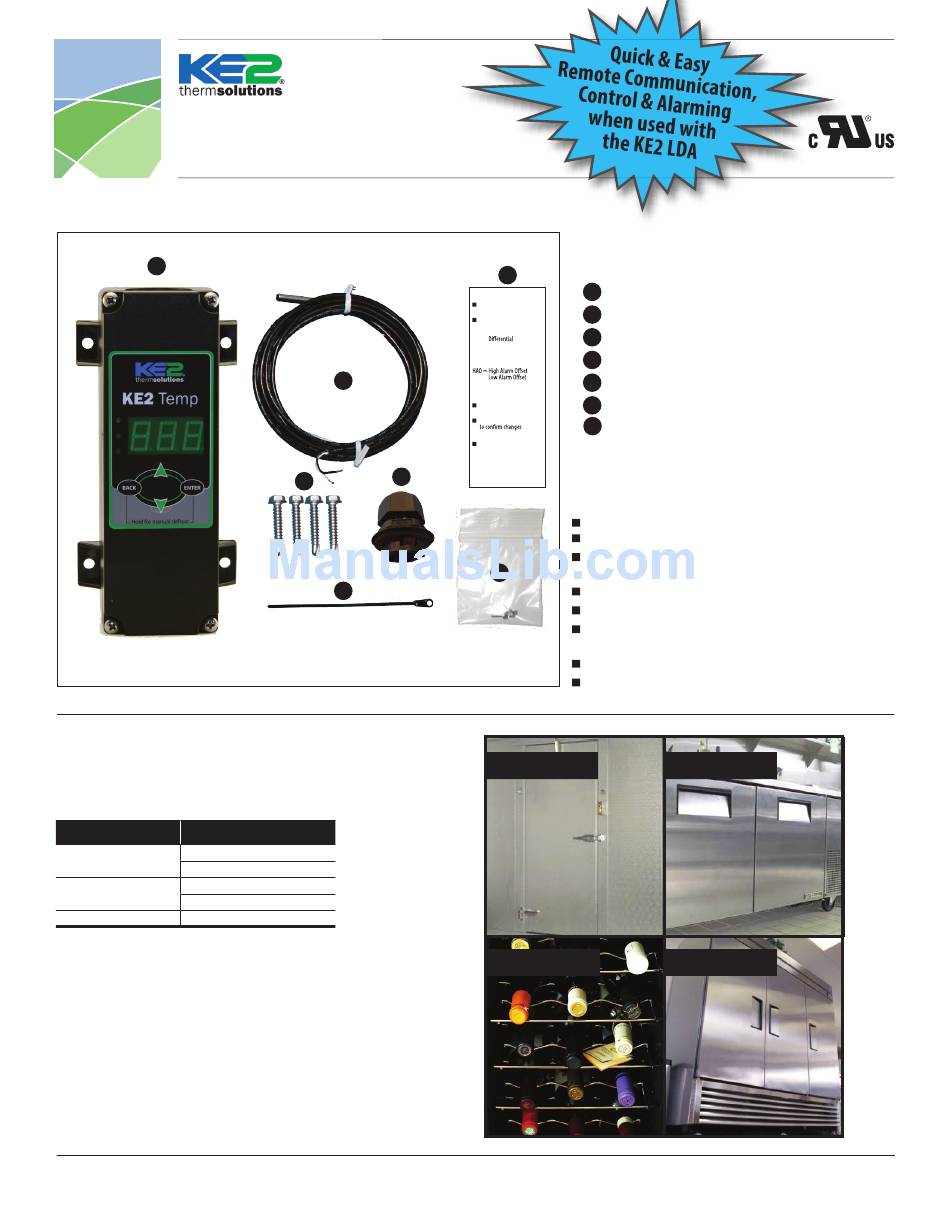

What's in the Kit - Parts List
The following parts are included in the
KE2 Temp + Defrost kit:
F
A
(1) KE2 Temp + Defrost controller
B
to access setpoint menu (1) temperature sensor - 45"
select function:
C
(4) self-tapping mounting screws
Starts/ Hour
D
(1) liquid tight cord grip
E
(1) sensor ziptie
F
(1) programming sticker
to change value
G
(2) screws for high voltage shield

Supplies List

All of the accessories required for the controller to work
06/14
are supplied, however, standard truck stock items are re-
quired to install the controller. A list is provided below:
conduit to go between the controller & evaporator
(2) conduit connectors (straight or elbow as required)
(4) high voltage wires matched to the load of the
F
liquid line solenoid/compressor and the controller.
wire labeling (numbers, colors, etc.)
additional wire ties
18 gauge twisted shielded pair (if extending sensor
wires/adding communication)
foam insulation (if running wires outside the space)
silicone (for sealing any box penetrations)
Walk-in
Wine Cabinet
Q.3.20 (Q.1.20)
October 2016
Under Counter
Commercial
