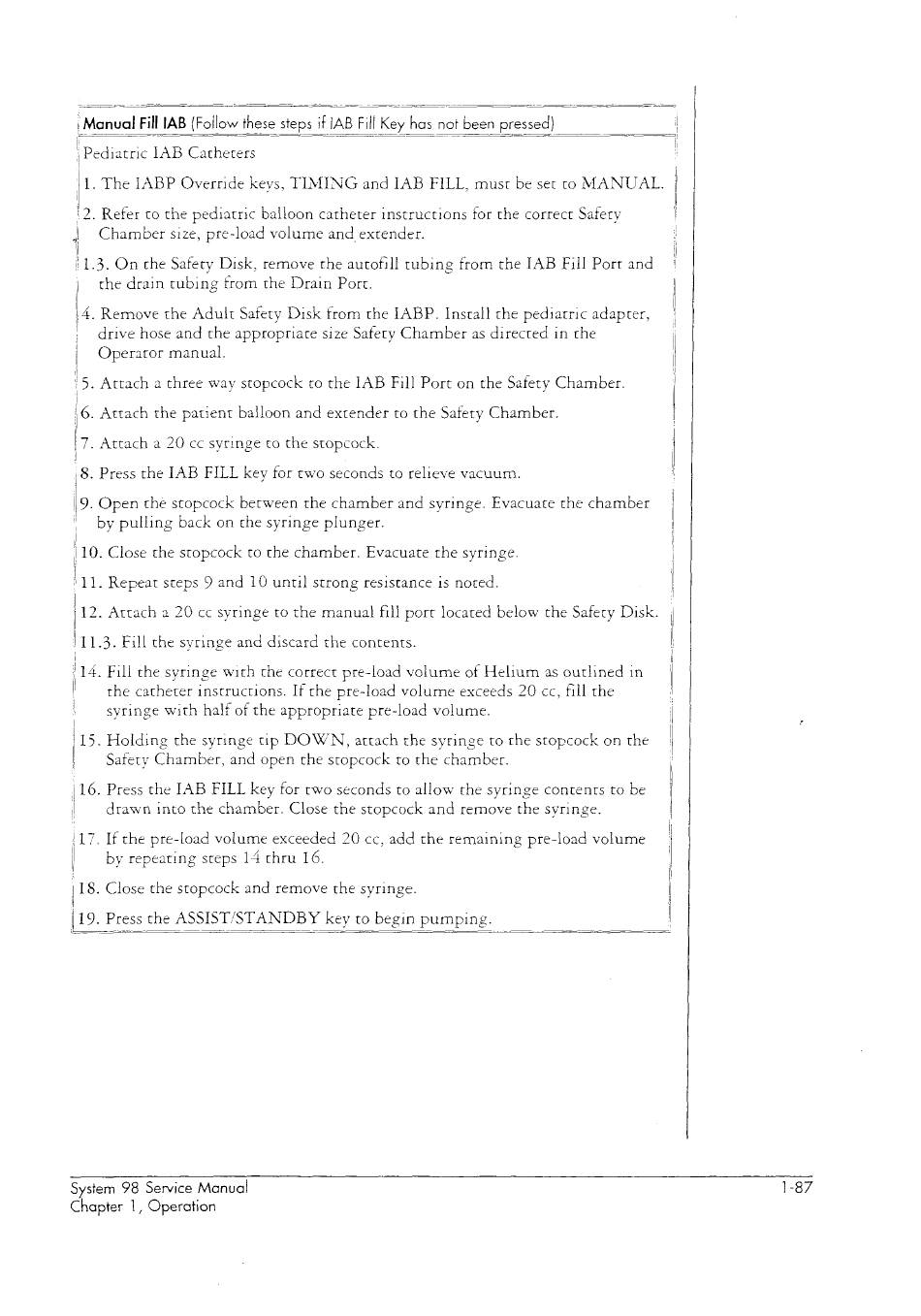

Datascope System 98 Service Manual page 91

„Manual Fill IAB (Follow these steps if IAB Fill Key has not been pressed)
| Pediatric IAB Catheters
'2. Refer to the pediatric balloon catheter instructions for the correct Safety
| Chamber size, pre-load volume and extender.
|
1
: 1.3. On che Safety Disk, remove the autofill tubing from the IAB Fill Port and
the drain tubing from the Drain Port.
4. Remove the Adult Safety Disk from the IABP. Install the pediatric adapter,
drive hose and the appropriate size Safety Chamber as directed in the
Operator manual.
'5. Actach a three way stopcock to the IAB Fill Port on the Safety Chamber.
|
|
|
|
| 7. Attach a 20 ce syringe to the stopcock.
|
6. Attach the patient balloon and extender to the Safety Chamber.
| 8. Press the IAB FILL key for two seconds to releve vacuum.
|9. Open che stopcock between the chamber and syringe. Evacuate the chamber
' by pulling back on the syringe plunger.
10. Close the stopcock to the chamber. Evacuate the syringe.
'11. Repeat steps 9 and 10 until strong resistance is noted.
111.3. Fill the syringe and discard the contents.
14. Fill the syringe with che correct pre-load volume of Helium as outlined in
| the catheter instructions. If the pre-load volume exceeds 20 cc, fill the
syringe with half of the appropriate pre-load volume.
|
| 15. Holding the syringe up DOWN, attach the syringe to the stopcock on the
Safety Chamber, and open the stopcock to the chamber.
116. Press che TAB FILL key for rwo seconds to allow the syringe contents to be
| drawn into the chamber. Close the stopcock and remove the syringe.
117. If the pre-load volume exceeded 20 cc, add the remaining pre-load volume
by repeating steps 14 thru 16.
| 18. Close the stopcock and remove the syringe.
|
!
| 19. Press the ASSIST/STANDBY key to begin pumping.
1. The IABP Override kevs, TIMING and IAB FILL, must be ser to MANUAL. |
|
| .
112. Attach a 20 cc syringe to the manual fill port located below the Safety Disk.
|
|
