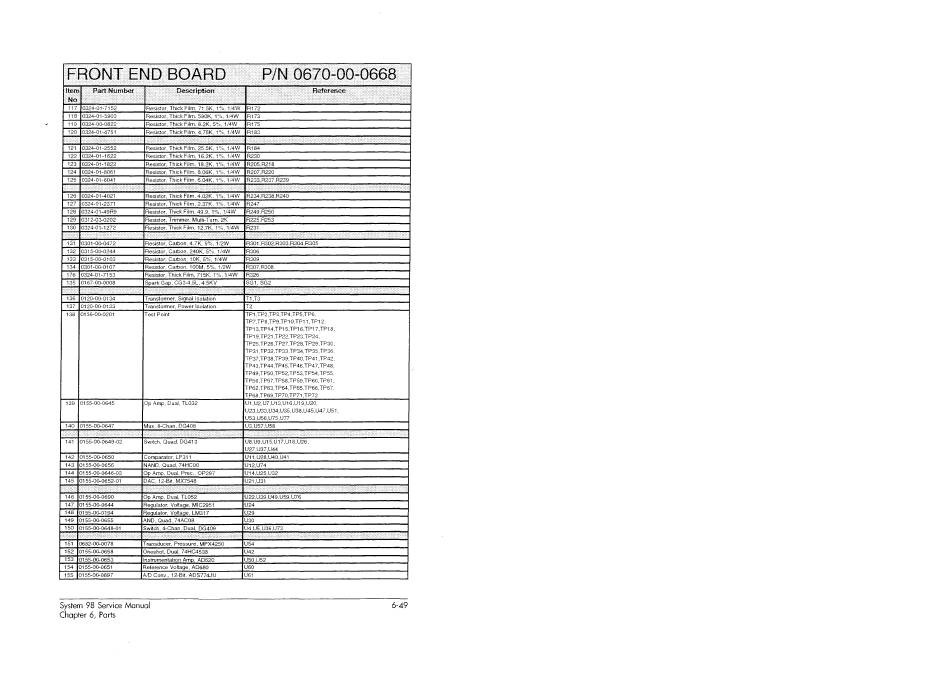

Datascope System 98 Service Manual page 327

0324-01-7152 Resistor, Thick Film, 71.5K, 1%, 1/4W
R172
118 |0324-01-5903 Resistor, Thick Film, 590K, 1%, 1/4W JR173
119 ]0324-00-0822 Resistor, Thick Film, 8.2K, 5%, 1/4W [8175
120 10324-01-4751 Resistor, Thick Film, 4.75K, 1%, 1/4W_JR183
121 #0324-01-2552 Resistor, Thick Film, 25.5K, 1%, 1/4W |R184
122 10324-01-1622 Resistor, Thick Film, 16.2K, 1%, 1/4W JR230
123 |0324-01-1822 Resistor, Thick Film, 18.2K, 1%, 1/4W İR205.R218
124 |0324-01-8061 Resistor, Thick Film, 8.06K, 1%, 1/4W {|R207,R220
Resistor, Thick Film, 6.04K, 1%, 1/4W R233,R237,R239
125 [0324-01-6041
126 [0324-01-4021
Resistor, Thick Film, 4.02K,
26, 1/4W
o,
R234,R238,R240
1
Resistor, Thick Film, 2.37K, 1%, 1/4W
127 10324-01-2371 R247
128 [0324-01-49R9 Resistor, Thick Film, 49.9, 1%, 1/4W R249,R250
129 10312-03-0202 Resistor, Trimmer, Muiti-Turn, 2K R225,R253
130 10324-01-1272 Resistor, Thick Film, 12.7K, 1%, 1/4W JR231
131 |0301-00-0472 Resistor, Carbon, 4.7K, 5%, 1/2W R301,R302,R303,R304,R305
132 |0315-00-0244 Resistor, Carbon, 240K, 5%, 1/4W R306
133 10315-00-0103 Resistor, Carbon, 10K, 5%, 1/4W R309
134 10301-00-0107 Resistor, Carbon, 100M, 5%, 1/2W R307,R308
176 |0324-01-7153 Resistor, Thick Film, 715K, 1%, 1/AW 1R326
135 [0167-00-0008 Spark Gap, CG3-4.5L, 4.5KV SG1, SG2
136 10120-00-0134
Transformer, Signal Isolation
Τα Τὸ
137 10120-00-0133 Transformer, Power Isolation
T2
138 [0136-00-0201 Test Point
TP1,TP2,TP3,TP4,TP5,TP6,
TP7,TP8,TP9,TP10,TP11,TP12.
TP13,TP14,TP15,TP16,TP17,TP18,
'TP19,1P21,1P22,1P23,TP24,
TP25,TP26,TP27,TP28,TP29.TP30,
TP31,TP32,TP33,TP34,TP35,TP36,
TP37,TP38,TP39,TP40,TP41,TP42,
TP43,TP44,TP45,TP46,TP47,TP48,
TP49,TP50,TP52,TP53,TP54,TP55,
TP56,TP57,TP58,TP59,TP60,TP61,
TP62,TP63,TP64,TP65,TP66,TP67,
TP68,TP69,TP70,TP71,TP72
139 {0155-00-0645 Op Amp, Dual, TLO32 U1,U2,U7,U13,U16,U19,U20,
U23,U33,U34,U35,U38,U45,U47,U51,
U53,U56,U75,U77
140 [0155-00-0647 Mux, 8-Chan, DG408
U3,U57,U58
141 [0155-00-0649-02 Switch, Ouad, DG413
U8,U9,U15,U17,U18,U26,
U27,U37,U44
142 |0155-00-0650 Comparator, LP311 U11,U28,U40,U41
143 [0155-00-0656 NAND, Quad, 74HC00 U12.U74
144 [0155-00-0646-03 Op Amp, Dual, Prec., OP 297 U14,U25,U32
145 [0155-00-0652-01 DAC, 12-Bit, MX7548 U21,U31
146 |0155-00-0690
Op Amp, Dual, TLOS2
U22,U39,U49,U59,U76
147 10155-00-0644 Regulator, Voltage, MIC2951 U24
148 10155-00-0194 Regulator, Voltage, LM317 U29
149 {0155-00-0655 AND, Quad, 74AC08 U30
150 [0155-00-0648-01
Switch, 4-Chan, Dual, DG409
U4,U5.U36,U73
151 [0682-00-0078 Transducer, Pressure, MPX4250 U54
152 |0155-00-0658 Oneshot, Dual, 74HC4538 U42
153 ]0155-00-0653 Instrumentation Amp, AD620 U50,U52
154 ]0155-00-0651 Reference Voltage, AD680 U60
155 10155-00-0897 A/D Conv., 12-Bit, ADS774JU U61
