il.
12.
는 >
14.
6. Close the stopcock to the disk. Evacuate the syringe.
8.
9.
/ 10. Fill the syringe and discard the contents.

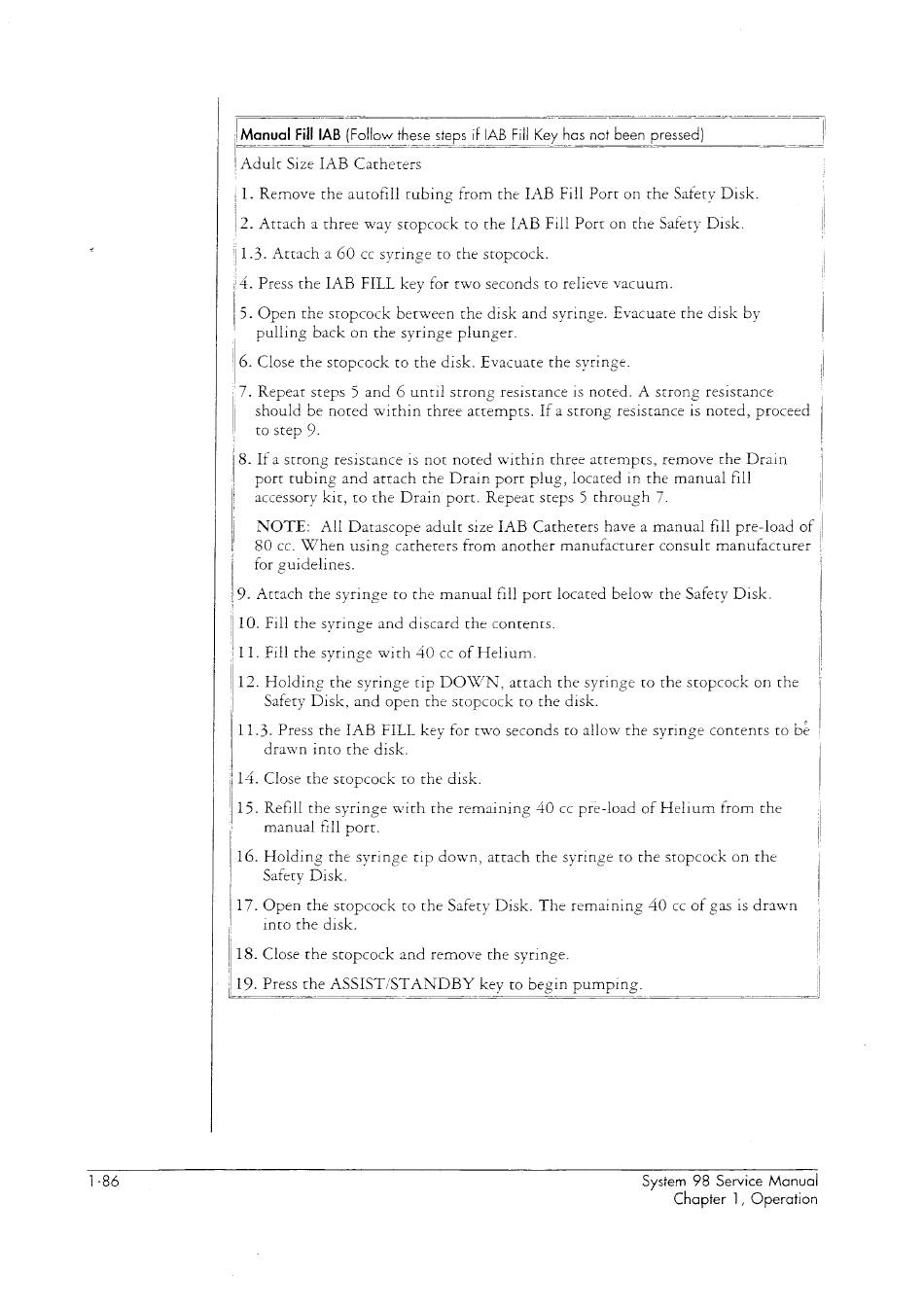

|Manual Fill IAB (Follow these steps if IAB Fill Key has not been pressed] i
| Adult Size IAB Catheters
Remove the autofill cubing from the IAB Fill Port on the Safety Disk.
Attach a three way stopcock to the IAB Fill Port on the Satety Disk. |
11.3. Attach a 60 cc syringe to the stopcock.
Press the IAB FILL key for two seconds to relieve vacuum.
| 5. Open the stopcock between the disk and syringe. Evacuate the disk by |
pulling back on the syringe plunger.
. Repeat steps 5 and 6 until strong resistance is noted. A strong resistance
should be noted within three attempts. If a strong resistance is noted, proceed
to step 9.
If a strong resistance is not noted within three attempts, remove the Drain
port tubing and attach the Drain port plug, located in the manual fill
accessory kit, to the Drain port. Repeat steps 5 through 7.
NOTE: All Datascope adult size IAB Catheters have a manual fill pre-load of |
80 cc. When using catheters from another manufacturer consult manufacturer i
for guidelines.
Attach the syringe to the manual fill port located below the Safety Disk.
(11. Fill che syringe with 40 cc of Helium.
12. Holding the syringe tip DOWN, attach the syringe to the stopcock on the
Safety Disk, and open the stopcock to the disk.
11.3. Press the [AB FILL key for two seconds го allow the syringe contents to be
drawn into the disk.
114. Close the stopcock to the disk.
15. Refill the syringe with the remaining 40 cc pre-load of Helium from the
manual fill port.
16. Holding the syringe tip down, attach the syringe to the stopcock on the
Safery Disk.
17. Open the stopcock to the Safety Disk. The remaining 40 cc of gas is drawn
into the disk.
18. Close the stopcock and remove the syringe.
19. Press the ASSIST/STANDBY key to begin pumping.
1-86 System 98 Service Manuva
Chapter 1, Operation
