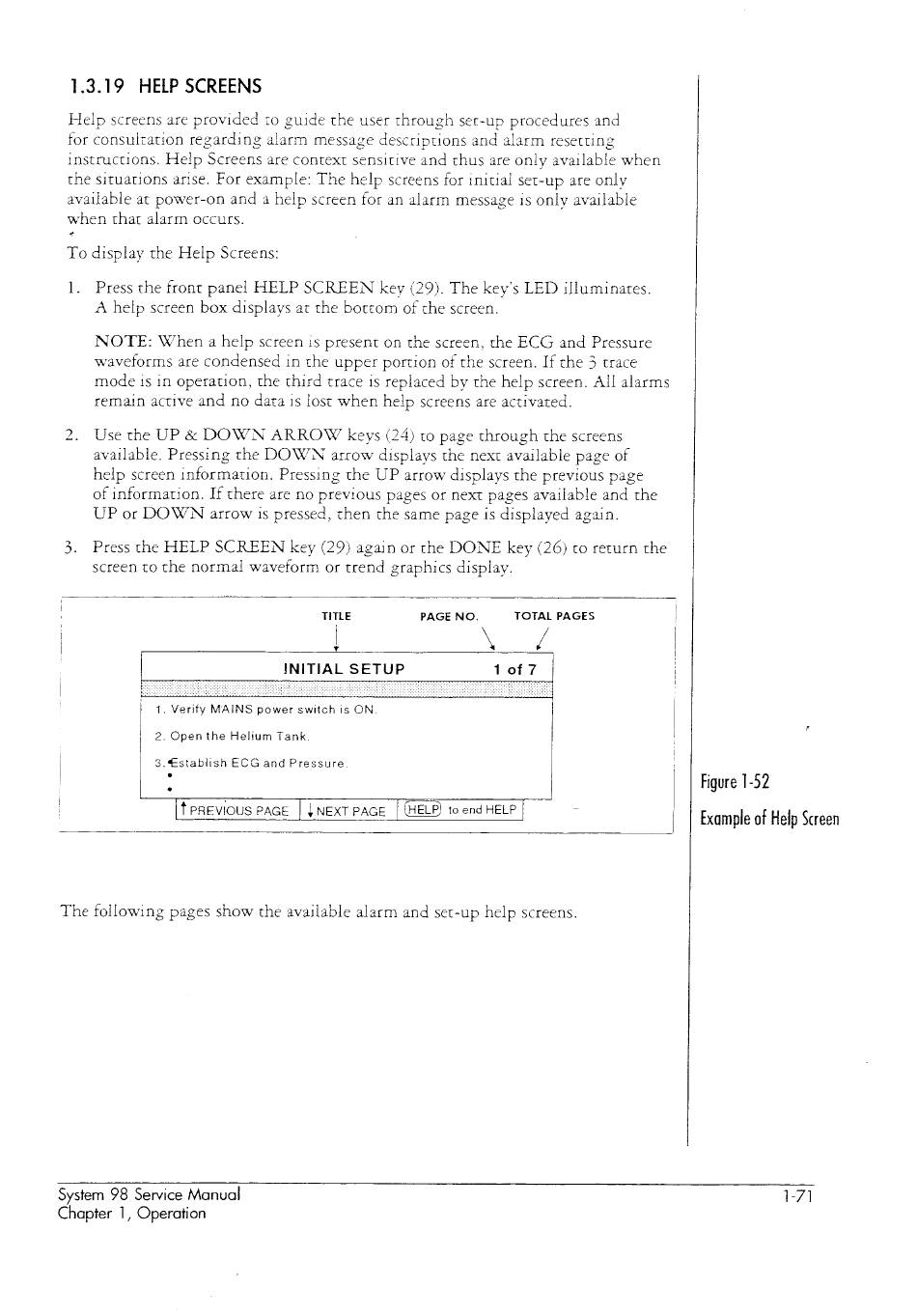

Datascope System 98 Service Manual page 75

1.3.19 HELP SCREENS
Help screens are provided to guide the user through set-up procedures and
for consultation regarding alarm message descriptions and alarm resetting
instructions. Help Screens are context sensitive and thus are only available when
the situations arise. For example: The help screens for initial set-up are only
available at power-on and a help screen for an alarm message is only available
when that alarm occurs.
2
To display the Help Screens:
1. Press the front panel HELP SCREEN key (29). The key's LED illuminates.
A help screen box displays at the bottom of the screen.
NOTE: When a help screen is present on the screen, the ECG and Pressure
waveforms are condensed in the upper portion of the screen. If the 3 trace
mode is 1n operation, the third trace is replaced by the help screen. All alarms
remain active and no data is lost when help screens are activated.
Use the UP & DOWN ARROW keys (24) to page through the screens
available. Pressing the DOWN arrow displays the next available page of
help screen information. Pressing the UP arrow displays the previous page
of information. If there are no previous pages or next pages available and the
UP or DOWN arrow is pressed, then the same page is displayed again.
Press the HELP SCREEN key (29) again or the DONE key (26) to return the
screen to the normal waveform or trend graphics display.
| TITLE PAGE NO. TOTAL PAGES |
| | \ / |
| ! A |
| |
I
INITIAL SETUP 1of7
1. Verify MAINS power switch is ON.
2. Openthe Helium Tank. |
| i
| 8. «Establish ECG and Pressure. i
|
|İ PREVİOUS PAGE | [NEXT PAGE | (HELP) to end HELP -
The following pages show the available alarm and set-up help screens.
Figure 1-52
Example of Help Screen
