UM3353
User manual
STM32 Nucleo-64 board (MB2046)
Introduction
The STM32 Nucleo-64 board, based on the MB2046 reference board
(NUCLEO-C071RB
order code) provides an affordable
and flexible way for users to test new concepts and build prototypes with different combinations of performance, power
consumption, and functionality.
®
The ARDUINO
Uno V3 connectivity support and the ST morpho headers provide an easy means of expanding the functionality
of the STM32 Nucleo open development platform with a wide choice of specialized shields.
The STM32 Nucleo-64 board requires no separate probe, as it integrates the STLINK-V2EC debugger/programmer.
The STM32 Nucleo-64 board comes with comprehensive free STM32 software libraries and examples available with the
STM32CubeC0
MCU Package.

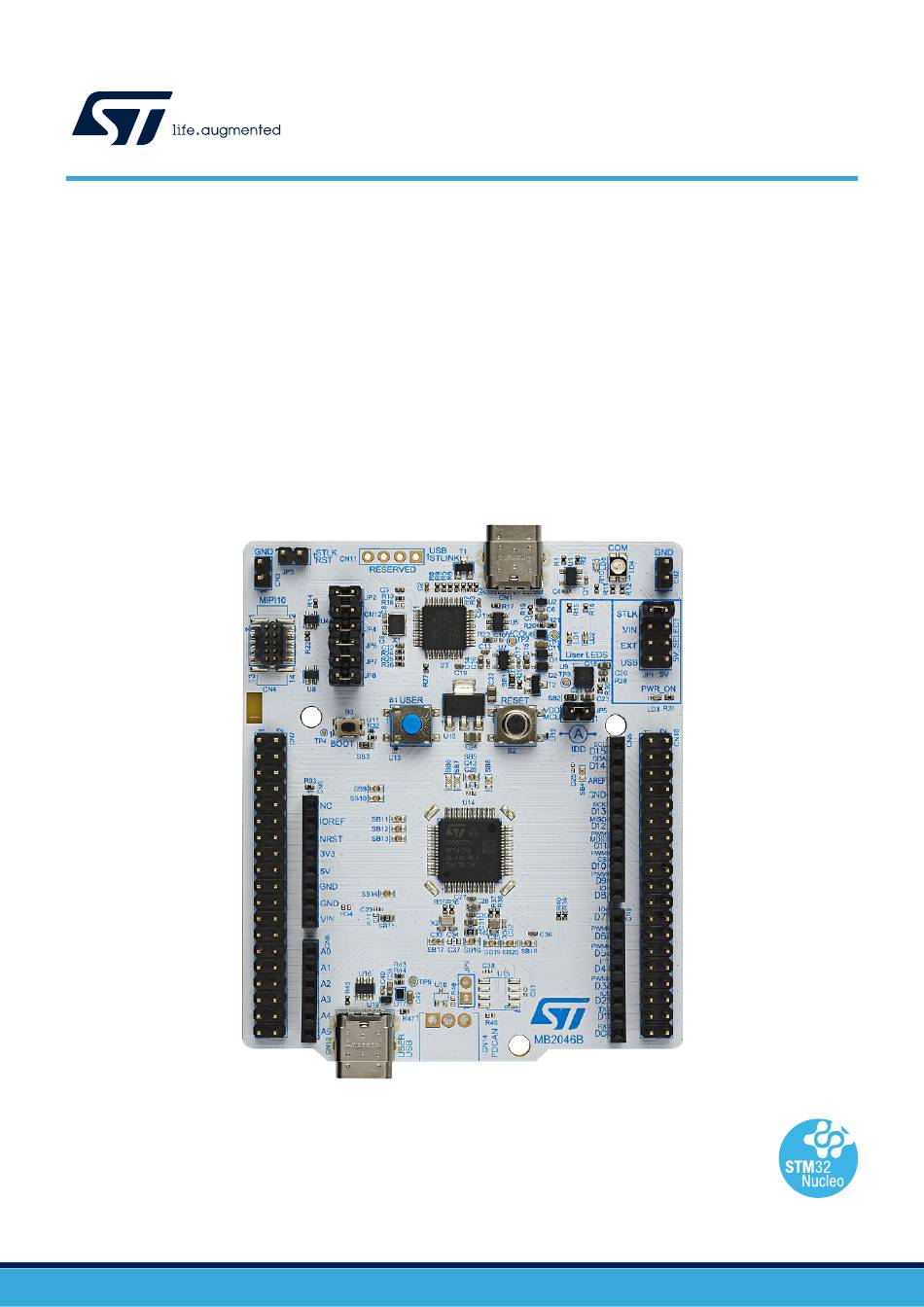

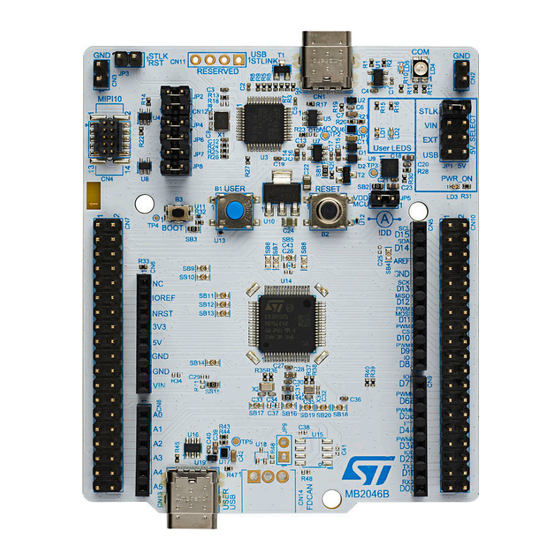

Figure 1.
NUCLEO-C071RB board top view
Picture is not contractual.
UM3353 - Rev 1 - August 2024
www.st.com
For further information contact your local STMicroelectronics sales office.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ST STM32
Summary of Contents for ST STM32
-
Page 1: Figure 1. Nucleo-C071Rb Board Top View
® The ARDUINO Uno V3 connectivity support and the ST morpho headers provide an easy means of expanding the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields. The STM32 Nucleo-64 board requires no separate probe, as it integrates the STLINK-V2EC debugger/programmer. -
Page 2: Features
32.768 kHz crystal oscillator • Board connectors: ® – ARDUINO Uno V3 expansion connector – ST morpho extension pin headers for full access to all STM32C0 I/Os ® – USB Type-C connector for ST-LINK ® – USB Type-C user connector ®... -
Page 3: Ordering Information
UM3353 Ordering information Ordering information To order the STM32 Nucleo-64 board, refer to Table 1. Additional information is available from the datasheet and reference manual of the target STM32. Table 1. Ordering information Order code Board references Target STM32 NUCLEO-C071RB STM32C071RBT6 •... -
Page 4: Development Environment
The demonstration software, included in the STM32Cube MCU Package corresponding to the on-board microcontroller, is preloaded in the STM32 flash memory for easy demonstration of the device peripherals in standalone mode. The latest versions of the demonstration source code and associated documentation can be downloaded from www.st.com. -
Page 5: Conventions
UM3353 Conventions Conventions Table 3 provides the conventions used for the ON and OFF settings in the present document. Table 3. ON/OFF convention Convention Definition Jumper JPx ON Jumper fitted Jumper JPx OFF Jumper not fitted Jumper JPx [1-2] Jumper fitted between Pin 1 and Pin 2 Solder bridge SBx ON SBx connections closed by 0 Ω... -
Page 6: Quick Start
® 3. To power the board, connect the STM32 Nucleo-64 board to a PC with a USB Type-A or USB Type-C ® USB Type-C through the USB connector (CN1). Once powered on, the PWR green LED (LD3) lights up and the COM LED (LD4) lights up red. -
Page 7: Hardware Layout And Configuration
UM3353 Hardware layout and configuration Hardware layout and configuration The STM32 Nucleo-64 board is designed around the STM32C071RB microcontroller in an LQFP64 package. Figure 2 illustrates the connections between the STM32C071RB microcontroller and its peripherals, such as ® ® STLINK-V2EC, push-buttons, LEDs, USB Type-C... -
Page 8: Pcb Layout
Green power LED (LD3) IDD measurement (JP5) User button Reset button (B1) (B2) ® ARDUINO connector ® ARDUINO connector (CN5) (CN6) STM32 microcontroller (U14) ST morpho pin headers (CN10) ST morpho pin headers (CN7) ARDUINO ® connector (CN9) ARDUINO ® connector (CN8) -
Page 9: Mechanical Drawing
UM3353 Hardware layout and configuration Mechanical drawing Figure 4. Board mechanical drawing (in millimeters) UM3353 - Rev 1 page 9/31... -
Page 10: Embedded Stlink-V2Ec
, STLINK-V2EC requires a dedicated USB driver, available from www.st.com. In case the STM32 Nucleo-64 board is connected to the PC before the driver is installed, some STM32 Nucleo-64 interfaces might be declared as Unknown in the PC device manager. In this case, the user must install the... -
Page 11: Programming And Debugging The On-Board Mcu Using The Mipi ® Debug Connector
6.3.3 ® Programming and debugging the on-board MCU using the MIPI debug connector ® ® To program the STM32 on board, plug in the MIPI debug connector (CN4), as shown in Figure 3. The MIPI ® ® debug connector is an Arm Cortex 10‑pin 1.27 mm‑pitch debug connector with STDC14/MIPI10 footprint... -
Page 12: Power Supply And Power Selection
Hardware layout and configuration Power supply and power selection 6.4.1 External power supply input Several DC power sources can power the STM32 Nucleo-64 board. It is possible to supply the STM32 Nucleo-64 board with any of the following sources: ® •... -
Page 13: Programming/Debugging When The Power Supply Is Not From Stlink-V2Ec (Stlk)
An LDO (U10) is used to provide a fixed 5 V from VIN (7 to 12 V). 5V_EXT is the DC power coming from an external 5 V DC power source from the ST morpho connector (CN7 pin 6). The 5V jumper selection (JP1) must be on [5-6] to select the 5V_EXT power source. -
Page 14: Vdd Idd Measurement
MCO is the 8 MHz clock from the STLINK-V2EC MCU for the STM32 microcontroller • HSE is the 48 MHz oscillator for the STM32 microcontroller. This clock is available depending on the target STM32 series microcontroller used on the Nucleo-64 board. -
Page 15: Reset Sources
R26 ON LEDs Five LEDs are available on the STM32 Nucleo-64 board. The five LEDs are located on the top side of the board. User LED (LD1, LD2) The user green LED (LD1) is connected to the STM32 I/O PA5 (SB1 ON, default configuration) also used for the ®... -
Page 16: Push-Buttons
Never set the PC13 in OUTPUT level HIGH to avoid a shortcut when the user button is pressed. Reset button (B2) The black button connected to NRST is used to reset the STM32 microcontroller. When the button is pressed, the logic state is LOW, otherwise, the logic state is HIGH. 6.10 ®... -
Page 17: Jumper Configuration
(CN4) CN2 and CN3 GND probe CN12 [1-2] 5 V from ST-LINK [3-4] 5 V from VIN 7 to 12 V 5 V power selection [5-6] 5 V from 5V_EXT [7-8] 5 V from 5V_USB... -
Page 18: Solder Bridge Configuration
State Comment The U9 LDO output provides 3.3 V. 3.3 VLDO output The U9 LDO output does not provide 3.3 V. VBAT on STM32 is connected to VDD. PF3/VBAT SB16 PF3/VBAT is connected to the ST morpho connector. The B1 push-button is connected to PC13. -
Page 19: Connectors
Most shields designed for ARDUINO can fit the Nucleo-64 board. Caution: Most of the STM32 microcontroller I/Os are 5 V tolerant, but a few of them are only 3.6 V compatible, while ® ARDUINO Uno V3 is 5 V compatible. Refer to the STM32C0 series databrief and STM32xxxx product datasheets for their I/O structure. -
Page 20: Table 11. Arduino ® Connectors On Nucleo-C071Rb
UM3353 Connectors ® The related pinout for the ARDUINO connector is listed in Table ® Table 11. ARDUINO connectors on NUCLEO-C071RB Connector Pin number Pin name MCU pin Function Reserved for test IOREF I/O reference NRST NRST Reset 3.3 Vinput/output 5 Voutput 7 to 12 V power input ADC_IN0... -
Page 21: St Morpho Connectors (Cn7 And Cn10)
STM32 Nucleo-64 board to an expansion or a prototype/wrapping board placed on top of it. All signals and power pins of the STM32 are available on the two ST morpho connectors. A logic analyzer or a voltmeter can also probe this connector. -
Page 22: Stm32 Nucleo-64 Board Product Information
B01. The second line shows the board serial number used for traceability. Parts marked as “ES” or “E” are not yet qualified and therefore not approved for use in production. ST is not responsible for any consequences resulting from such use. In no event will ST be liable for the customer using any of these engineering samples in production. -
Page 23: Stm32 Nucleo-64 Board Product History
UM3353 STM32 Nucleo-64 board product information STM32 Nucleo-64 board product history Table 13. Product history Order Product Product details Product change description Product limitations code identification MCU: STM32C071RBT6 silicon revision "A" MCU errata sheet: STM32C071x8/xB device NUC071RB$KS1 Initial revision No limitation... -
Page 24: Federal Communications Commission (Fcc) And Ised Canada Compliance
UM3353 Federal Communications Commission (FCC) and ISED Canada Compliance Statements Federal Communications Commission (FCC) and ISED Canada Compliance Statements FCC Compliance Statement Part 15.19 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 25: Ised Compliance Statement
UM3353 Federal Communications Commission (FCC) and ISED Canada Compliance Statements ISED Compliance Statement ISED Canada ICES-003 Compliance Label: CAN ICES-3 (B) / NMB-3 (B). Étiquette de conformité à la NMB-003 d'ISDE Canada : CAN ICES-3 (B) / NMB-3 (B). UM3353 - Rev 1 page 25/31... -
Page 26: Revision History
UM3353 Revision history Table 15. Document revision history Date Revision Changes 09-Aug-2024 Initial release. UM3353 - Rev 1 page 26/31... -
Page 27: Table Of Contents
UM3353 Contents Contents Features................2 Ordering information . - Page 28 STM32 Nucleo-64 board product information ........
-
Page 29: List Of Tables
Pin assignments for the STM32 on the ST morpho connectors ....... -
Page 30: List Of Figures
UM3353 List of figures List of figures Figure 1. NUCLEO-C071RB board top view............1 Figure 2. - Page 31 ST’s terms and conditions of sale in place at the time of order acknowledgment. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of purchasers’...
