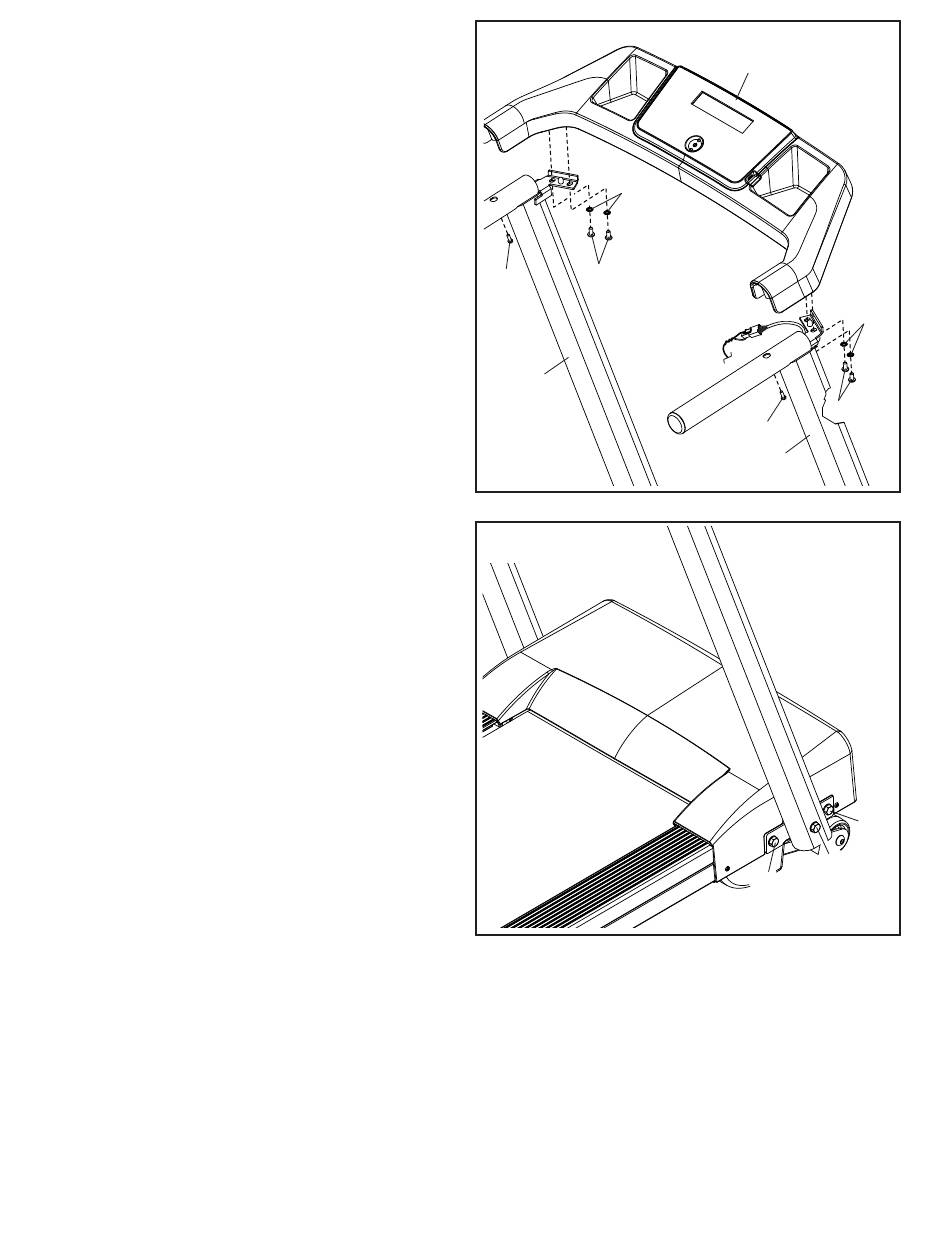

5. Do not pinch the Upright Wire (58) during this
step. Set the console assembly (E) on the Right
and Left Uprights (50, 56).
Attach the console assembly (E) with four
M6 x 12mm Screws (6), four M6 Star Washers
(14), and two M4 x 16mm Screws (4); start all
six Screws by hand, and then tighten them.
6. Firmly tighten the M10 x 25mm Screws (3) and
the M10 x 65mm Screws (1) that you started in
step 4 (only one side is shown).
5
14
6
4
56
6
9
E
14
6
4
50
3
1
3
