EK-Quantum Magnitude User Manual page 6

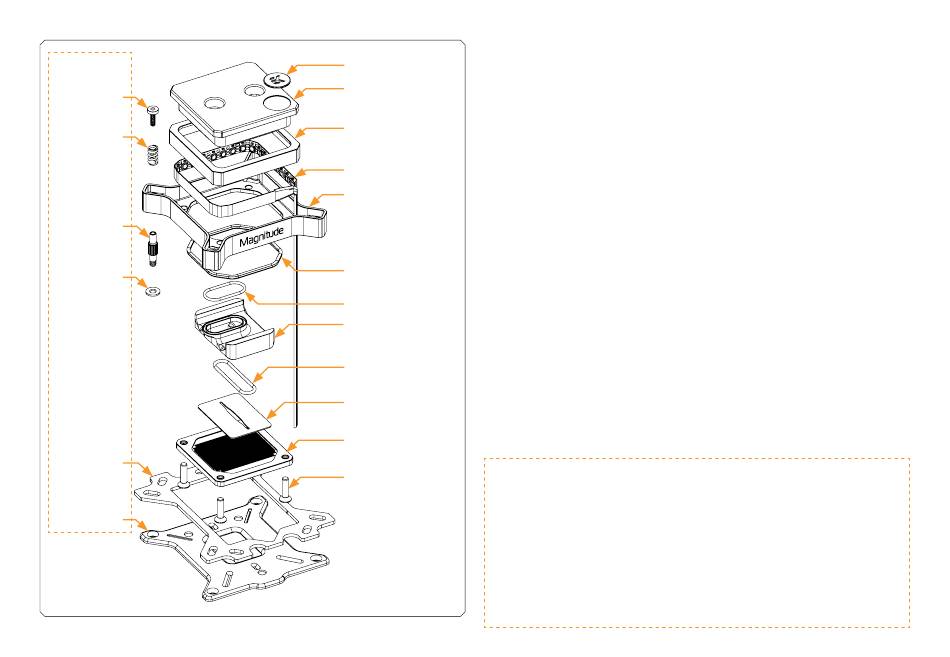

MOUNTING
MECHANISM
Screw
Spring
Standoff
Plastic
Washer
Rubber
Gasket
Backplate
- EK Badge
- Top
EK Badge
- Accent
Top
- LED Strip
- Frame
• Frame - 75x75 (115X)
Accent
• Frame - 80x80 (20XX)
• Frame - 54x90 (AM4)
• Frame 78x78 (1700)
LED Strip
- O-Ring
Frame
- Inlet O-Ring
- Insert
• Insert - 115X
• Insert - 20XX
• Insert - AM4
O-Ring
- Jet Plate O-Ring
- Jet Plate
Inlet O-Ring
• Jet Plate - 0.5P (20XX and AM4 (default))
• Jet Plate - 0.6P (20XX and AM4 (optional))
Insert
• Jet Plate - 0.5C (115X (Coldplate - Flat))
• Jet Plate - 0.6C (115X, 1700 ( default))
• Jet Plate - 0.7C (115X (optional))
Jet Plate O-Ring
- Coldplate
• Coldplate - Flat (115X, 20XX and AM4 (optional))
Jet Plate
• Coldplate - Minor Curve (20XX and AM4)
• Coldplate - Major Curve (115X)
Coldplate
- Screw (x4)
- Screw (x4)
Screw (x4)
- Spring (x4)
- Standoff (x4)
• Standoff - M4 x 21mm (115X and AM4)
• Standoff - M4 x 14mm (20XX)
- Plastic Washer (x4)
- Backplate
• Rubber Gasket (115x,1700,AM4)
• Backplate - 115X
• Backplate - AM4
- 6 -
MOUNTING MECHANISM
