Techly I-WL-REPEATER5 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

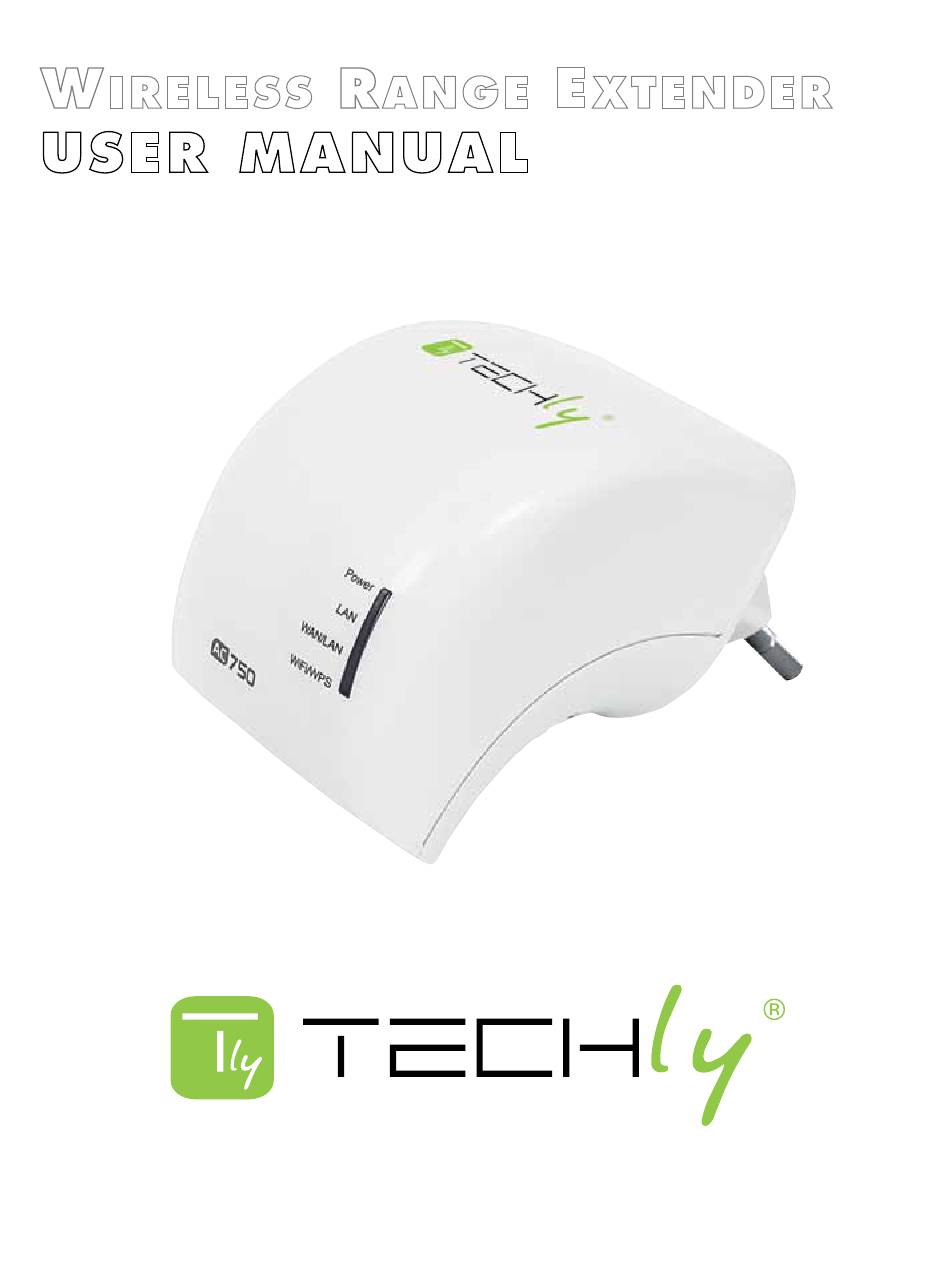

W
R
E
IRELESS
ANGE
XTENDER
USER MANUAL
MODEL 525695
MODEL I-WL-REPEATER5
logo TECHLY: utilizzo quadricromia - positivo
MH-525695-UM-0315-01
CMYK: 0, 0, 0, 100
CMYK: 48, 0, 94, 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I-WL-REPEATER5 and is the answer not in the manual?

Questions and answers

Related Manuals for Techly I-WL-REPEATER5

Summary of Contents for Techly I-WL-REPEATER5

  • Page 1 IRELESS ANGE XTENDER USER MANUAL MODEL 525695 MODEL I-WL-REPEATER5 logo TECHLY: utilizzo quadricromia - positivo MH-525695-UM-0315-01 CMYK: 0, 0, 0, 100 CMYK: 48, 0, 94, 0...

  • Page 2: Table Of Contents

    What Is the T TABLE OF CONTENTS Package Con Introduction ............................... 3 Hardware - H What Is the Techly Wireless AC750 Dual-Band Range Extender? ............3 Device Statu Package Contents ............................ 3 Installation as Wire Hardware - Housing ..........................4...

  • Page 3: Introduction

    XTENDER XTENDER Thank you for purchasing the Techly Wireless AC750 Dual-Band Range Extender. A wireless range extender is Thank you for purchasing the Techly Wireless AC750 Dual-Band Range Extender. A wireless range extender is the ideal solution for boosting your WiFi signal and eliminating dead spots. Better wireless signal strength means the ideal solution for boosting your WiFi signal and eliminating dead spots.

  • Page 4: Hardware - Housing

    ARDWARE OUSING LAN Network Port The wireless range extender is equipped with a high-speed network port, to which you can connect your computer for the initial setup, in case your wireless router does not support WPS — for example Verizon FIOS® wireless routers.

  • Page 5: Device Status Leds

    EVICE TATUS The Techly Wireless AC750 Dual-Band Range Extender is equipped with four LEDs that provide information about the operational status of the device. Status Function Power The device is turned off. The device is connected to a working power outlet and operational.

  • Page 6: Installation As Wireless Range Extender

    Step 3: On your router, locate and press the WPS button. Note: The picture illustrates the location of the WPS button on a Techly wireless router. Other routers may not necessarily have the WPS button in the same location. If you cannot find a WPS button, you should skip this section and continue with the manual installation.
  • Page 7 WPA2 encryption key). Note: If you want to change the SSID of the amplified wireless network of the Techly Wireless AC750 Dual-Band Range Extender, you can do that in the administrator settings with any standard Web browser. See Section 4 –...

  • Page 8: Manual Installation

    ANUAL NSTALLATION If you need to install the Techly Wireless AC750 Dual-Band Range Extender manually, you will need to have the following items before you can begin. You need to know the name of your wireless network (it is also referred to as the SSID).
  • Page 9 Wait while the wireless range extender scans for available networks. This process can take up to a minute. Step 5: The Techly Wireless AC750 Dual-Band Range Extender shows all wireless networks within range. If you live in an apartment building or in a neighborhood with many houses in close proximity, this list can be quite extensive.
  • Page 10 “Techly50RP”) and enjoy the increased signal strength. Below you can see the original wireless network named “Techly”, and the newly created wireless network “Techly24RP”. You can also see that the signal strength of the new network is quite a bit stronger, because it is the range extended network. Click on “Connect” to join the network.

  • Page 11: Installation As Wireless Router

    IRELESS OUTER Although its primary function is to act as a signal booster, or wireless repeater, the Techly Wireless AC750 Dual- Band Range Extender can also be installed as a wireless router. A router is the central communication point in your network.
  • Page 12 DNS server. default gateway and at least one DNS server. Your Internet service provider (or network Note: If you are using the Techly wireless administrator) should have provided you with IP Note: If you are using the Techly wireless...

  • Page 13: Configuration Options

    ONFIGURATION PTIONS In this section, we explain everything there is to know about the additional configuration options of the Techly Wireless AC750 Dual-Band Range Extender. But before we begin, a word of caution: The information presented is quite technical at times and not easily understandable by users without any experience in setting up computers and networks.

  • Page 14: Default Settings For Different Operational Modes

    In order to access the Web on to the being extended. admin UI, open the address Operation mode: Factory default state. Not configured. wireless http://techly.repeater in your web browser. network and will Alternatively, you can check your wireless Mode DHCP Device IP...
  • Page 15 the main DHCP wireless range extender has received from the server; i.e., the wireless router. wireless router in your network. Operation mode: Device is set up as a wireless access point. Operation mode: Device is set up as a wireless access point. Mode DHCP Server Device IP...

  • Page 16: How-Tos

    Note: The Techly Wireless AC750 Dual-Band Range Extender can act as a regular access point, but it can Range fulfill the role of a wireless router, once the mode selector it can switch is set to router mode.
  • Page 17   This screen contains the main configuration options for the wireless access point mode. SSID: The service set identifier (SSID) is used as a unique identifier for a wireless LAN. Itʼs commonly called the network name. Here you enter the name you wish to use for this wireless Techly24RP network.

  • Page 18: Changing The Ip Address Of The Wireless Range Extender

    4.3.3 Changing the IP address of the wireless range extender 4.3.3 Changing the IP address of the wireless range extender 4.3.3 Changing the IP address of the wireless range extender 4.3.3 Changing the IP address of the wireless range extender The LAN interface setup is an optional part of the The LAN interface setup is an optional part of the The LAN interface setup is an optional part of the...

  • Page 19: Using The Wireless Schedule Function

    (see Section 4.3.2) for your children and, perhaps, their friends. You also have a password for the Techly wireless access point. So if they want to connect to the Internet, it has to be done via the WPA2 secured wireless router in your home providing around-the-clock wireless and Internet access.

  • Page 20: Changing Wireless Security

    2.4 GHz and the 5 GHz (AC) are secured. 4.3.6 Saving and reloading settings Your Techly Wireless AC750 Dual-Band Range Extender 4.3.6 Saving and reloading settings allows you to save the configuration to a file that you can Your Techly Wireless AC750 Dual-Band Range Extender reload at a later time.

  • Page 21: Reset The Device To Factory Default Settings

    4.3.7 Reset the device to factory default settings 4.3.7 Reset the device to factory default settings 4.3.7 Reset the device to factory default settings 4.3.7 Reset the device to factory default settings If you want to restore the factory default settings, you can do this two ways. If you want to restore the factory default settings, you can do this two ways.

  • Page 22: Time Settings

    4.3.8 Time Settings In order to use the schedule function (see Section 4.3.4), you need to make sure that the wireless range extender is set to the correct date and time. Itʼs quite easy to do that. First, click on “Time Zone settings”. Click on “Copy computer time”, then click “Apply.”...

  • Page 23: Upgrade The Firmware

    4.3.10 Upgrade the firmware From time to time, there may be new firmware available for the Techly Wireless AC750 Dual-Band Range From time to time, there may be new firmware available for the Techly Wireless AC750 Dual-Band Range Extender. New firmware can be downloaded from the Techly website (www.techly.com) by searching for the Extender.

  • Page 24: Appendix A: Changing The Ip Address Of A Network Adapter

    ETWORK DAPTER The Techly Wireless AC750 Dual-Band Range Extender HD operates on the IP address 192.168.2.2. For your computer to access the advanced configuration interface, the IP address of the network adapter in your computer has to be in the same range; e.g., 192.168.2.50. Refer to the instructions that came with your computer for information on how to change the IP address on the network adapter in your computer for any operating system that is not explained in this user manual.
  • Page 25 5. Click “Change adapter settings.” 6. Right-click your network adapter and select “Properties.” 7. Select “Internet Protocol Version 4” from the list and click “Properties.” 8. Select “Internet Protocol Version 4” from the list and click “Properties.” 9. Enter the information as shown below, then click “OK” to save the settings. - 25 -...

  • Page 26: Windows 7

    5.2 W 5.2 W INDOWS INDOWS 1. Open the Network and Sharing Center. 1. Open the Network and Sharing Center. 2. Click on “Change adapter settings.” 2. Click on “Change adapter settings.” 3. Right-click your network adapter and select “Properties.” 3.
  • Page 27 5.3 W INDOWS 1. Double-click the “Network Connections” icon in the control panel. - 26 - 2. Right-click the connection (e.g., Local Area Connection) and select “Properties.” 3. Select “Internet Protocol (TCP/IP)” from the list and click “Properties.” 2. Right-click the connection (e.g., Local Area Connection) and select “Properties.” 3.

  • Page 28: Mac Os X

    5.4 M OS X 1. Open the System Preferences page. 2. In the Internet & Network section, click the Network icon. 3. Select either Built-in Ethernet or AirPort, depending on how you connect to the wireless range extender, then click “Configure… .” 4.

  • Page 29: Appendix B: Troubleshooting

    B: T PPENDIX ROUBLESHOOTING Symptom How to address The Power LED is not lit. Make sure that the power switch on the wireless range extender is properly inserted into the power outlet. In addition, check and make sure that the power outlet provides power. The LAN or WAN/LAN LED Check the network connection between the wireless range extender does not light up.

  • Page 30: Appendix C: Specifications

    7. A C: S PPENDIX PECIFICATIONS Standards • IEEE 802.11b (11 Mbps Wireless LAN) • IEEE 802.11g (54 Mbps Wireless LAN) • IEEE 802.11ac (433 Mbps Wireless LAN) • IEEE 802.11b (11 Mbps Wireless LAN) • IEEE 802.11g (54 Mbps Wireless LAN) •...

  • Page 31: Appendix D: Warranty Information

    D: W PPENDIX ARRANTY NFORMATION Deutsch Garantieinformationen finden Sie hier unter intellinetnetwork.com/warranty. English For warranty information, go to intellinetnetwork.com/warranty. Español Si desea obtener información sobre la garantía, visite intellinetnetwork.com/warranty. Français Pour consulter les informations sur la garantie, rendezvous à lʼadresse intellinetnetwork.com/warranty. Italiano Per informazioni sulla garanzia, accedere a intellinetnetwork.com/warranty.
  • Page 32 TECHLY: utilizzo quadricromia - positivo CMYK: 0, 0, 0, 100 CMYK: 48, 0, 94, 0 www.techly.com © IC Intracom. All rights reserved. Intellinet is a trademark of IC Intracom, registered in the U.S. and other countries. - 28 -...
