Step 4:

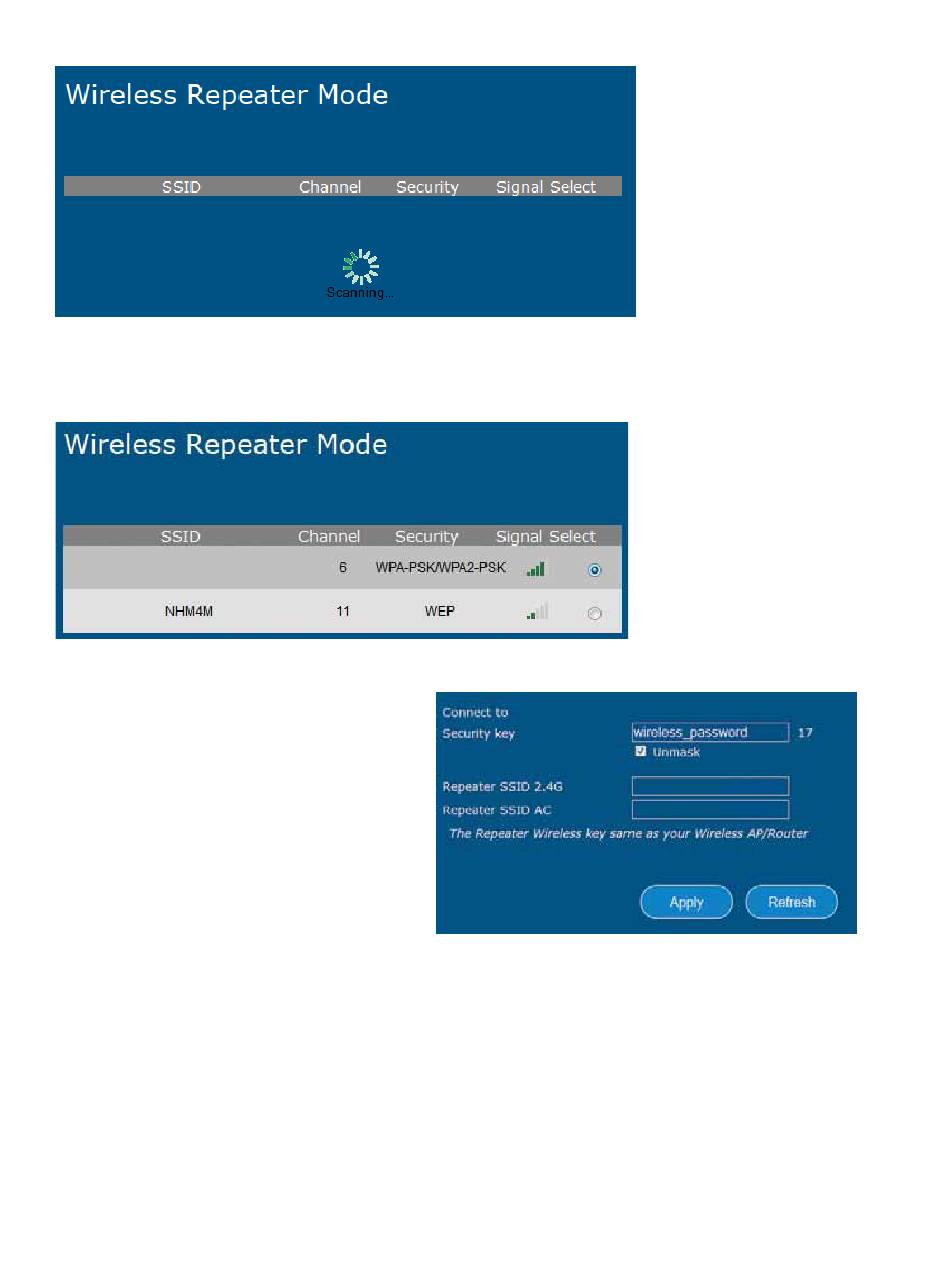

Wait while the wireless range extender scans for available networks. This process can take up to a minute.
Step 5:
The Techly Wireless AC750 Dual-Band Range Extender shows all wireless networks within range. If you live in an
apartment building or in a neighborhood with many houses in close proximity, this list can be quite extensive.
Once you have located your wireless home network, select it.
Techly
Step 6:
On this screen, you need to type in the wireless
encryption key that is required to connect to your
wireless home network. You neednʼt worry about
selecting the correct encryption type, authentication
mode or cipher suite: The range extender fills that
out for you automatically. The wireless password
must be entered in the "Security key" field. Be sure
to type the password correctly. You can activate the
"unmask" option to see the password in clear text.
In the two fields below you can type in the SSID
(wireless network name) of the 2.4 GHz and 5 GHz
(AC) network. You can type in the same name as
your wireless network at home, i.e., "Techly", but it
may be a g good idea to modify the SSID, so that
you can quickly see, which wireless network is from your home network, and which one is the repeater network. In
the example shown here, we append "24RP" and "50RP" respectively, to differentiate the networks.
Click "Apply" when done.
- 9 -
Techly
Techly24RP
Techly50RP
