Device Status Leds - Techly I-WL-REPEATER5 User Manual

1.4 D S
EVICE TATUS

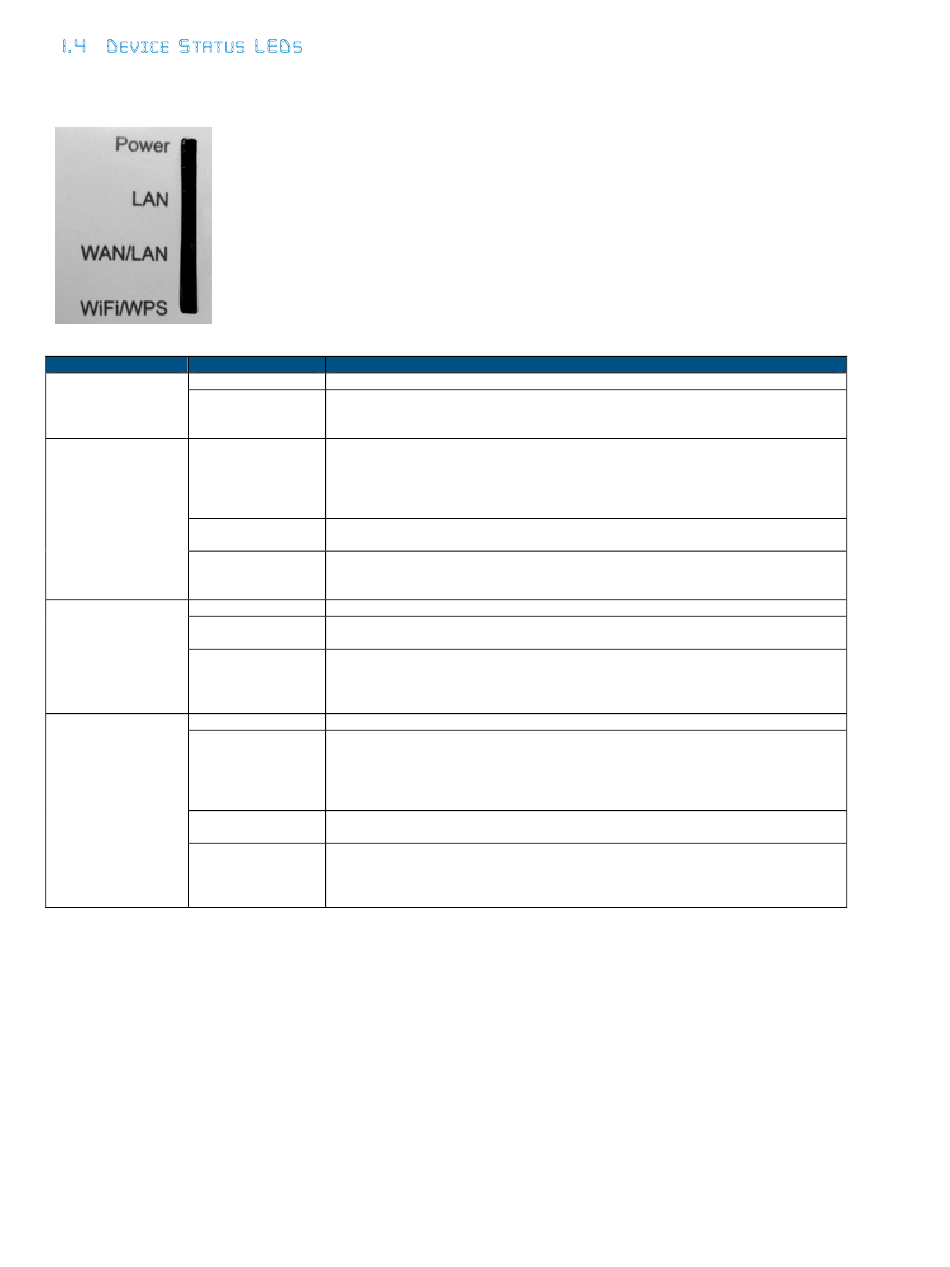

The Techly Wireless AC750 Dual-Band Range Extender is equipped with four LEDs that provide information about
the operational status of the device.
LED Status
Power Off
On
LAN Off
On
Flashing
WAN/LAN Off
On
Flashing
WiFi/WPS Off
On
Flashing rapidly
Flashing slowly
LED
S
Function
The device is turned off.
The device is connected to a working power outlet and operational.
Note: The range extender does not have a power switch. It will turn on
as soon as you plug it into a power outlet.
No device is connected to the LAN port.
Note: If a computer or laptop is connected to the LAN port but the LAN
LED remains off, the problem could be one of the following:
a) The network cable used for the connection is faulty.
b) The network adapter in the computer or laptop is disabled.
A device is connected to the LAN port and an active link has been
established.
A device is connected to the LAN port, an active link has been
established and data is being transmitted. This is the normal
operational state if a computer or laptop is connected to the LAN port.
No device is connected to the WAN/LAN port.
A device is connected to the WAN/LAN port and an active link has
been established.
A device is connected to the WAN/LAN port, an active link has been
established and data is being transmitted. This is the normal
operational state if a computer or laptop is connected to the port, or if
you have connected the WAN/LAN port to your Internet modem.
The wireless LAN interface is disabled in the system settings.
The wireless LAN interface is enabled. The LED is solid, meaning it
does not flash, if no data traffic is transmitted through the wireless LAN
interface.
Note: That is the default state out of the box, if the range extender has
not been connected to a wireless network.
The wireless LAN interface is enabled and data is passed through the
wireless LAN interface.
The WPS button has been pressed for five seconds. The slow flashing
indicates that a connection attempt using WPS is currently being
performed. After a short while, the LED will stay lit, only flashing briefly
and radidly to indicate network traffic.
