Step 4:

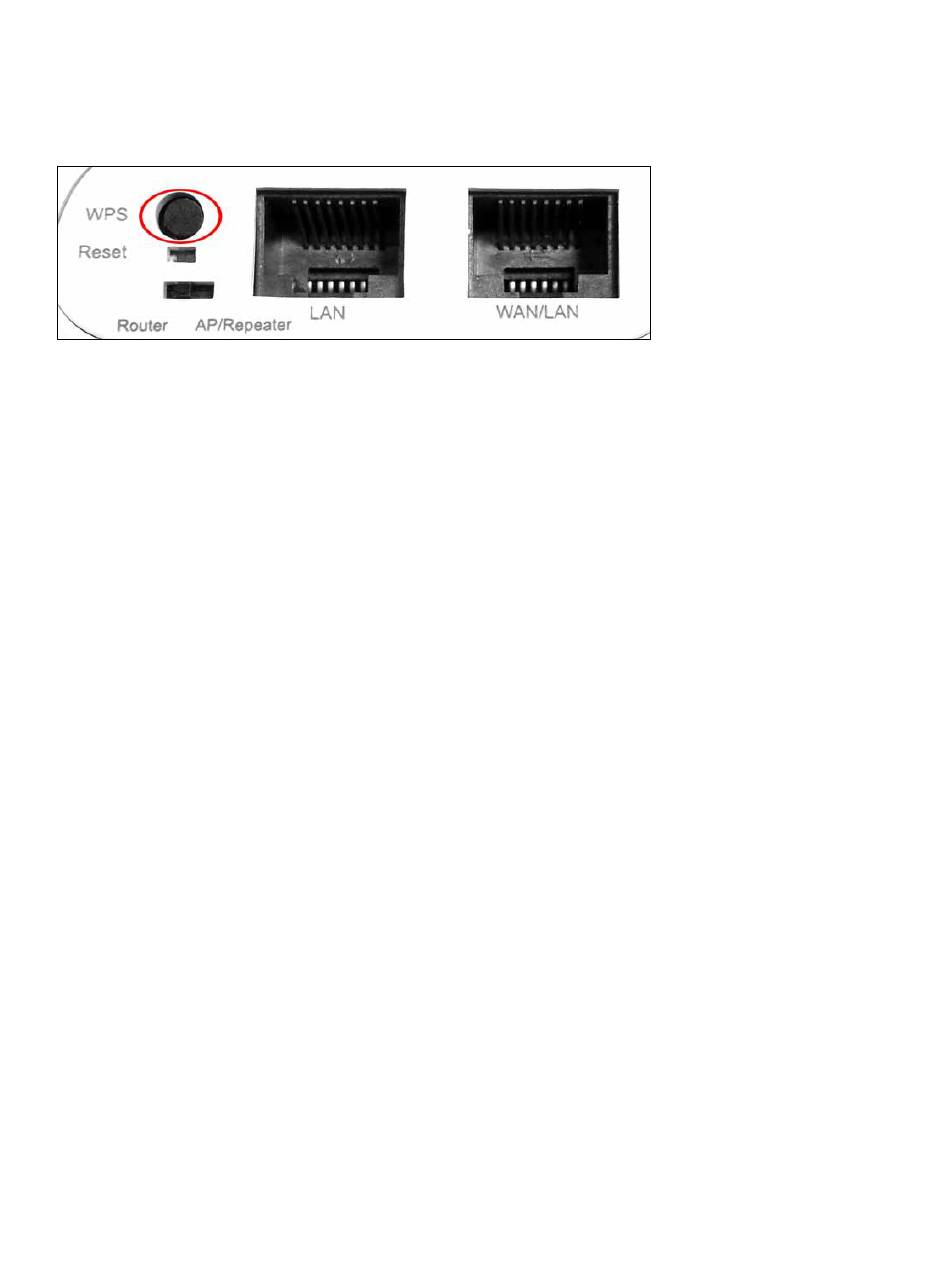

Within two minutes of performing Step 3, press the WPS button on the wireless range extender for five seconds.
This action will trigger the WPS connection process. It may take up to a minute to complete. While the connection
is being established, the WiFi/WPS LED will flash. Once the process is completed, the WiFi/WPS LED turns on
and remains on.
Step 5:
User a wireless device to connect to your wireless network. You need to connect to the same wireless network as
before because the Techly Wireless AC750 Dual-Band Range Extender re-broadcasts the existing wireless
network, including the existing wireless network name (called SSID) and the existing wireless security (for
instance, the WPA2 encryption key).
Note: If you want to change the SSID of the amplified wireless network of the Techly Wireless AC750 Dual-Band
Range Extender, you can do that in the administrator settings with any standard Web browser. See Section 4 –
"Configuration Options" for further details. Should you run into problems with the WPS Push Button installation
method, even though your wireless router supports WPS, proceed with setting up the range extender manually, as
described in the next section. Users of the Verizon FIOS® Internet service should note that, while the wireless
router provided by the ISP does indeed feature a WPS button on the front of the housing, it is disabled in the
firmware. As of January 2015, the WPS feature cannot be enabled.
